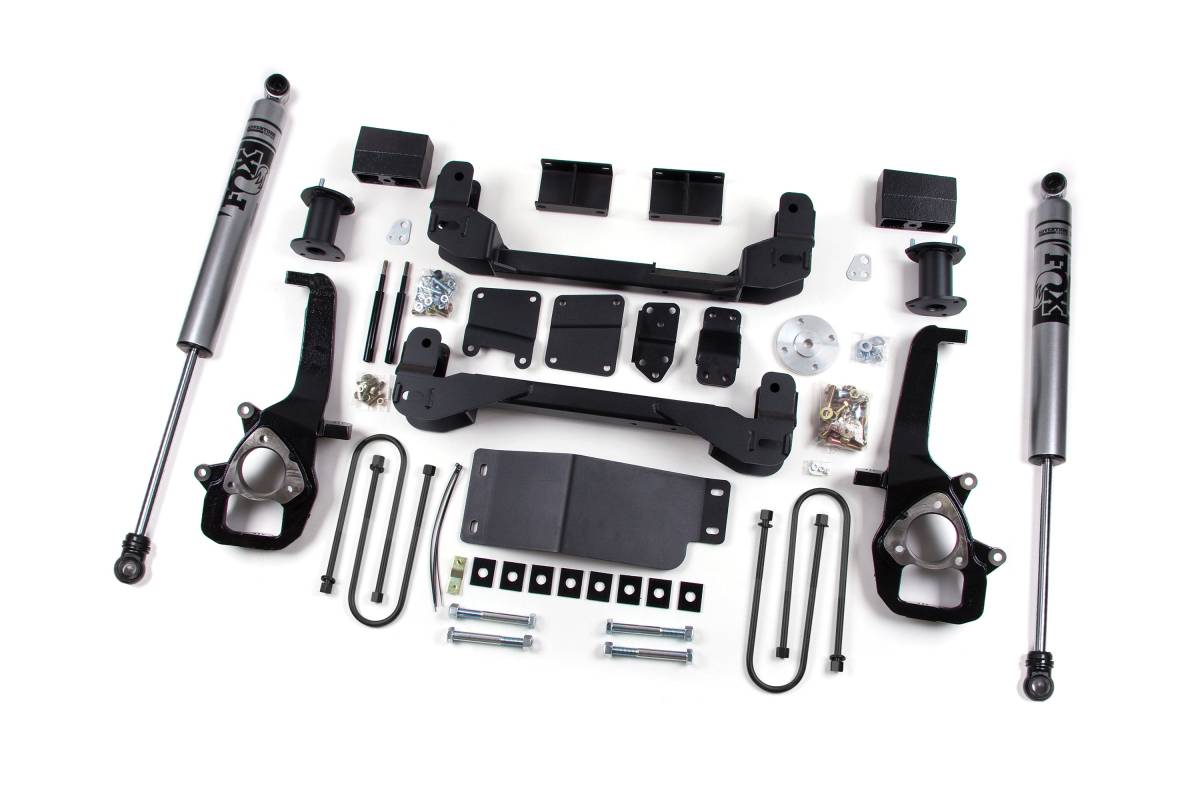

This kit is configured with FOX Adventure Series rear shocks. FOX Adventure Series shocks feature a nitrogen-charged twin-tube design with 10-stage velocity-sensitive valving, dual-welded ends for increased strength, self-lubricating seals, and a black powder coat finish on a 2-inch diameter steel body.
Overview

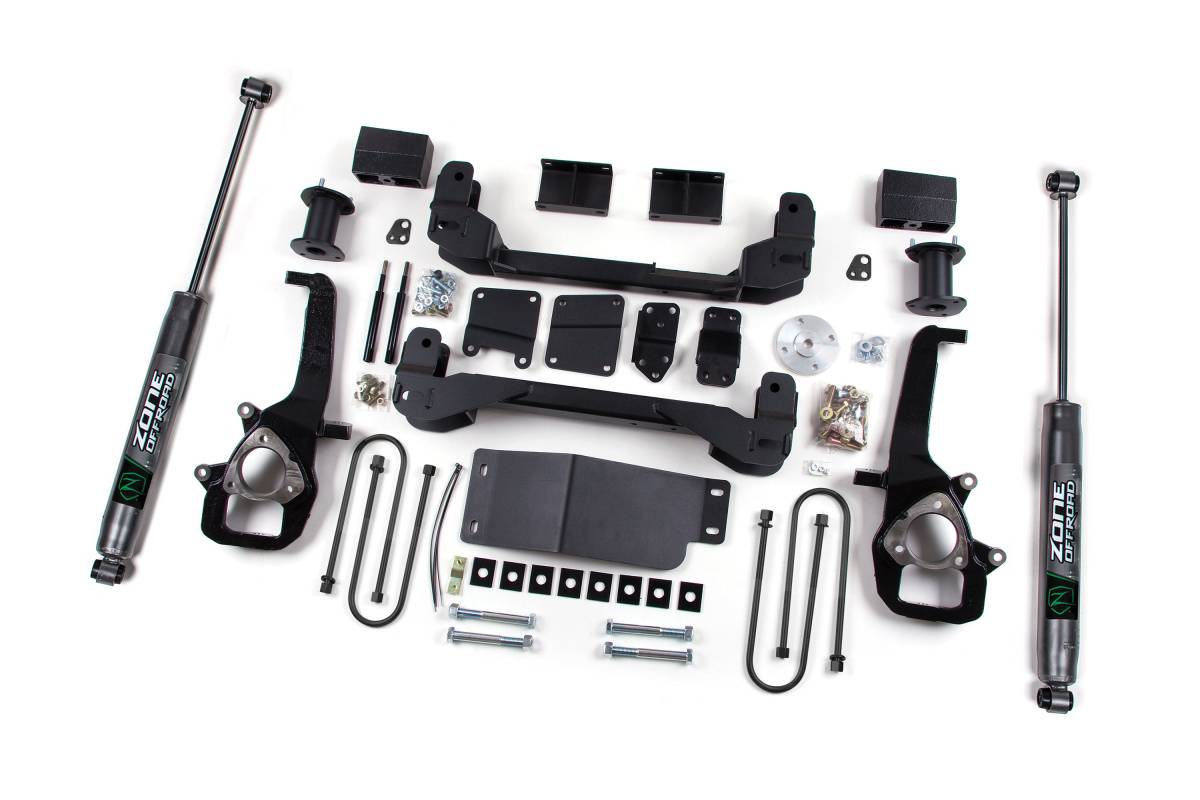

This 6-inch lift kit from Zone Offroad is designed for the 2006–2008 Dodge Ram 1500 4WD. The kit includes everything needed to achieve the lift, from high-strength crossmembers and ductile iron steering knuckles to strut spacers and a rear block kit to level the stance. The kit provides clearance for up to 37-inch tires.
Features
- High-strength crossmembers to correct lower control arm positioning
- Ductile iron steering knuckles to correct steering geometry and maintain ESC system compatibility
- Top-mounted strut spacers to provide lift and install easily
- Differential relocation brackets to correct CV operating angle
- Differential skid plate for improved off-road protection
- Rear lift blocks and U-bolts to lift and level the stance
- Sway bar extension, driveshaft spacer, and alignment cam bolts to correct operating angles
Specifications
- Front Lift Method: Strut Spacer
- Front Lift Height: 6 inches
- Rear Lift Method: Block
- Rear Lift Height: 4 inches
- Shocks Included: Yes
Installation
- Estimated Installation Time: 8 hours
- Installation Difficulty: Moderate
Important Notes
- Not recommended for AWD models.
- TRX models require removal of the lower skid plate, which is replaced in this lift system.
- Will not fit MegaCab models.
