Configured with Nitro Series shocks featuring a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends for increased strength, self-lubricating seals, black powder coat finish, and a 2-inch diameter steel body.
Overview

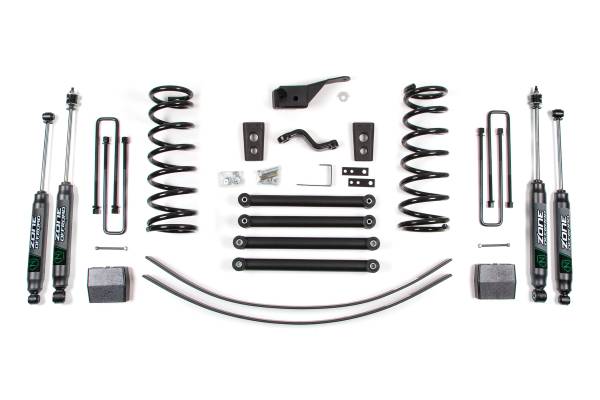

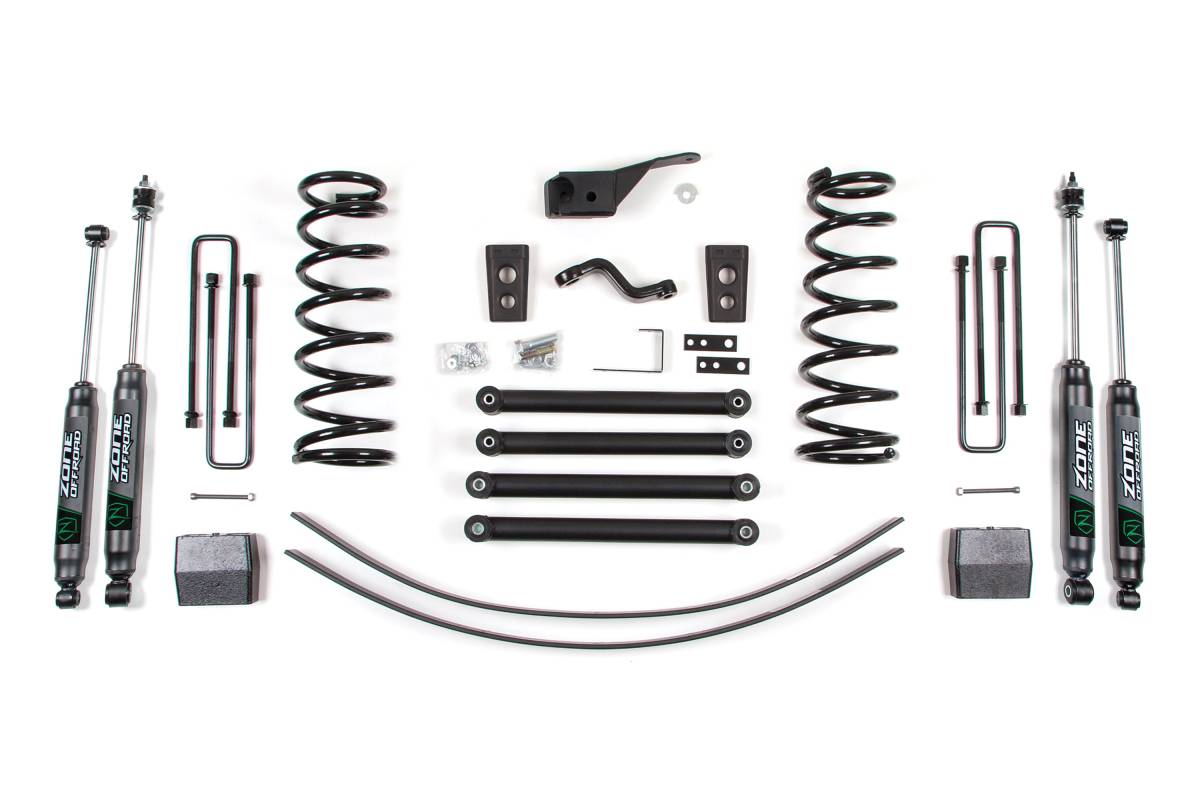

This 5-inch Lift Kit is designed to raise your 2000–2002 Dodge/Ram 2500/3500 4WD truck, providing clearance for tires up to 35 inches. The 100% bolt-on design includes all necessary components to complete the lift, from front coil springs to rear block and add-a-leaf, along with corrected control arms, track bar bracket, and steering components.
Features
- 100% bolt-on design for easy installation
- Bump stop extensions properly limit up-travel, protecting your vehicle
- Heavy-duty upper and lower control arms improve strength and articulation while correcting caster
- Heavy-duty front track bar bracket correctly positions front axle under vehicle
- Steering components included to ensure smooth post-installation operation of steering system and factory-consistent vehicle handling characteristics
Specifications
- Front Lift Method: Coil Spring
- Front Lift Height: 5"
- Rear Lift Method: Block & Add-A-Leaf
- Rear Lift Height: 5"
- Shocks Included: Yes
Installation
- Estimated Installation Time: 5.5 hours
- Installation Difficulty: Moderately Easy
Important Notes
- If truck is equipped with a proportioning valve, a relocation bracket kit is required. Add in configuration / checkout.
- Dodge Rams were manufactured with two different front sway bar link setups. Some were mounted ABOVE the axle bracket and some BELOW. If your model's sway bar links are above the axle bracket, a sway bar link kit is required. Add in configuration / checkout.
- If your vehicle is equipped with a top mounted overload/helper spring, 4 longer U-bolts may be required.
- Factory block is replaced with 5" block and add-a-leaf combo to obtain a level stance.
- If your vehicle is equipped with a factory rear sway bar, a rear sway bar link kit is recommended. Add in configuration / checkout.
- Factory wheels fit when paired with factory / original equipment tire size.
- Will NOT fit models built before February 9, 1994 due to track bar stud size.
- Steering Stabilizer Required! Due to the factory drag link flip when installing this kit, the factory steering stabilizer cannot be reinstalled.
- Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.
