8 Inch Lift Kit | Dodge Ram 2500/3500 (2003-2007) 4WD Diesel | 4 Inch Rear Axle | w/ FOX 2.0 Adventure Series Shocks | Zone Offroad

Configured for trucks with a 4 inch rear axle diameter. Includes FOX 2.0 Adventure Series shocks featuring nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends, self-lubricating seals, black powder coat finish, and a 2-inch diameter steel body.

Overview

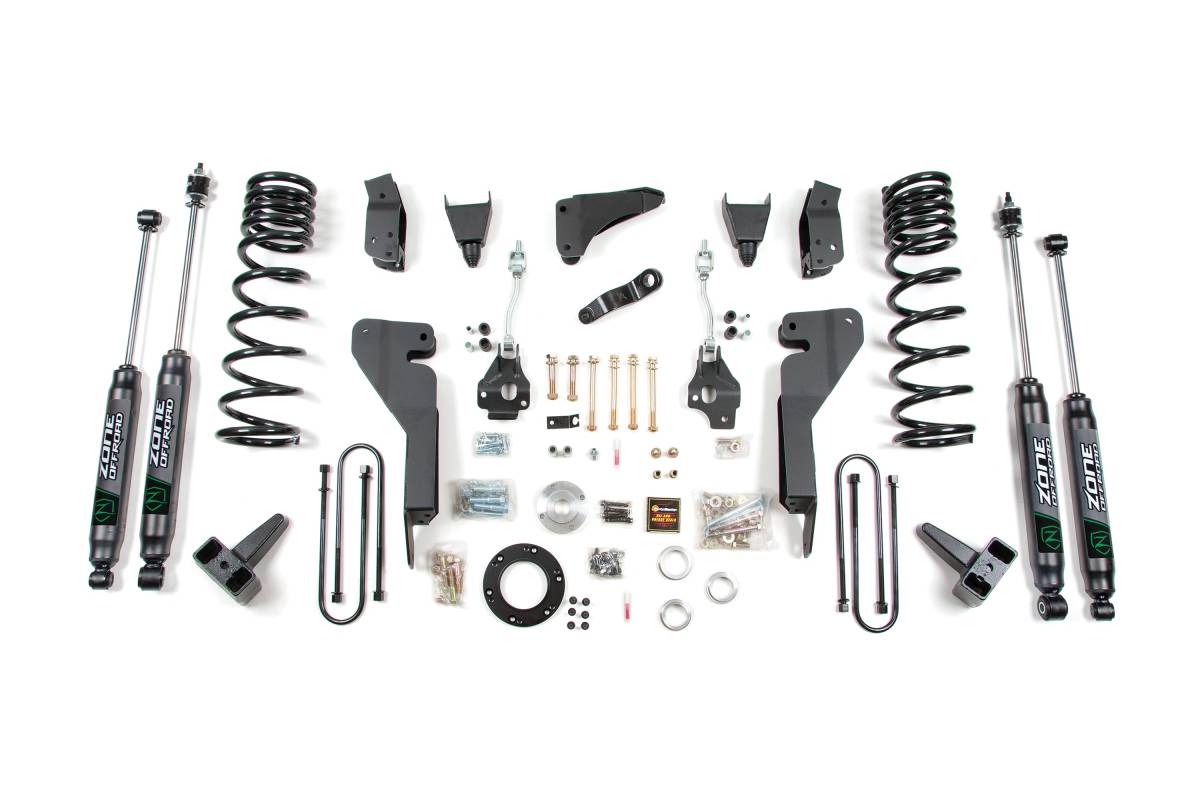

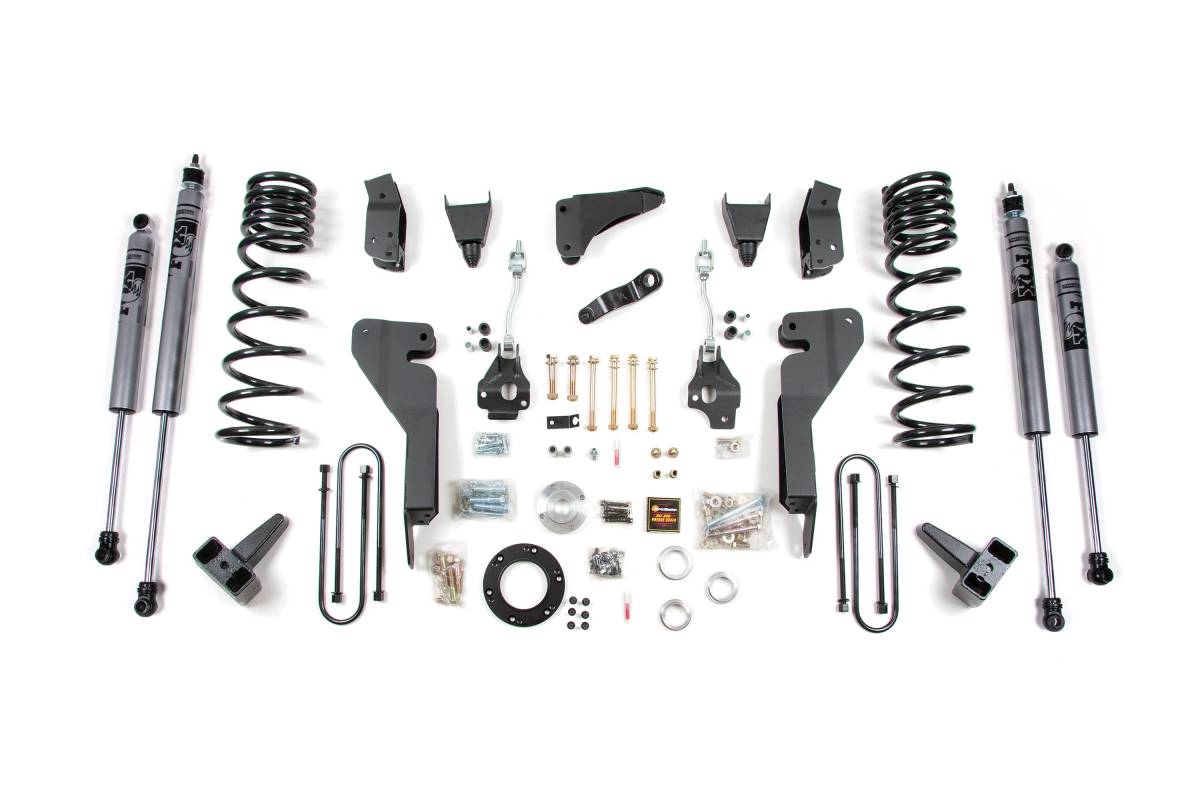

This coil spring and cast block 8-inch lift kit is designed for 2003–2007 Dodge/Ram 2500 and 3500 diesel 4WD trucks. It provides clearance for up to 38-inch tires while maintaining vehicle control. The kit offers an easy and affordable path to increased lift height.

Features

• 100% bolt-on design for easy installation
• High-strength control arm relocation brackets correct suspension geometry and add rigidity

Specifications

• Front Lift Method: Coil Spring
• Front Lift Height: 8 inches
• Rear Lift Method: Block
• Rear Lift Height: 5 inches
• Shocks Included: Yes

Installation

• Estimated Time: 7 hours
• Difficulty: Moderate

Important Notes

• If the steering gear box has been changed and the sector shaft diameter measures approximately 1-1/2"–1-5/8", ZOND8404 will also be required with this kit.
• This truck was produced using rear axles of differing diameters; measure the diameter of your rear axle to ensure proper kit selection in configuration.
• Diesels Only! Lift springs are designed for heavier diesel models only. Using lift springs with lighter gas models may cause excessive lift and is NOT recommended.
• Although rare, if you experience front drive-line vibration, install the optional transfer case indexing ring.
• Factory wheels fit when paired with factory/original equipment tire size.
• This kit is not designed for dually models, but may be easily adapted to accommodate your truck. Please contact customer support for assistance.
• Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift drive-line angles and avoid/eliminate driveshaft vibration.
• Adding larger-than-stock wheels? Add front bumper spacers to your kit for additional clearance, as some wheel/tire combinations may not fully clear the bumper's stock location.
