4 Inch Lift Kit | 2009-2011 Dodge Ram 1500 4WD | w/ FOX Adventure Series Shocks | Zone Offroad

Configured with FOX Adventure Series shocks. Features a nitrogen-charged twin-tube design with 10-stage velocity-sensitive valving, dual-welded ends for increased strength, self-lubricating seals, and a black powder coat finish on a 2-inch diameter steel body.

Overview

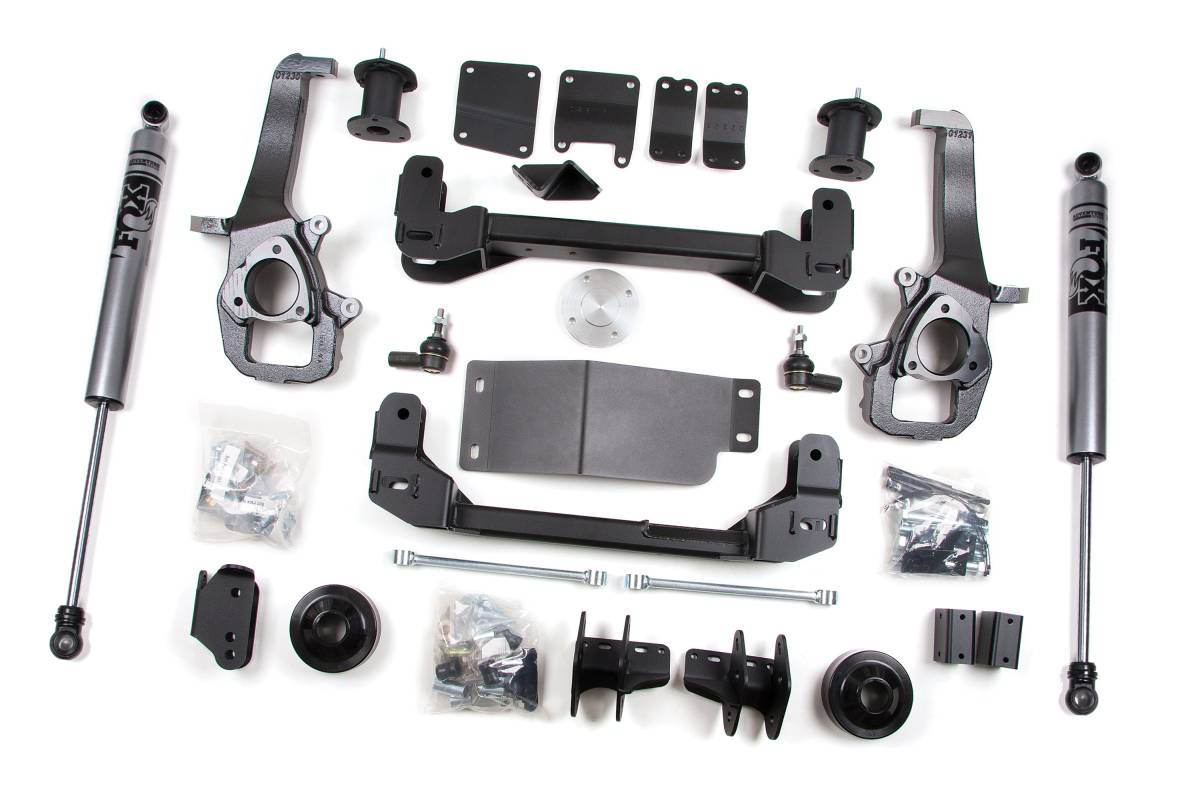

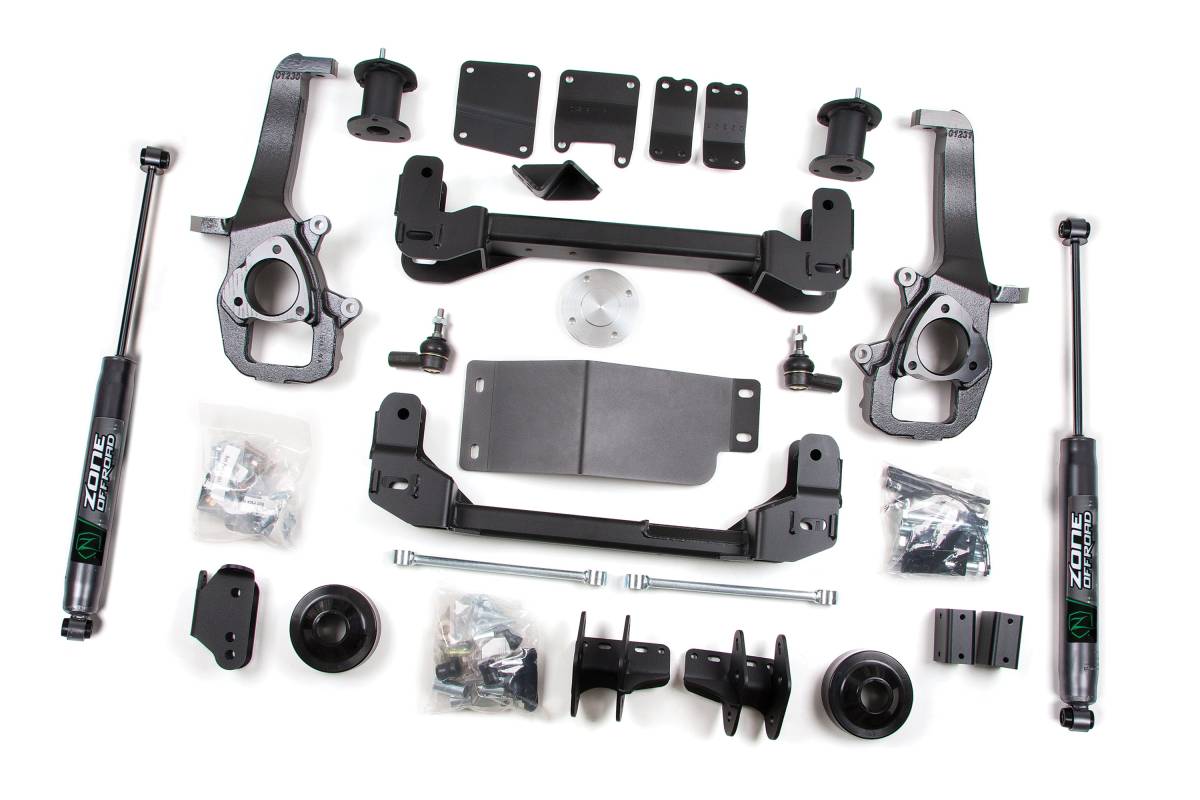

Raise your Ram 1500 with this 4-inch lift kit from Zone Offroad. The kit includes everything needed — from high-strength crossmembers and steering knuckles to strut spacers and rear coil spacers — to lift and level the stance of your truck. Clearance for up to 35-inch tires is achievable with this kit.

Features

• Heavy-duty differential skid plate improves off-road protection
• High-strength, CNC machined replacement steering knuckles improve strength while correcting steering angles
• Maintains factory ride quality and handling characteristics
• Rear 2-inch spacers or 3-inch coil springs available to achieve desired stance (see Important Notes)
• Top-mount strut spacers set ride height, maintain ride quality, and are easy to install

Specifications

• Front Lift Method: Cross Member & Strut Spacer
• Front Lift Height: 4"
• Rear Lift Method: Coil Spring
• Rear Lift Height: 4"
• Shocks Included: Yes

Installation

• Estimated Installation Time: 9 hours
• Installation Difficulty: Moderate

Important Notes

Does NOT work with all wheel drive (AWD) models. These trucks are typically between 1" and 3" tail high from the factory. Please measure your truck's factory front-to-back ride height and order the rear lift height to achieve the desired stance. If closer to 1" tail high from the factory, order the 5" rear coils for a more level stance. If closer to 3" tail high from the factory, order the 3" rear coils for a more level stance. Not recommended for AWD models.
