Configured with a 2 Inch Rear Block Kit for a level to tail-high appearance, paired with Nitro Series shocks featuring an internal floating piston (IFP) monotube design, a large 5/8-inch hard chrome-plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving, and a long-lasting silver-coated finish.
Overview

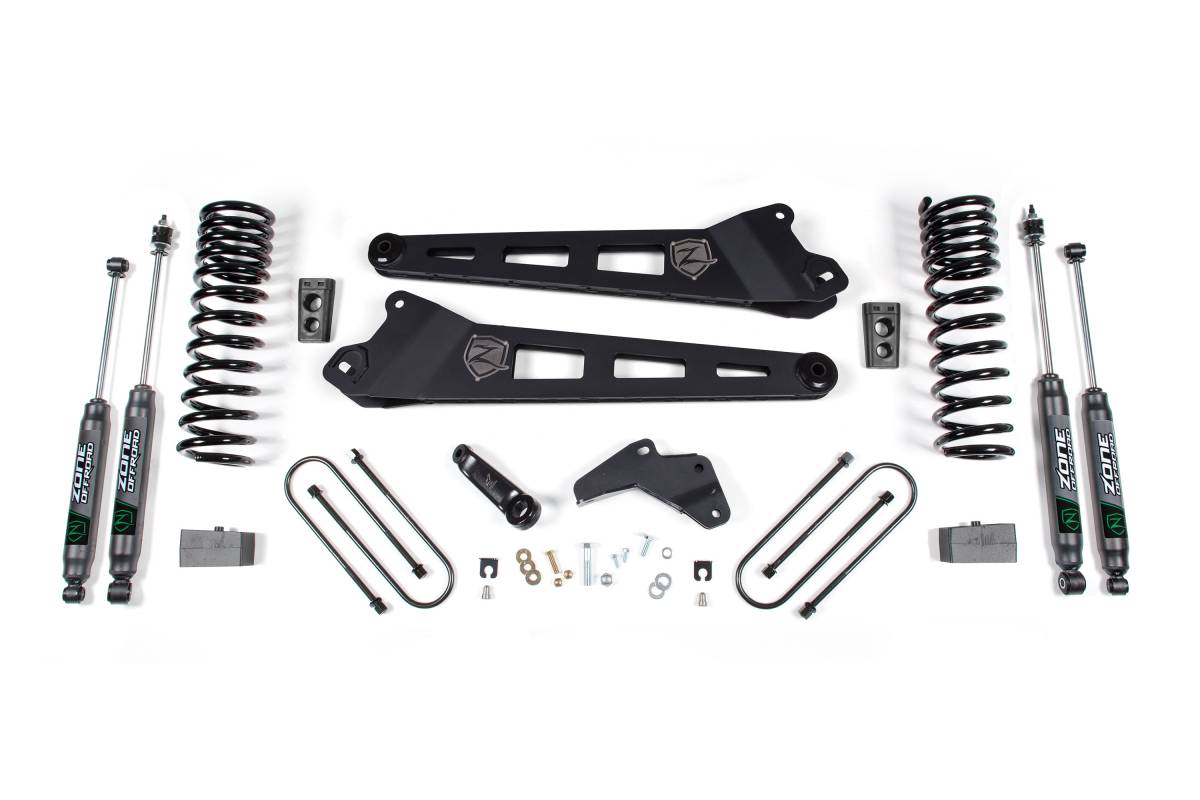

This 4-inch lift kit from Zone Offroad is designed for the 2013–2018 Ram 3500 4WD (6.4L gas engine). The kit includes everything needed to lift and level the truck, from full-length coil springs and heavy-duty radius arms to steering correction hardware and rear lift components, providing clearance for up to 37-inch tires.
Features
- Progressive rate front coil springs to improve ride quality and off-road performance
- HD radius arm corrects caster angle while maximizing ground clearance
- Forged pitman arm and track bar relocation bracket to correct steering angles and recenter the front axle
- Extended bump stops, sway bar relocation, and brake line relocation to maintain factory-like operating angles
- Replacement rear lift blocks and U-bolts to lift and level the stance
Specifications
- Front Lift Method: Coil Spring & Radius Arm
- Front Lift Height: 4 inches
- Rear Lift Method: Block
- Rear Lift Height: 2 inches (2 Inch Block Kit) or 3 inches (3 Inch Block Kit)
- Shocks Included: Yes
Installation
- Estimated Installation Time: 6 hours
- Installation Difficulty: Moderate
Important Notes
- Fits trucks equipped with the 6.4L gas engine.
- Front drive-line vibration may occur at speeds over 35 mph when in 4WD. If this occurs, install the appropriate optional t-case indexing kit. Models with a 6-bolt transfer case use part #D5623. Models with an 8-bolt transfer case use part #D5813.
- Does NOT work for models with factory rear airbag suspension.
- Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid/eliminate driveshaft vibration.
- 6.4L Gas models will require exhaust modification to clear the front driveshaft.
- 5.7L Gas models may require modification.
- Factory wheels fit when paired with factory/original equipment tire size.
