Configured with FOX 2.0 Adventure Series IFP shocks. These shocks feature an internal floating piston (IFP) monotube design, a large 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving for maximum performance, and a long-lasting silver coated finish.
Overview

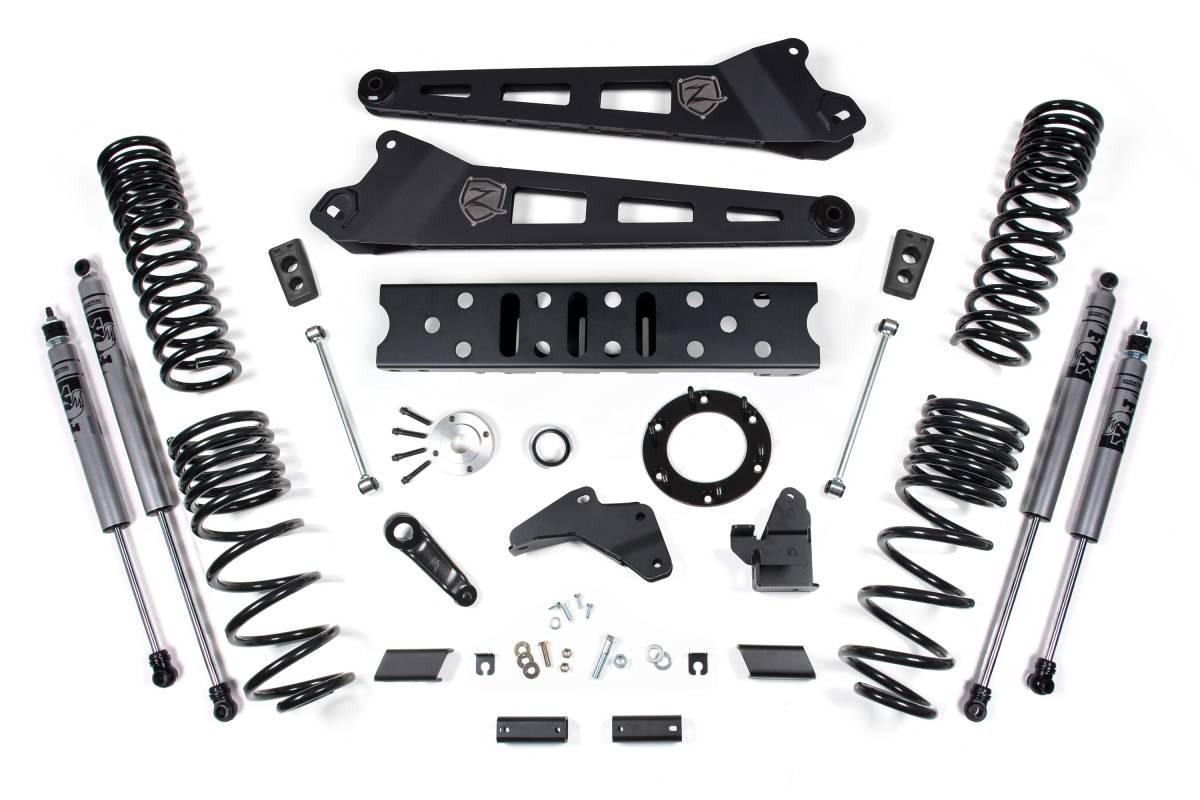

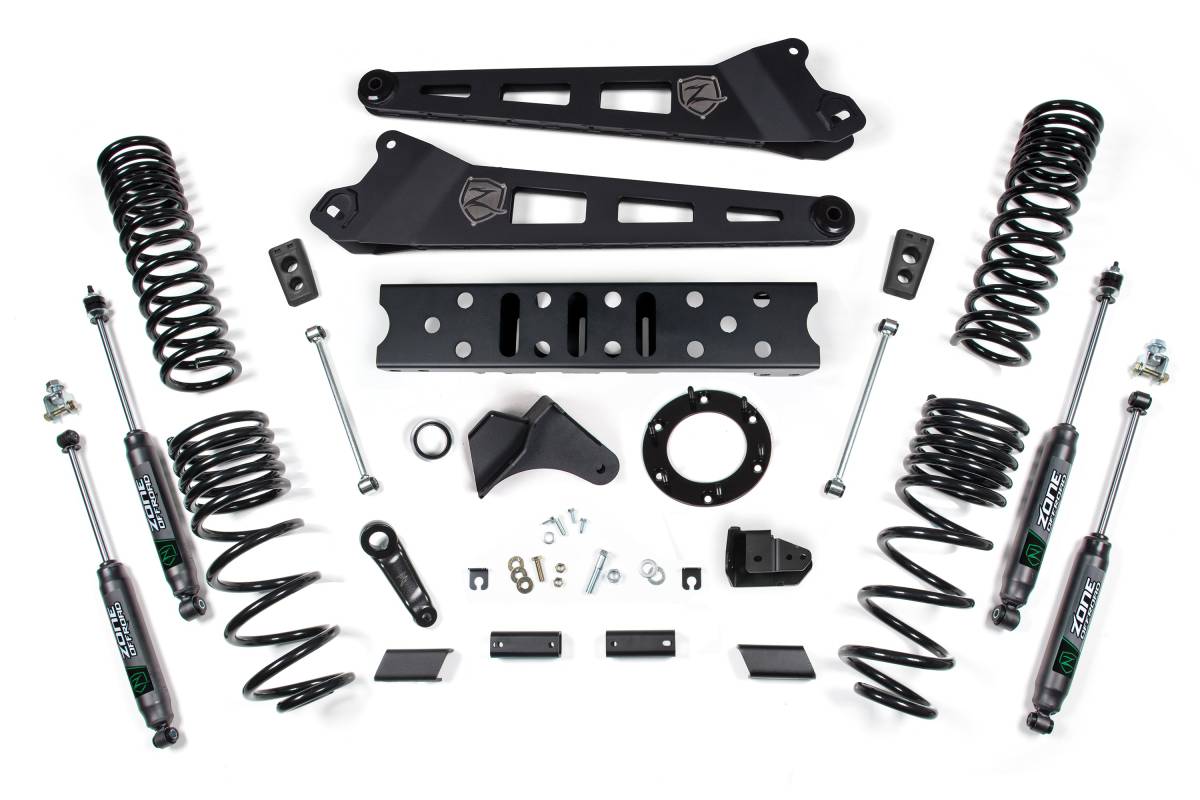

This 5.5-inch radius arm lift kit from Zone Offroad is designed for the Ram 2500 (2019–2026) 4WD gas models. The kit includes everything needed for the install, from full-length coil springs and heavy-duty radius arms to steering correction components and rear lift to level the truck's stance. The kit provides clearance for up to 37-inch tires.
Features
- High-strength progressive rate front coil springs for improved ride quality on any terrain
- Heavy-duty 1/4-inch steel, laser cut, internally gusseted radius arms for added strength, increased ground clearance, and caster correction
- HD track bar relocation bracket to correctly position the front axle under the truck
- Forged drop pitman arm to correct steering angles
- Front sway bar correction components to maintain handling performance
- HD transmission crossmember and transfer case indexing ring to correct front driveline angles
- Shocks included to improve ride and off-road performance
- Provides clearance for up to 37-inch tires
Specifications
- Front Lift Method: Coil Spring
- Front Lift Height: 5.5"
- Rear Lift Method: Coil Spring
- Rear Lift Height: 4.5"
- Shocks Included: Yes
Installation
- Estimated Installation Time: 7–9 hours
- Installation Difficulty: Difficult
- Tools Required: Standard wrenches
Important Notes
- Will not fit rear air-ride equipped models
- Kit designed for gas models only
- Does not fit Powerwagon models
- Does not fit vehicles with a Manual Shift Transfer Case
- Exhaust modification is required to clear the front driveshaft. Vehicle can be driven without the front driveshaft to an exhaust shop
- Trucks equipped with a 2-piece rear driveshaft require carrier bearing shim kit D5406 (not included with kit)
