Includes a 5 Inch Rear Block Kit With Overload and Nitro Series nitrogen-charged twin-tube gas shocks featuring 10-stage velocity-sensitive valving, dual-welded ends, self-lubricating seals, and a 2-inch diameter steel body with black powder coat finish.
Overview

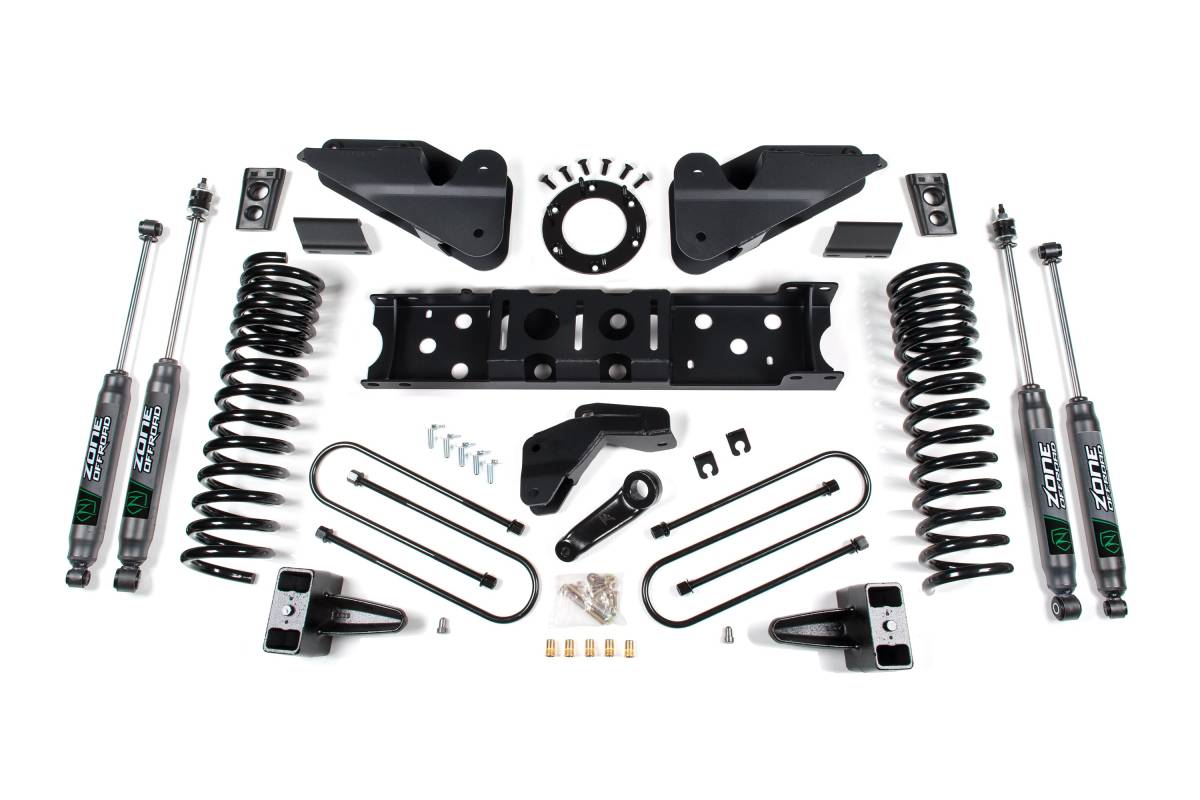

This 5.5 inch standard lift kit from Zone Offroad is designed for the 2019–2024 Ram 3500 4WD Gas. The kit includes everything needed to lift the truck, from full-length coil springs and radius arm drop brackets to steering correction and rear block lift to level the stance. Clearance for up to 37 inch tires is achieved with this kit.
Features
- High-strength progressive rate front coil springs for improved ride quality on any terrain
- Heavy duty 1/4 inch steel, laser cut, internally gusseted radius arms for increased strength, greater ground clearance, and corrected caster
- HD track bar relocation bracket to correctly position the front axle under the truck
- Forged drop pitman arm to correct steering angles
- Front sway bar correction to maintain handling performance
- HD transmission crossmember and transfer case indexing ring to correct front driveline angles
- Choice of Nitro Series gas or FOX 2.0 Adventure Series IFP gas shocks for improved ride and off-road performance
- Allows clearance for up to 37 inch tires
Specifications
- Front Lift Method: Coil Spring
- Front Lift Height: 5.5 inches
- Rear Lift Method: Block
- Rear Lift Height: 5 inches
- Shocks Included: Yes
Installation
- Estimated Time: 6 hours
- Difficulty: Difficult
- Tools Required: Standard Wrenches
Important Notes
- T-case indexing ring available for 6-bolt and 8-bolt equipped models — check vehicle before ordering.
- Will not fit Cab and Chassis models.
- Will NOT fit rear air-ride equipped models.
- Will NOT fit Mega Cab Aisin Transmissions (8-bolt).
- Does not fit vehicles with a Manual Shift Transfer Case.
- Trucks equipped with a 2-piece rear driveshaft require carrier bearing shim kit D5406 (not included with kit).
