Configured with a 5-Inch Rear Block Kit With Overload, an 8-Bolt T-case Indexing Ring, and FOX 2.0 Adventure Series IFP monotube gas shocks. Select this option if your RAM 3500 is equipped with factory rear overload leaf springs and the optional Aisin heavy-duty 6-speed transmission (8-bolt transfer case pattern). This kit includes the 8-bolt indexing ring, an internal shaft seal extension, and a new shaft seal.
FOX 2.0 Adventure Series shocks feature an internal floating piston (IFP) monotube design, a large 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving, and a long-lasting silver coated finish.
Overview

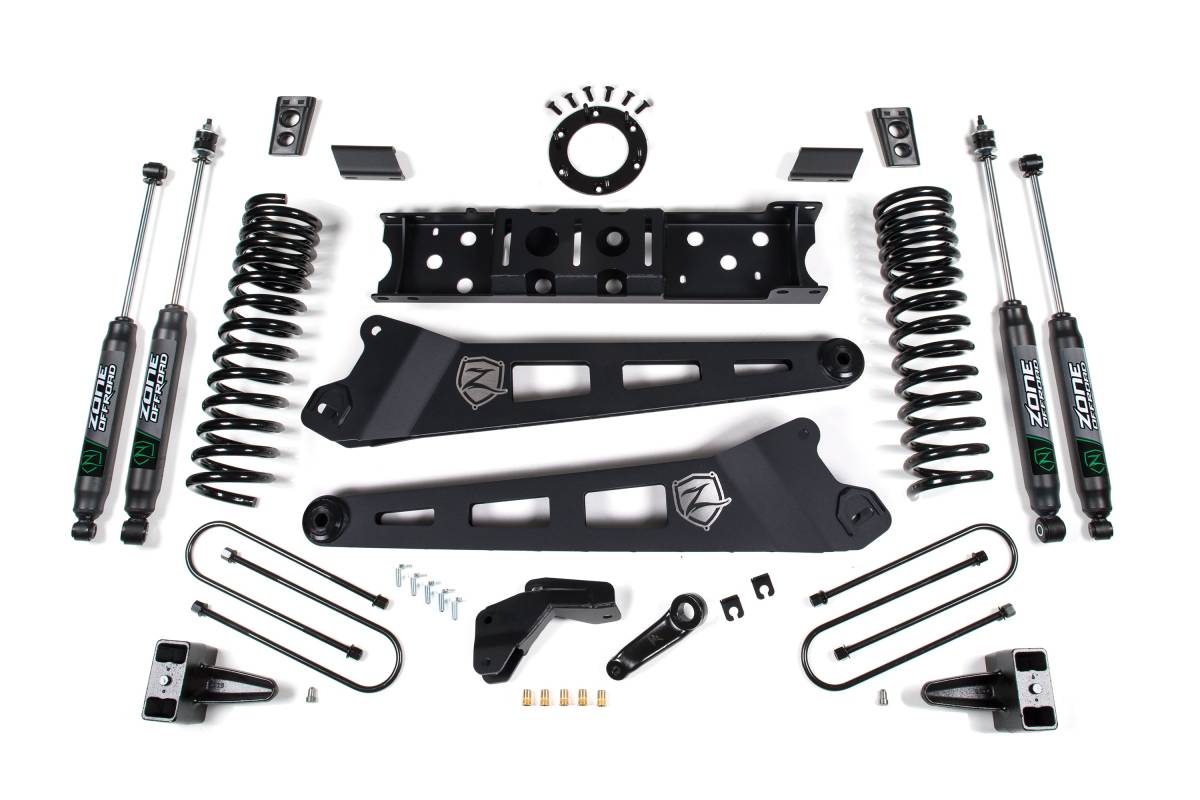

This 6.5-inch radius arm lift kit from Zone Offroad is designed for the 2019–2024 Ram 3500 4WD diesel. The kit includes full-length coil springs, heavy-duty radius arms, steering correction components, and rear lift hardware to level the truck's stance. It provides clearance for up to 37-inch tires.
Features
- High-strength progressive rate front coil springs for improved ride quality on any terrain
- Heavy-duty 1/4-inch steel, laser-cut, internally gusseted radius arms for increased strength, additional ground clearance, and caster correction
- HD track bar relocation bracket to correctly position the front axle under the truck
- Forged drop pitman arm to correct steering angles
- Front sway bar correction components to maintain handling performance
- HD transmission crossmember and T-case indexing ring to correct front driveline angles
- Choice of Nitro Series gas or FOX 2.0 Adventure Series IFP gas shocks for improved ride and off-road performance
- Provides clearance for up to 37-inch tires
Specifications
- Front Lift Method: Coil Spring
- Front Lift Height: 6.5 inches
- Rear Lift Method: Block
- Rear Lift Height: 5 inches
- Shocks Included: Yes
- Radius Arm Material: 1/4-inch steel, laser-cut, internally gusseted
Installation
- Estimated Installation Time: 7–9 hours
- Installation Difficulty: Difficult
Important Notes
- Does not fit Dually models with 8-bolt transmissions (Aisin).
- T-case indexing ring available for 6-bolt and 8-bolt equipped models — check your vehicle before ordering.
- Kits come standard with a 6-bolt indexing ring. The optional Aisin heavy-duty 6-speed transmission found in some RAM 3500 trucks uses a different transfer case mounting bolt pattern (8-bolt). The 8-bolt kit also includes an internal shaft seal extension and a new shaft seal.
- Will not fit Cab and Chassis models.
- Will NOT fit rear air-ride equipped models.
- Diesel models only.
- Will NOT fit Mega Cab Aisin Transmissions (8-bolt).
- Does not fit vehicles with a Manual Shift Transfer Case.
- Trucks equipped with a 2-piece rear driveshaft require carrier bearing shim kit D5406 (not included with kit).
