6.5 Inch Radius Arm Lift Kit | Ram 3500 4WD Diesel (2019-2024) | 5" Block w/o Overload | 8-Bolt | Nitro Series Shocks | Zone Offroad

Configured with a 5-Inch Rear Block Kit Without Overload, an 8-Bolt T-case Indexing Ring, and Nitro Series nitrogen-charged twin-tube gas shocks. Select this option if your RAM 3500 does not have factory rear overload leaf springs and is equipped with the optional Aisin heavy-duty 6-speed transmission (8-bolt transfer case pattern). This kit includes the 8-bolt indexing ring, an internal shaft seal extension, and a new shaft seal.

Nitro Series shocks feature a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends for increased strength, self-lubricating seals, a black powder coat finish, and a 2-inch diameter steel body.

Overview

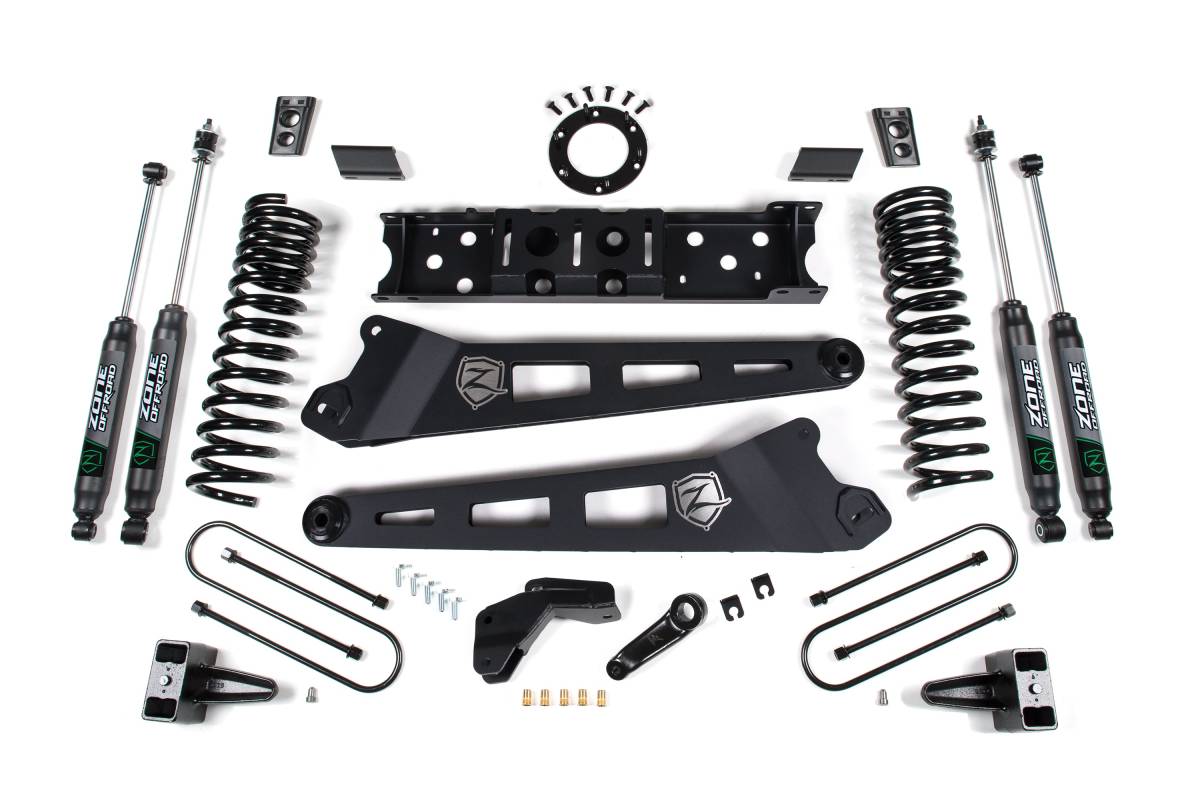

This 6.5-inch radius arm lift kit from Zone Offroad is designed for the 2019–2024 Ram 3500 4WD diesel. The kit includes full-length coil springs, heavy-duty radius arms, steering correction components, and rear lift hardware to level the truck's stance. It provides clearance for up to 37-inch tires.

Features

• High-strength progressive rate front coil springs for improved ride quality on any terrain
• Heavy-duty 1/4-inch steel, laser-cut, internally gusseted radius arms for increased strength, additional ground clearance, and caster correction
• HD track bar relocation bracket to correctly position the front axle under the truck
• Forged drop pitman arm to correct steering angles
• Front sway bar correction components to maintain handling performance
• HD transmission crossmember and T-case indexing ring to correct front driveline angles
• Choice of Nitro Series gas or FOX 2.0 Adventure Series IFP gas shocks for improved ride and off-road performance
• Provides clearance for up to 37-inch tires

Specifications

• Front Lift Method: Coil Spring
• Front Lift Height: 6.5 inches
• Rear Lift Method: Block
• Rear Lift Height: 5 inches
• Shocks Included: Yes
• Radius Arm Material: 1/4-inch steel, laser-cut, internally gusseted

Installation

• Estimated Installation Time: 7–9 hours
• Installation Difficulty: Difficult

Important Notes

• Does not fit Dually models with 8-bolt transmissions (Aisin).
• T-case indexing ring available for 6-bolt and 8-bolt equipped models — check your vehicle before ordering.
• Kits come standard with a 6-bolt indexing ring. The optional Aisin heavy-duty 6-speed transmission found in some RAM 3500 trucks uses a different transfer case mounting bolt pattern (8-bolt). The 8-bolt kit also includes an internal shaft seal extension and a new shaft seal.
• Will not fit Cab and Chassis models.
• Will NOT fit rear air-ride equipped models.
• Diesel models only.
• Will NOT fit Mega Cab Aisin Transmissions (8-bolt).
• Does not fit vehicles with a Manual Shift Transfer Case.
• Trucks equipped with a 2-piece rear driveshaft require carrier bearing shim kit D5406 (not included with kit).
