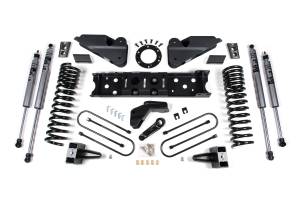

6.5 Inch Lift Kit | Ram 3500 (2019-2024) 4WD Diesel | 5 Inch Block w/o Overload | 8-Bolt | FOX 2.0 Adventure Series | Zone Offroad

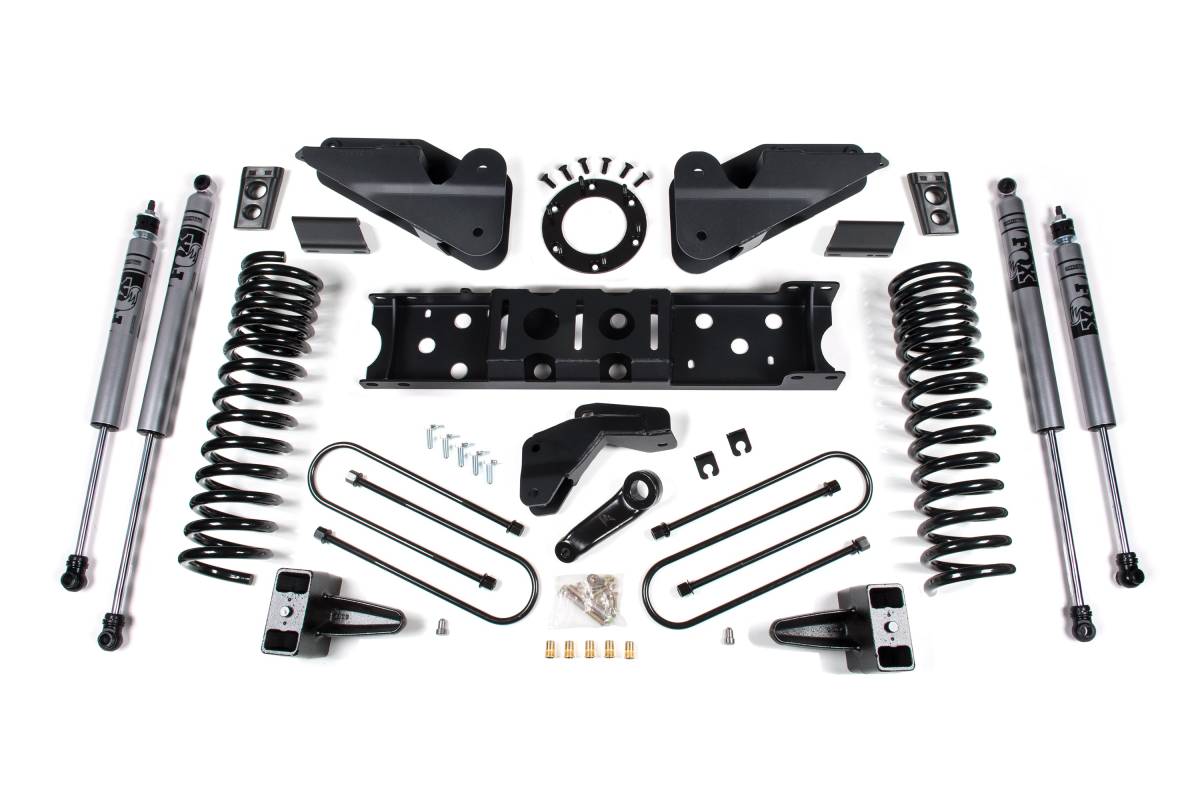

Configured with a 5 Inch Rear Block Kit (Without Overload), 8-Bolt T-case indexing ring, and FOX 2.0 Adventure Series IFP gas shocks. Select this option if your RAM 3500 does not have factory rear overload leaf springs and is equipped with the optional Aisin heavy-duty 6-speed transmission, which uses an 8-bolt transfer case mounting pattern. This kit also includes an internal shaft seal extension and new shaft seal. FOX 2.0 Adventure Series shocks feature an internal floating piston (IFP) monotube design, large 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving, and a long-lasting silver coated finish.

Overview

This 6.5" standard lift kit from Zone Offroad is designed for 2019–2024 RAM 3500 4WD diesel trucks. The kit includes everything needed for a complete front and rear lift, including full-length coil springs, radius arm drop brackets, steering correction components, and a rear lift to level the stance. The kit provides clearance for up to 37" tires.

Features

• High-strength progressive rate front coil springs for improved ride quality on any terrain
• Heavy-duty 1/4" steel, laser-cut, internally gusseted radius arms for increased strength, additional ground clearance, and corrected caster
• HD track bar relocation bracket to correctly position the front axle under the truck
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and T-case indexing ring to correct front driveline angles

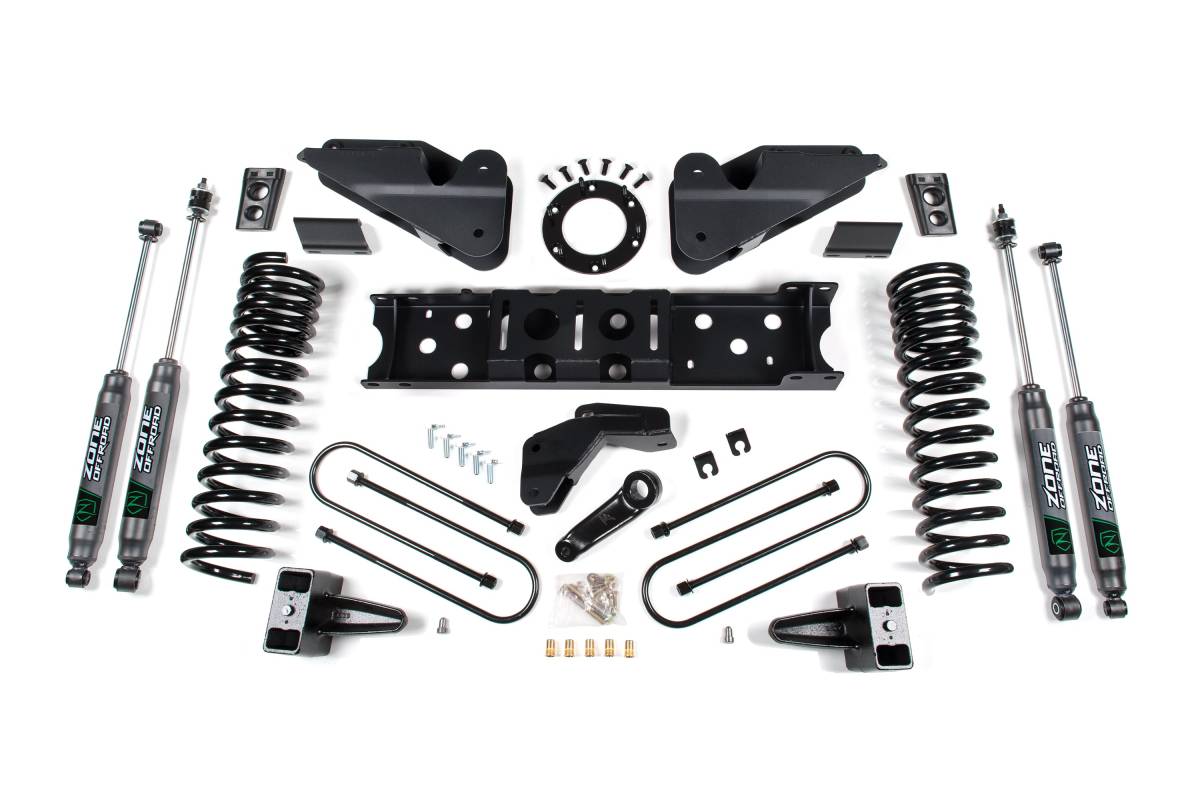

• Nitro Series gas or FOX 2.0 Adventure Series IFP gas shocks for improved ride and off-road performance
• Provides clearance for up to 37" tires

Specifications

• Front Lift Method: Coil Spring
• Front Lift Height: 6.5"
• Rear Lift Method: Block
• Rear Lift Height: 5"
• Shocks Included: Yes

Installation

• Estimated Time: 6 hours
• Difficulty: Difficult
• Tools Required: Standard wrenches

Important Notes

• Does not fit Dually Models with 8-bolt transmissions (Aisin).
• T-case indexing ring available for 6-bolt or 8-bolt trucks — verify factory configuration prior to ordering.
• Kits come standard with 6-bolt indexing ring. The optional Aisin heavy-duty 6-speed transmission uses an 8-bolt transfer case mounting pattern; the 8-bolt kit includes an internal shaft seal extension and new shaft seal.
• Will not fit rear air-ride equipped models.
• Kit designed for diesel models only.
• Does not fit Chassis Cabs.
• 8-bolt Mega Cab may require an aftermarket driveshaft and no indexing.
• Does not fit vehicles with a Manual Shift Transfer Case.
• Trucks equipped with a 2-piece rear driveshaft require carrier bearing shim kit D5406 (not included with kit).
