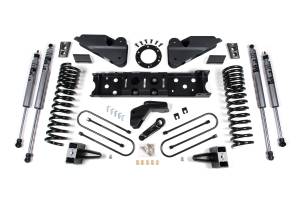

6.5 Inch Lift Kit | Ram 3500 (2019-2024) 4WD Diesel | 5 Inch Block w/o Overload | 6-Bolt | FOX 2.0 Adventure Series | Zone Offroad

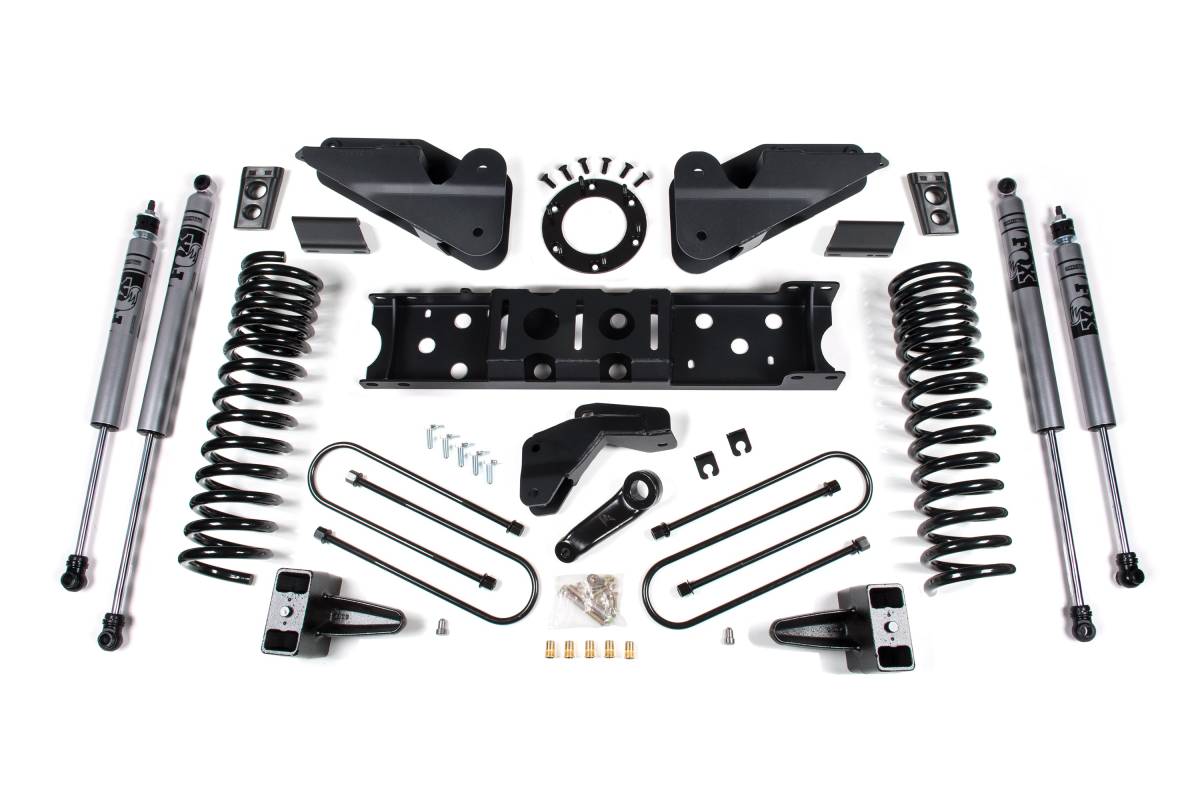

Configured with a 5 Inch Rear Block Kit (Without Overload), 6-Bolt T-case indexing ring, and FOX 2.0 Adventure Series IFP gas shocks. Select this option if your RAM 3500 does not have factory rear overload leaf springs and uses the standard 6-bolt transfer case mounting pattern. FOX 2.0 Adventure Series shocks feature an internal floating piston (IFP) monotube design, large 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving, and a long-lasting silver coated finish.

Overview

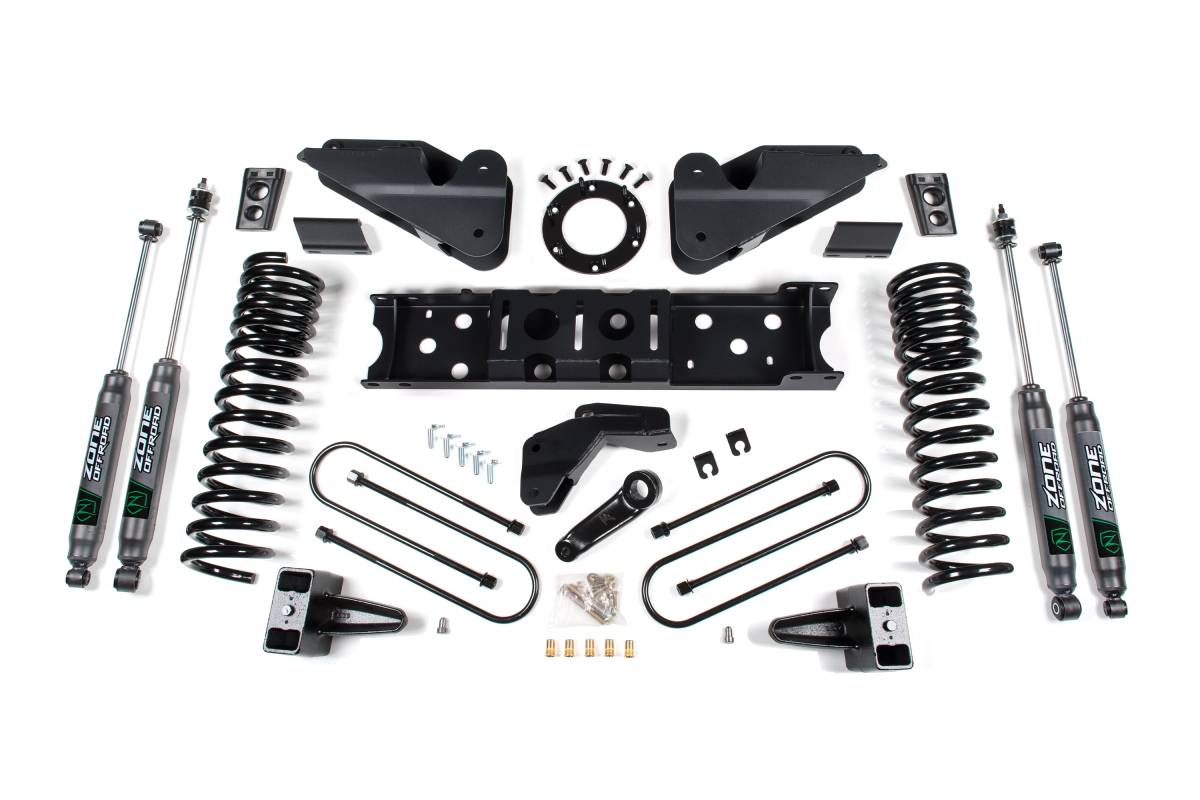

This 6.5" standard lift kit from Zone Offroad is designed for 2019–2024 RAM 3500 4WD diesel trucks. The kit includes everything needed for a complete front and rear lift, including full-length coil springs, radius arm drop brackets, steering correction components, and a rear lift to level the stance. The kit provides clearance for up to 37" tires.

Features

• High-strength progressive rate front coil springs for improved ride quality on any terrain
• Heavy-duty 1/4" steel, laser-cut, internally gusseted radius arms for increased strength, additional ground clearance, and corrected caster
• HD track bar relocation bracket to correctly position the front axle under the truck
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and T-case indexing ring to correct front driveline angles
• Nitro Series gas or FOX 2.0 Adventure Series IFP gas shocks for improved ride and off-road performance
• Provides clearance for up to 37" tires

Specifications

• Front Lift Method: Coil Spring
• Front Lift Height: 6.5"
• Rear Lift Method: Block
• Rear Lift Height: 5"
• Shocks Included: Yes

Installation

• Estimated Time: 6 hours
• Difficulty: Difficult
• Tools Required: Standard wrenches

Important Notes

• Does not fit Dually Models with 8-bolt transmissions (Aisin).
• T-case indexing ring available for 6-bolt or 8-bolt trucks — verify factory configuration prior to ordering.
• Kits come standard with 6-bolt indexing ring. The optional Aisin heavy-duty 6-speed transmission uses an 8-bolt transfer case mounting pattern; the 8-bolt kit includes an internal shaft seal extension and new shaft seal.
• Will not fit rear air-ride equipped models.
• Kit designed for diesel models only.
• Does not fit Chassis Cabs.
• 8-bolt Mega Cab may require an aftermarket driveshaft and no indexing.
• Does not fit vehicles with a Manual Shift Transfer Case.
• Trucks equipped with a 2-piece rear driveshaft require carrier bearing shim kit D5406 (not included with kit).
