Includes FOX 2.0 Adventure Series shocks featuring a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends, self-lubricating seals, black powder coat finish, and a 2-inch diameter steel body.
For vehicles with RPO Codes: FT2, FT3, FT4, FT5, FT6, or FT7. Verify RPO codes in your glovebox before ordering.
Overview

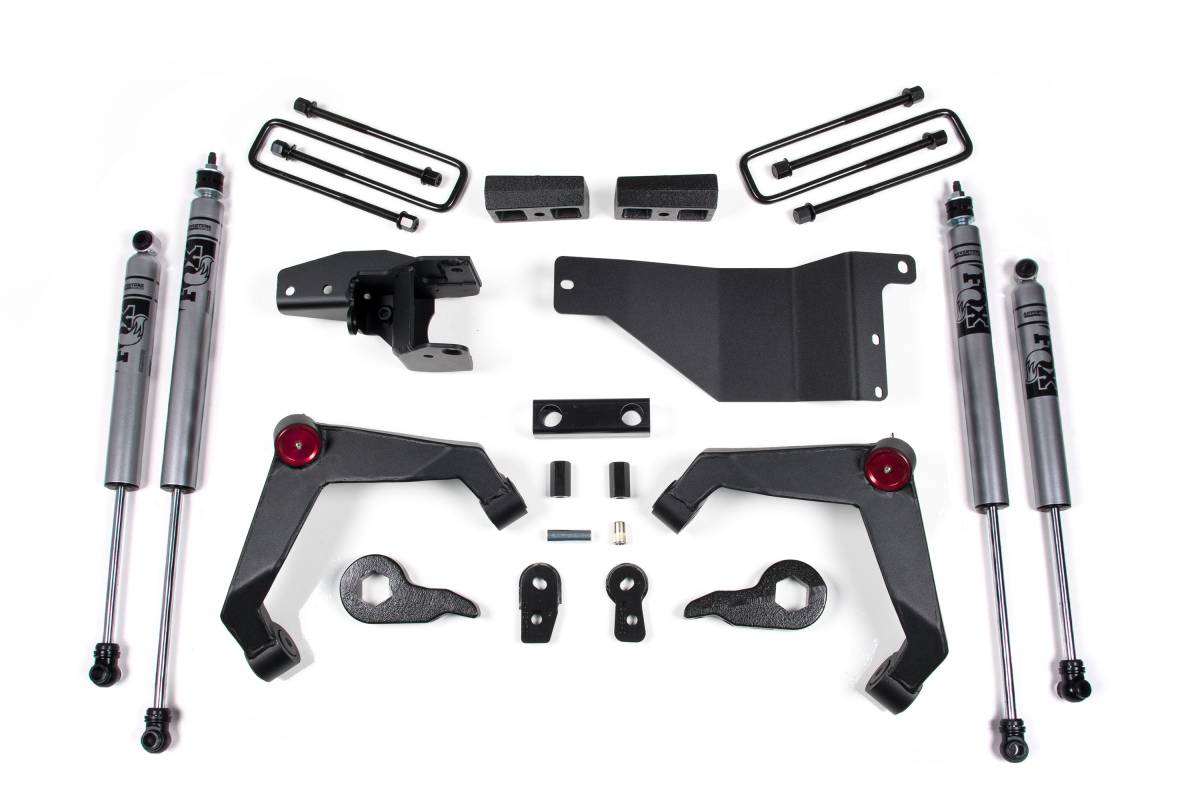

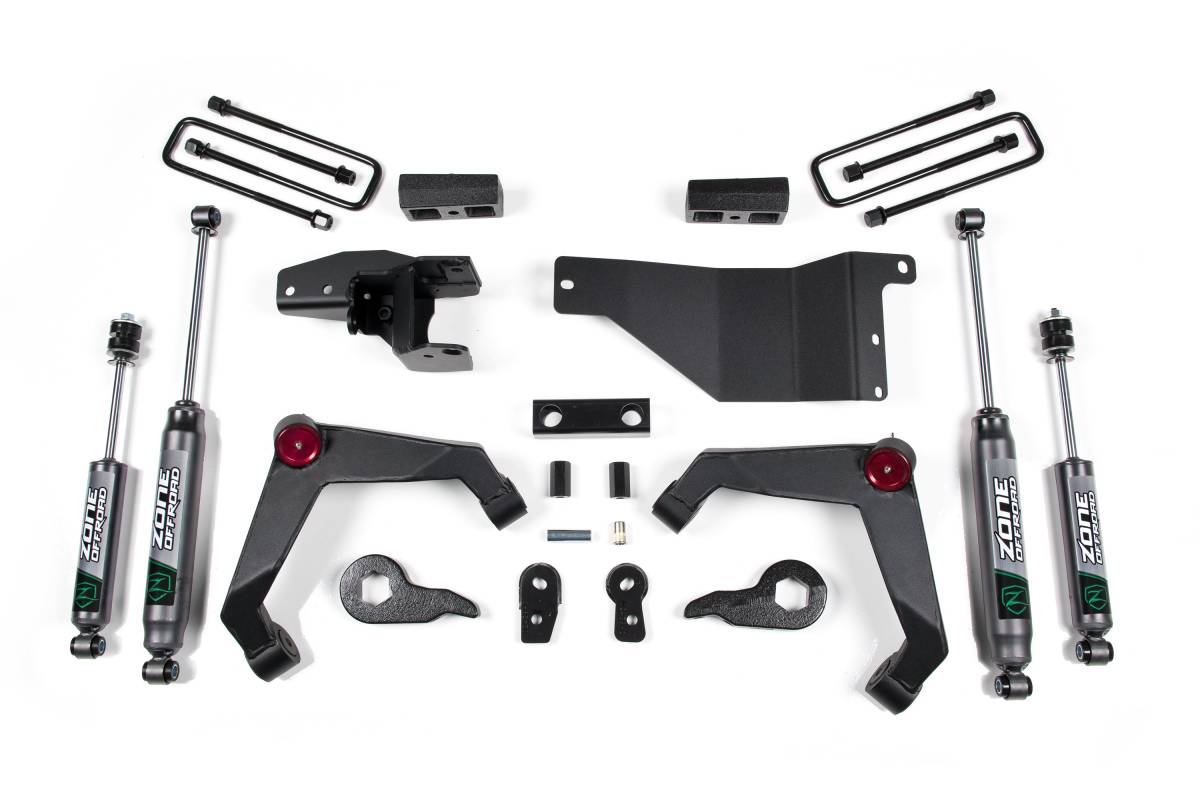

This 3-inch Adventure Series lift kit from Zone Offroad is designed for 2001–2010 Chevy Silverado and GMC Sierra 2500HD 4WD trucks. The kit includes high-strength upper control arms, indexed torsion bar keys, a front differential relocation bracket, a differential skid plate, and a rear lift block kit — everything required to complete the installation. The result is 3 inches of front lift via torsion key and upper control arm, and 2 inches of rear lift via block, producing a level to slightly tail-high stance with clearance for up to 34-inch tires.
Features
- Adventure Series fully boxed HD upper control arms for improved strength and suspension travel
- Improved ride quality and suspension travel over standard leveling kits
- Front differential drop included to correct CV shaft angles
- Differential skid plate for improved off-road protection
- 2-inch rear block kit nets a level to slightly tail-high stance
- Indexed torsion bar keys to set ride height
- Allows clearance for up to 33-inch tires
Specifications
- Front Lift Method: Torsion Key & Upper Control Arm
- Front Lift Height: 3 inches
- Rear Lift Method: Block
- Rear Lift Height: 2 inches
- Shocks Included: Yes
Installation
- Estimated Installation Time: 3.5 hours
- Installation Difficulty: Moderate
- Special Tools Required: Torsion Bar Unloading Tool
Important Notes
- Frame bracket mount modification required.
- To determine which kit is required, verify the RPO codes shown in the glovebox to identify the factory-installed torsion keys.
- Will not fit dually models.
- Factory wheels cannot be re-installed.
- Kits C1202 / C1212 / C31 fit vehicles with RPO Code: FT2, FT3, FT4, FT5, FT6, or FT7.
- Kits C1203 / C1213 / C32 fit vehicles with RPO Code: FK2, FK3, FF6, FF7, FF8, or FF9.
