6 Inch Lift Kit | Chevy/GMC K1500 Truck & SUV (1977-1987) 4WD | w/ FOX 2.0 Adventure Series Shocks | Zone Offroad

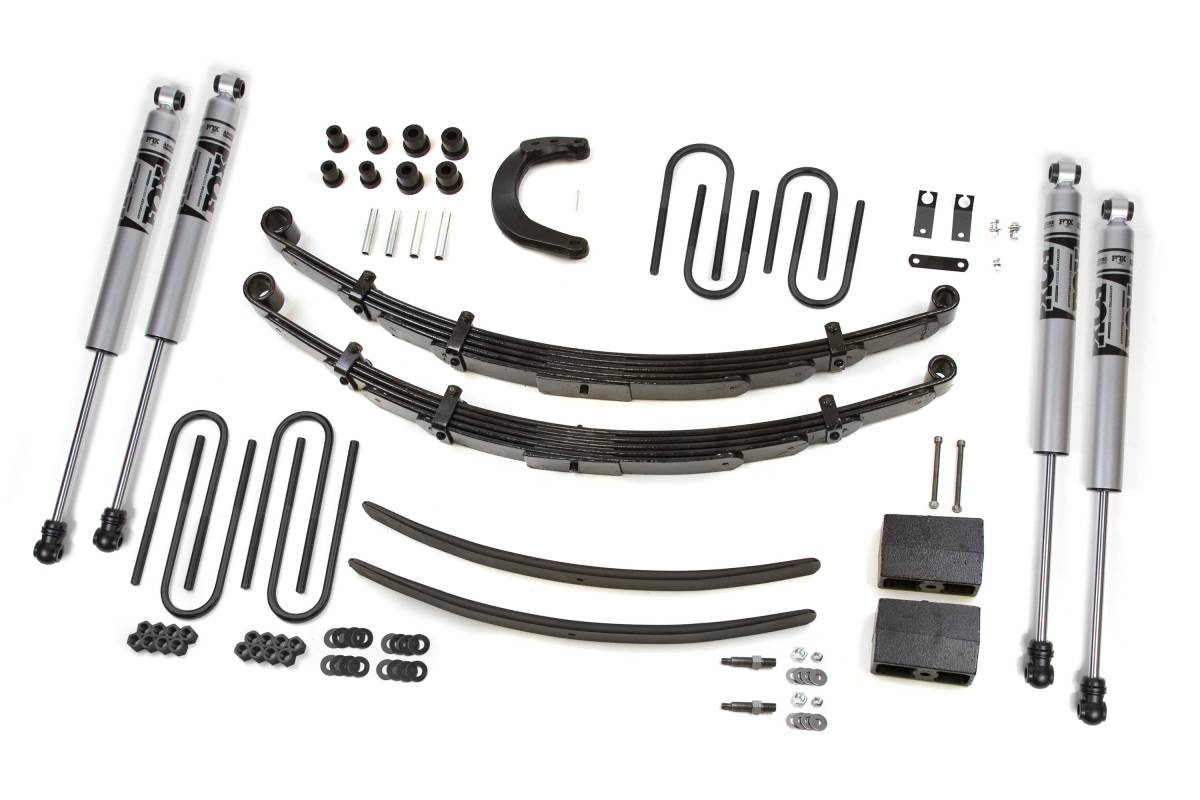

Includes FOX 2.0 Adventure Series shocks for enhanced off-road performance and on-road comfort.

Overview

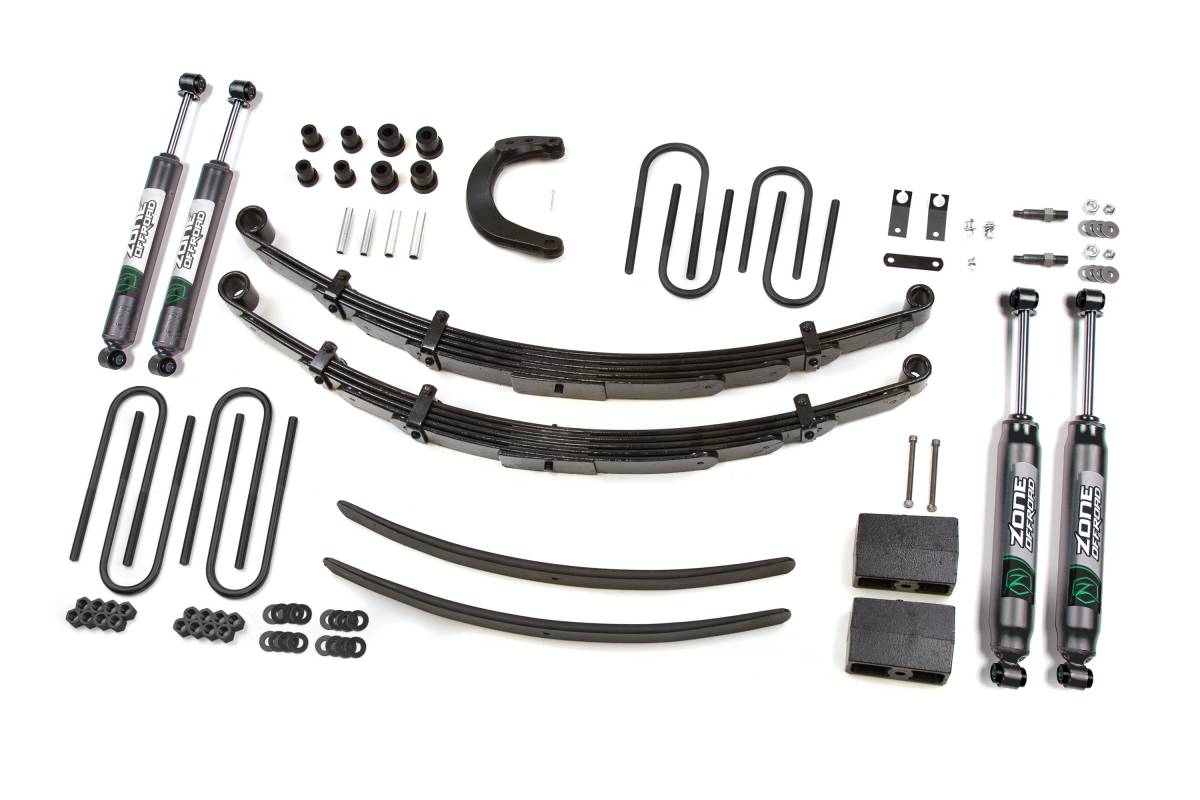

This 6-inch lift kit is designed for 4WD 1977–1987 Chevy/GMC K1500 trucks and SUVs. The kit provides the clearance needed to run up to 36-inch tires while delivering daily driving reliability. All major components required for a complete lift are included.

Features

• Brake line relocation brackets allow re-use of factory brake lines
• Heavy-duty replacement front leaf springs provide lift and great ride quality
• High-strength, black e-coated U-bolts
• Rear Add-A-Leaf kit provides additional lift and improves weight capacity
• Rear lift block and longer U-bolts for easy installation and level stance
• Steering components included to ensure smooth post-installation operation of the steering system and factory-consistent vehicle handling characteristics

Specifications

• Front Lift Method: Leaf Spring
• Front Lift Height: 6"
• Rear Lift Method: Block & Add-A-Leaf
• Rear Lift Height: 6"
• Total Lift Height: 6"–7.5"
• Shocks Included: Yes

Installation

• Estimated Installation Time: 4 hours
• Installation Difficulty: Moderate

Important Notes

Auxiliary Shocks: If your vehicle is equipped with factory auxiliary front shocks, you will need to order auxiliary shocks to complete your kit. Add in configuration / checkout.

On some models, the front driveshaft may need to be clearanced at the double cardan joint to prevent binding. Some models may require the transfer case drop kit C5001 listed in the accessories to alleviate driveshaft vibration. The front exhaust cross-over pipe may need to be modified to clear the front driveshaft on some models.
