4 Inch Lift Kit | Chevy/GMC K2500 3/4 Ton Truck & SUV (1977-1987) 4WD | w/ FOX 2.0 Adventure Series Shocks | Zone Offroad

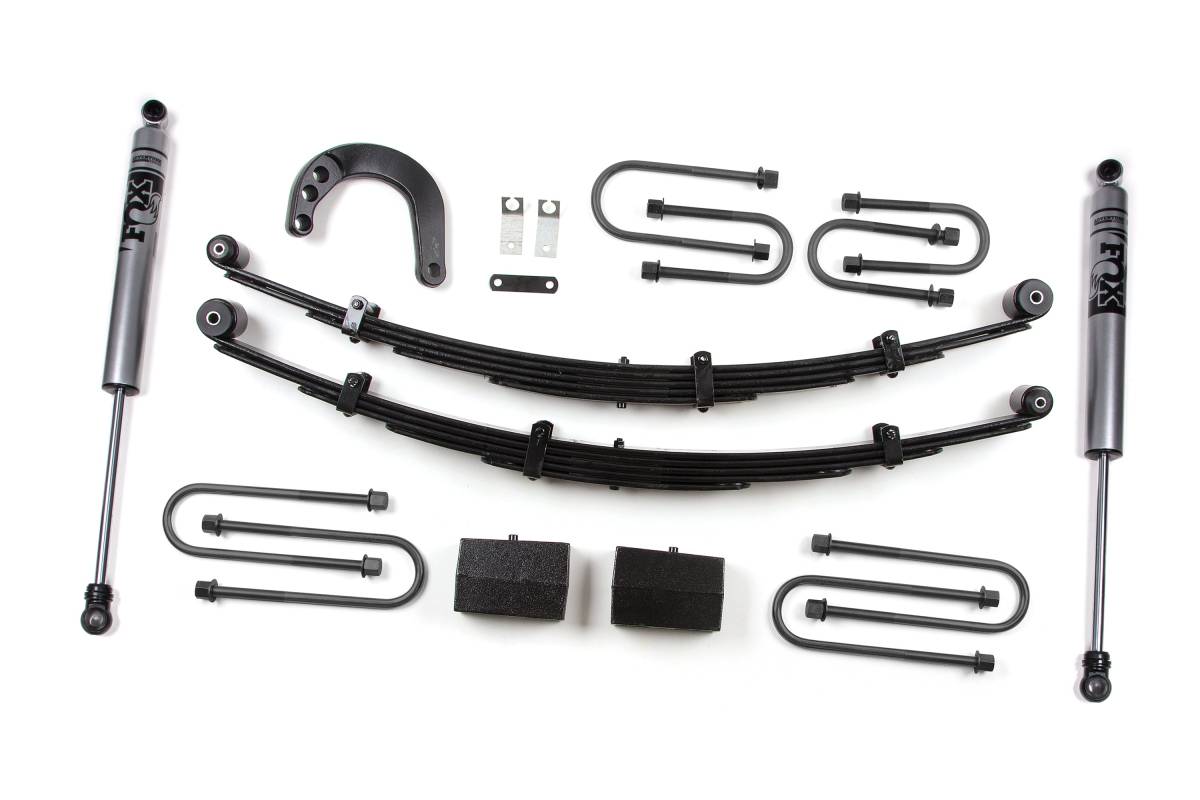

Configured with FOX 2.0 Adventure Series shocks featuring a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends for increased strength, self-lubricating seals, a black powder coat finish, and a 2-inch diameter steel body.

Overview

This 4-inch lift kit is designed for 1977–1987 Chevy/GMC K2500 3/4 Ton Trucks and SUVs with 4WD. It provides significant ground clearance and accommodates up to 35-inch tires. The kit uses a leaf spring and block lift system for the front and rear respectively, delivering a complete, level stance for classic 4WD applications.

Features

• Brake line relocation brackets allow re-use of factory brake lines
• Heavy-duty replacement front leaf springs provide lift and great ride quality
• High-strength, black e-coated U-bolts
• Rear lift block and longer U-bolts for easy installation and level stance
• Steering components included to ensure smooth post-installation operation and factory-consistent vehicle handling characteristics

Specifications

• Front Lift Method: Leaf Spring
• Front Lift Height: 4 inches
• Rear Lift Method: Block
• Rear Lift Height: 4 inches
• Shocks Included: Yes

Installation

• Estimated Installation Time: 3.5 hours
• Installation Difficulty: Moderate

Important Notes

Auxiliary Shocks? If your vehicle is equipped with factory auxiliary front shocks, you will need to order auxiliary shocks to complete your kit. Add in configuration / checkout.
