HOIST DC1000 12V | 105101

Mounting bolt pattern 3.0"x6.59" (76.2mm x 167.4mm) Hoist, mounting plate and hardware only. Requires 105646 control pack and 68851 cable.

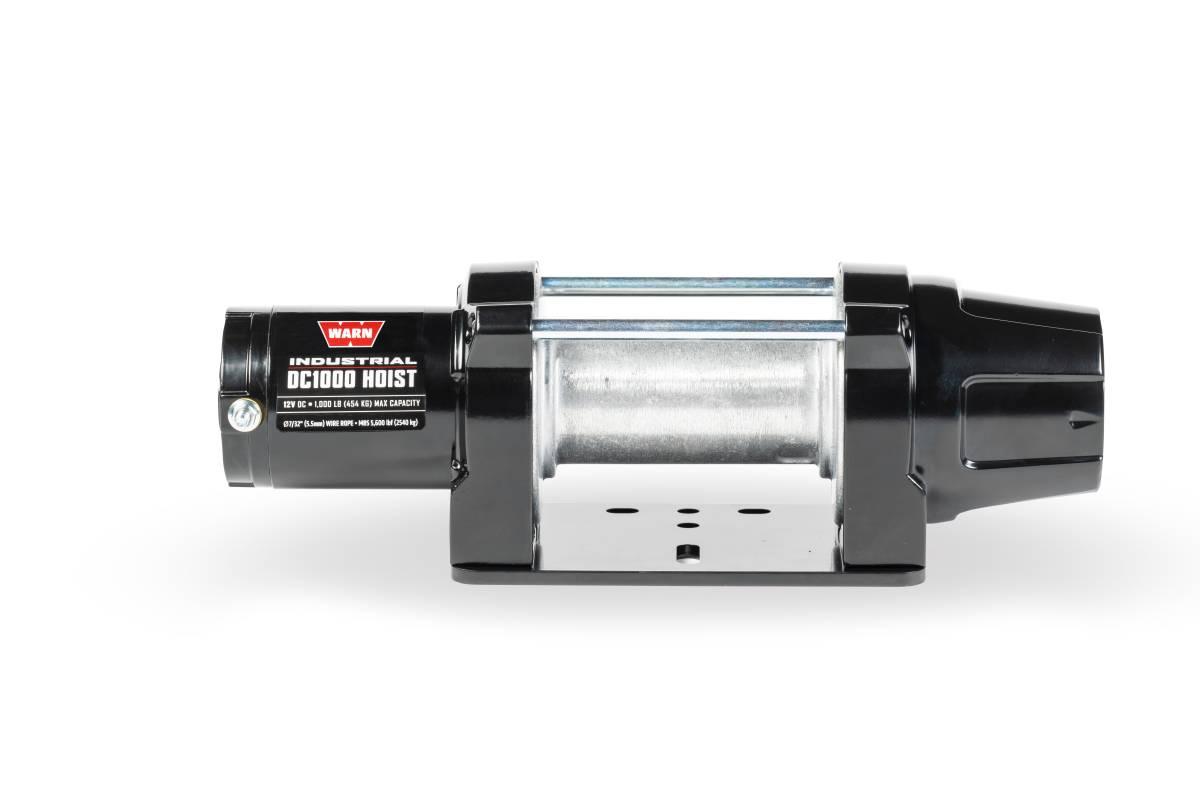

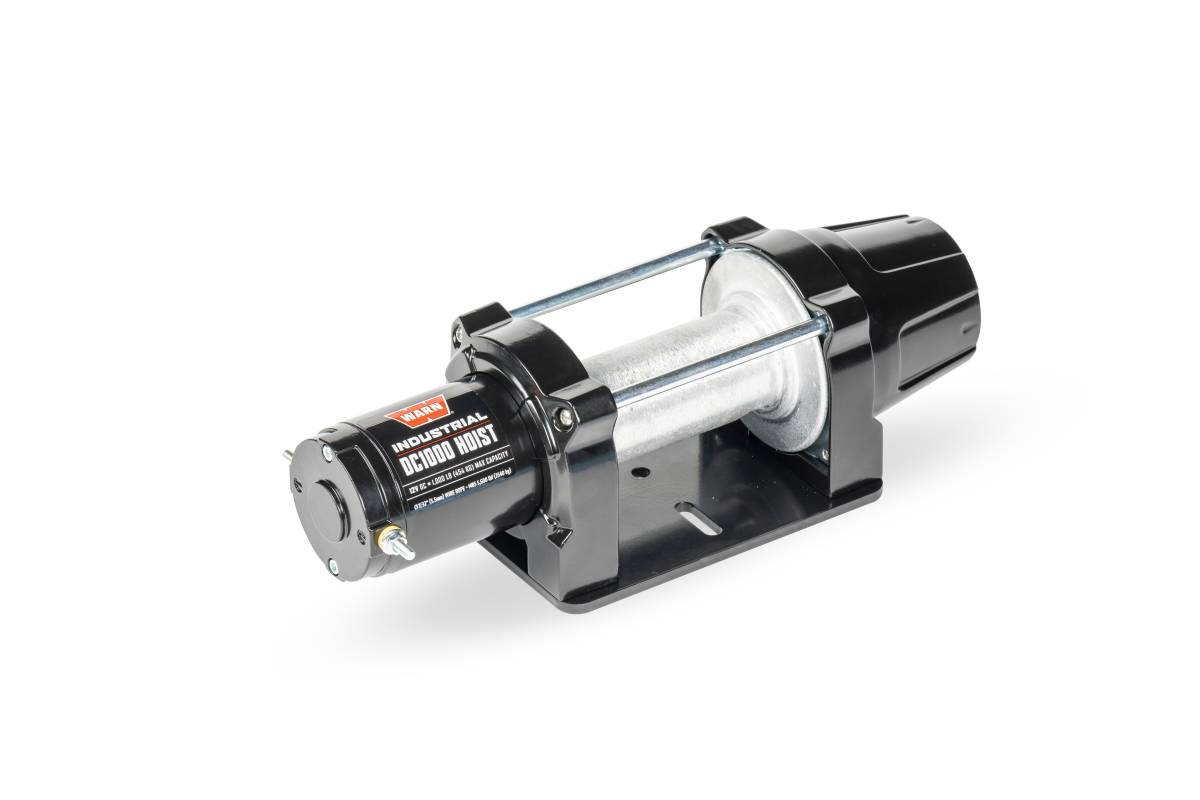

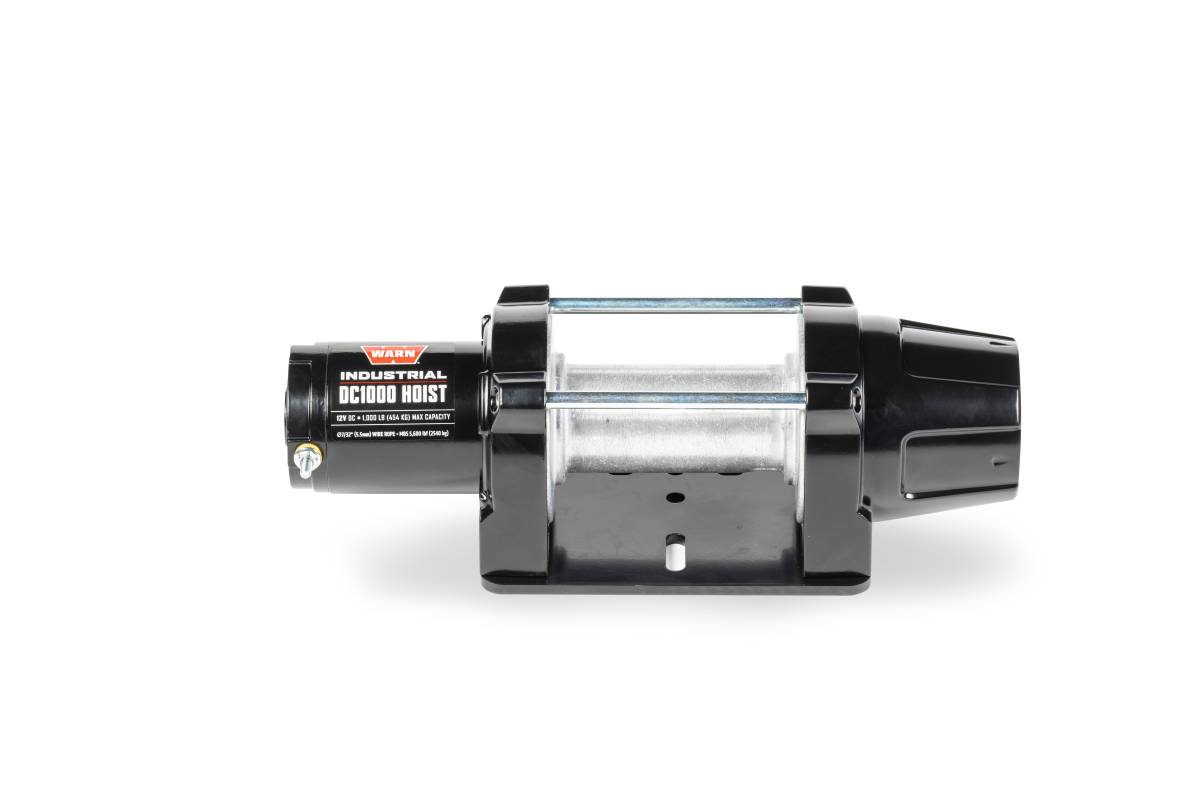

WARN HOIST DC1000 12V

• 1000 lb (454 kg) capacity
• 12V DC permanent magnet motor
• IP68/IP69K waterproofing sealing
• Mounting bolt pattern 3.0"x6.59" (76.2mm x 167.4mm)
• automatic mechanical brake that holds full-rated load

Industrial 1000 lb (454 kg) capacity hoist, 12V DC permanent magnet motor. Reliable all-metal three-stage planetary gear train, load holding automatic mechanical brake, permanent grease lubrication, and IP68/IP69K waterproofing

Small but mighty, these hoists will work in a variety of applications from work truck cranes and davits, to lifting heavy spare tires on overland rigs, and even military vehicles. With WARN reliability, automatic braking, and an included mounting plate and hardware, the new DC1000 are the perfect way to give those tough jobs a lift.
