FLATLINK MULTIMOUNT WINCH SHACKLE MOUNT -- GREEN | 00225-08

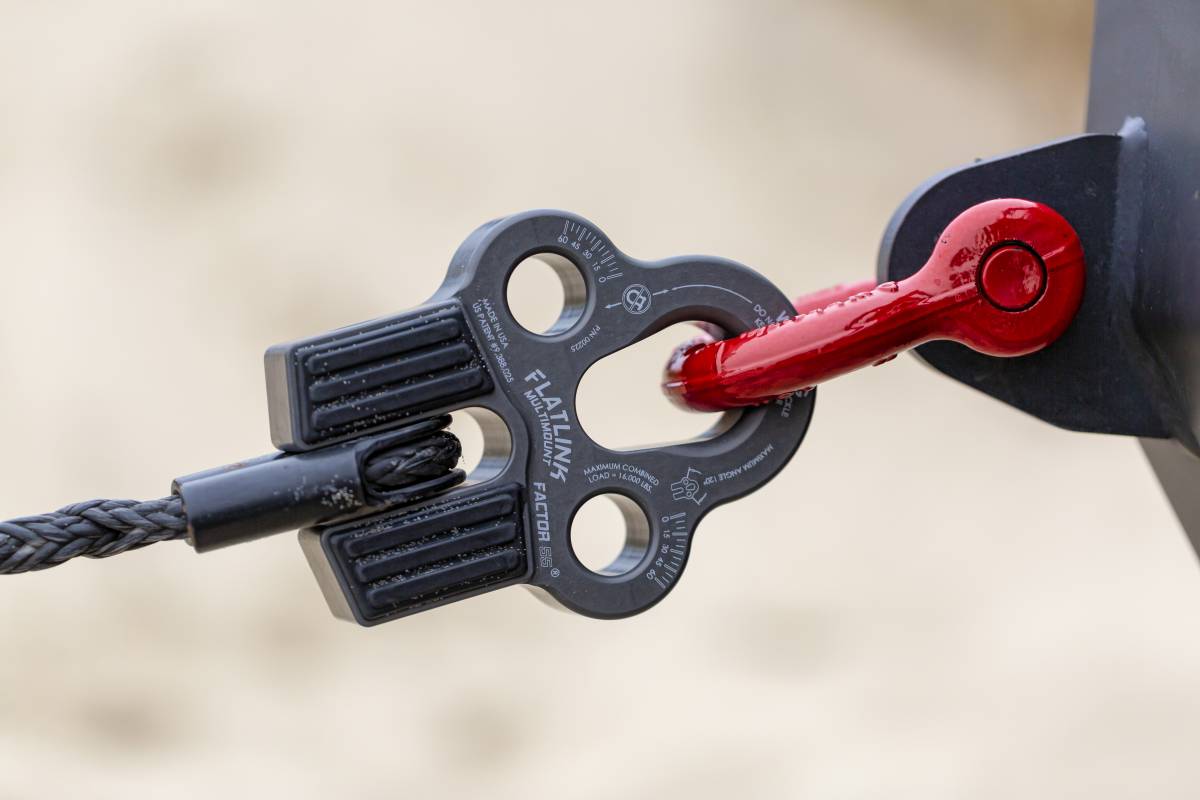

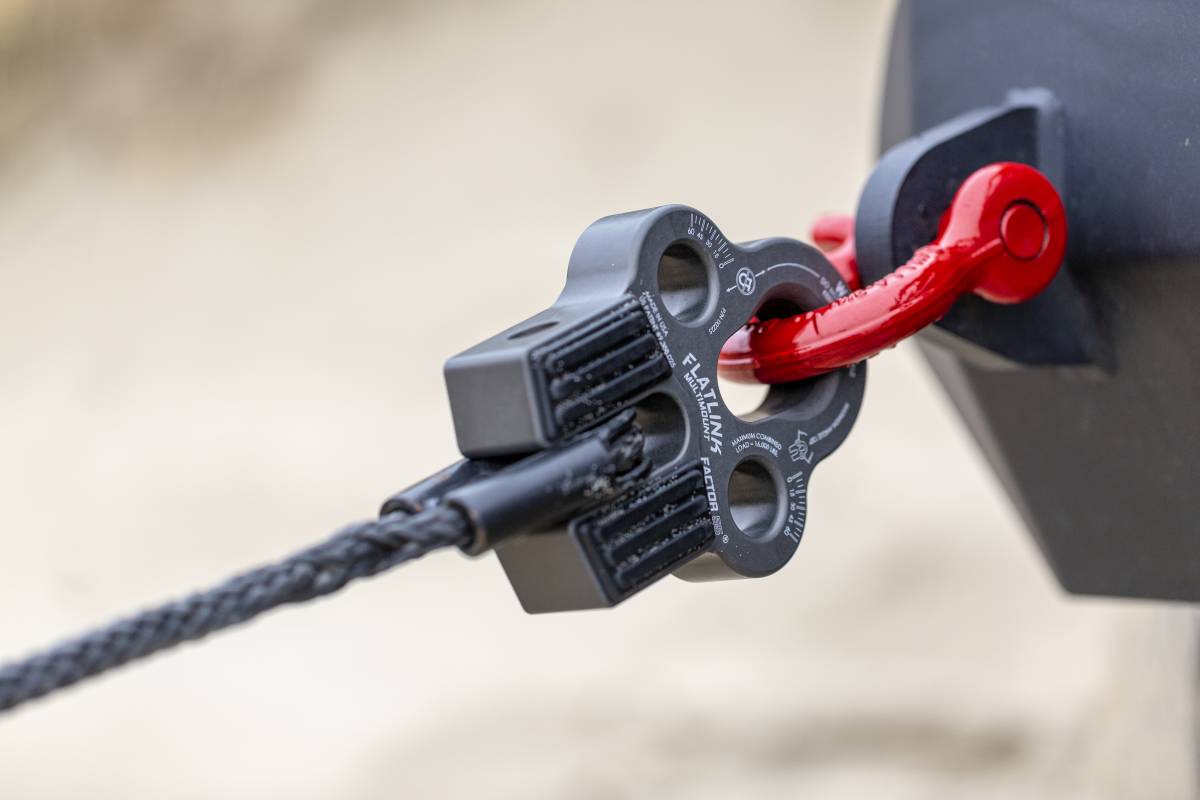

Winching with a bridle arrangement is also possible by using the two outer shackle pin mounting holes in combination with common bridle rigging The two additional shackle pin mounting holes provide secure shackle attach points for multiple winch pull directions, while the center hole provides a secure conventional center pull shackle mount point. This arrangement eliminates any shackle side loading forces at the Multimount interface ( Shackles are free to rotate and align to the load directions)

Factor 55 FLATLINK MLTMT WNCHSHKL GRN

• When folded flat ? less than 1.75 inches of thickness
• Fits steel cables and synthetic winch ropes to 3/8 inch diameters
• EPDM Rubber Guard protects alloy fairleads and cushions line stowage
• Precision machined from 6000 series aluminum
• Max load rating : 16,000 pounds
• Engineered, tested, and made in USA ? Patent pending.

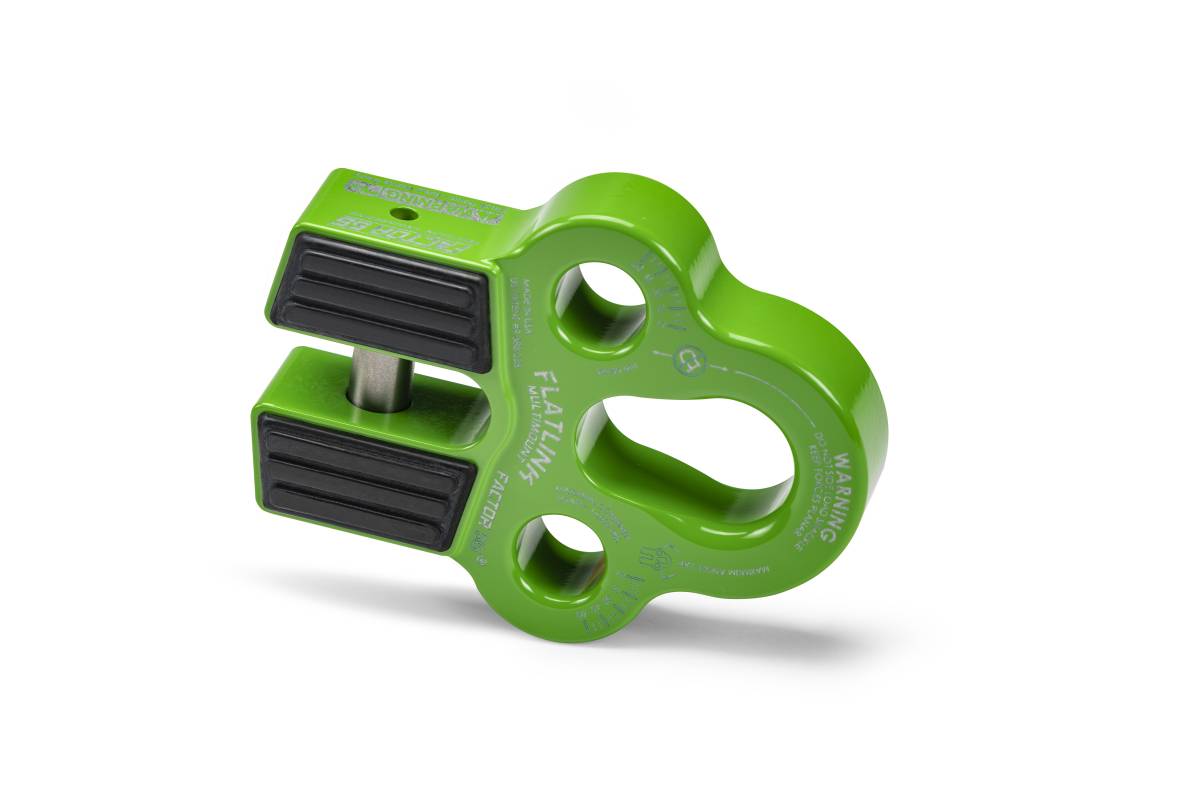

The FlatLink MultiMount is a multiple shackle mount designed for advanced recovery techniques.

FlatLink MultiMount is designed for difficult vehicle recovery scenarios with two additional shackle pin mounting holes that provide secure shackle attachment points for multiple winch pull directions; the center hole provides a secure shackle mount point for either end of a bow shackle or soft-shackle. This arrangement eliminates any shackle side loading forces at the MultiMount interface (Shackles are free to rotate and align to the load directions). Winching with a bridle arrangement is also possible by using the two outer shackle pin mounting holes in combination with common bridle rigging. Like the rest of the FlatLink product line, the MultiMount may be folded flat against fairlead surfaces when stowed, resulting in minimal impact to vehicle approach angles. Engineered, tested, and made in the USA.
