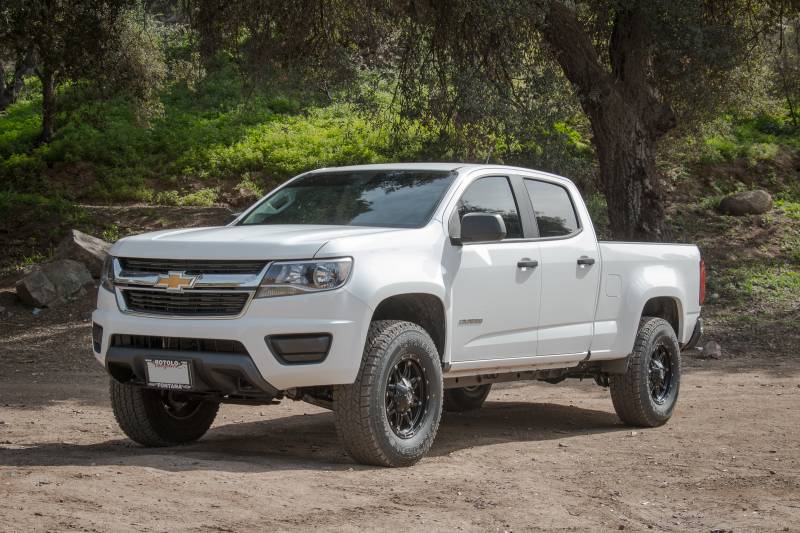

ICON 2015+ Chevrolet Colorado 1.75-3in Stage 1 Suspension System | K73051

APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE OEM Wheels & Tires Fitment: Yes Recommended Aftermarket Tires: 32" x 11.00" (Larger tires may fit but fender trimming and modifications will be required.) Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset Ships in multiple boxes TECH NOTE: Canyon AT4 front lift height range is .75-2" over stock TECH NOTE: Included rear shocks are compatible with 0-2" of rear lift over stock TECH NOTE: Not compatible with Colorado ZR2

ICON 2015+ Chevrolet Colorado 1.75-3in Stage 1 Suspension System SUSPENSION SYSTEM

• Improved ride quality over stock with no change in towing capacity
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Fits 2WD and 4WD models
• Compatible with diesel models
• 25% increase in wheel travel over stock
• 6061 Aircraft grade aluminum CNC machined components
• Height-adjustable coilovers offer 1.75-3" of lift height
• 2.0 Aluminum Series rear IFP shocks with 5/8" shock shafts
• FK Rod End bearings for extended longevity and minimal deflection
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• 100% Bolt-on system - no drilling or welding necessary for install

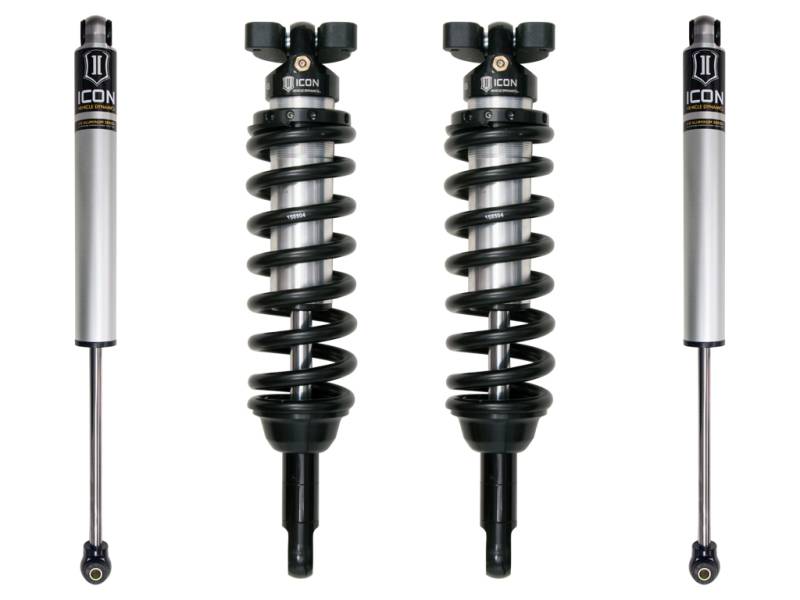

ICON engineers’ primary focus for the GM Colorado / Canyon was to increase wheel travel and damping ability to provide outstanding vehicle control and ride quality both on and off-road. Researching each component of the GM platform’s suspension and addressing any areas where performance could be extracted, a 25% increase in overall wheel travel was achieved. The Stage 1 system includes vehicle specific tuned 2.5 coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 1.75-3” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2015-2022 GM Colorado/Canyon Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt. ICON engineers’ primary focus for the GM Colorado / Canyon was to increase wheel travel and damping ability to provide outstanding vehicle control and ride quality both on and off-road. Researching each component of the GM platform’s suspension and addressing any areas where performance could be extracted, a 25% increase in overall wheel travel was achieved. The Stage 1 system includes vehicle specific tuned 2.5 coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 1.75-3” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2015-UP GM Colorado/Canyon Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
