ICON 2017+ Ford F-250/F-350 4.5in Stage 1 Suspension System | K64511

APPLICATION NOTE #31: ‘08 - Current Superduty Models With Gas Engines May Need Exhaust Modified To Clear Front Driveshaft APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY APPLICATION NOTE #8: THIS SYSTEM MAY REQUIRE A CARRIER BEARING DROP BRACKET KIT (33700) OEM Wheels & Tires Fitment: Yes Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.) Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset Ships in multiple boxes TECH NOTE: Brake line kit (Part # 61110) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)

ICON 2017+ Ford F-250/F-350 4.5in Stage 1 Suspension System SUSPENSION SYSTEM

• Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
• ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain
• Corrosion resistant anodized shock body with 5/8" shaft (2.0 Aluminum Series shocks)
• Radius arm drop brackets correct geometry and caster for optimal alignment specs
• FK Rod End bearings provide extended longevity and minimal deflection
• ICON shocks feature vehicle specific tune for superior performance and ride quality
• Shocks are fully rebuildable and revalvable
• Fits 2017-2019 F-250 / F-350 4WD applications
• Lifetime guarantee against coil spring breakage or sag
• Approximately 50% increased front wheel travel over stock

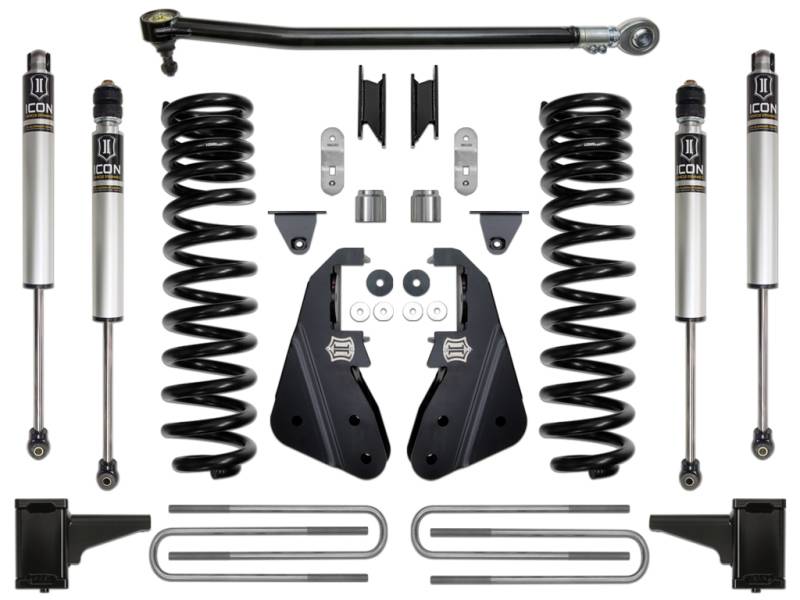

This ICON Vehicle Dynamics 4.5” suspension system is a great way to lift your 4WD 2017-2019 Ford F-250/F-350 Super Duty while drastically improving ride quality and performance. This entry level system is perfect for on-road and towing use, as well as mild off-road use like job site duty and washboard gravel roads. ICON's 4.5" Stage 1 System is comprised of dual rate coil springs, radius arm drop brackets, adjustable track bar, 5" block kit, and ICON 2.0 Aluminum Series front and rear shocks. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market. This ICON Vehicle Dynamics 4.5” suspension system is a great way to lift your 4WD 2017-2019 Ford F250/350 Super Duty while drastically improving ride quality and performance. This entry level system is perfect for on-road and towing use, as well as mild off-road use like job site duty and washboard gravel roads. ICON's 4.5" Stage 1 System is comprised of dual rate coil springs, radius arm drop brackets, adjustable track bar, 5" block kit, and ICON 2.0 Aluminum Series front and rear shocks. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.
