ICON 2007+ Toyota Tundra 1-3in Stage 2 Suspension System | K53022

APPLICATION NOTE #110: TRIMMING REQUIRED FOR RECOMMENDED TIRE SIZE APPLICATION NOTE #111: BUMP STOP SPACER KIT AVAILABLE THAT CAN BE INSTALLED TO INCREASE THREADS SHOWING BEYOND MAX RECOMMENDATION. APPLICATION NOTE #122: NOT COMPATIBLE WITH REAR TRD SWAY BAR KIT APPLICATION NOTE #24: Factory UCA's Will Not Align Properly Past 2.5” Of Lift. Above 2.5” Of Lift An Aftermarket UCA Is Recommended. APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE OEM Wheels & Tires Fitment: Yes Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.) Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6.00” Backspace / 25mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset Ships in Multiple Boxes

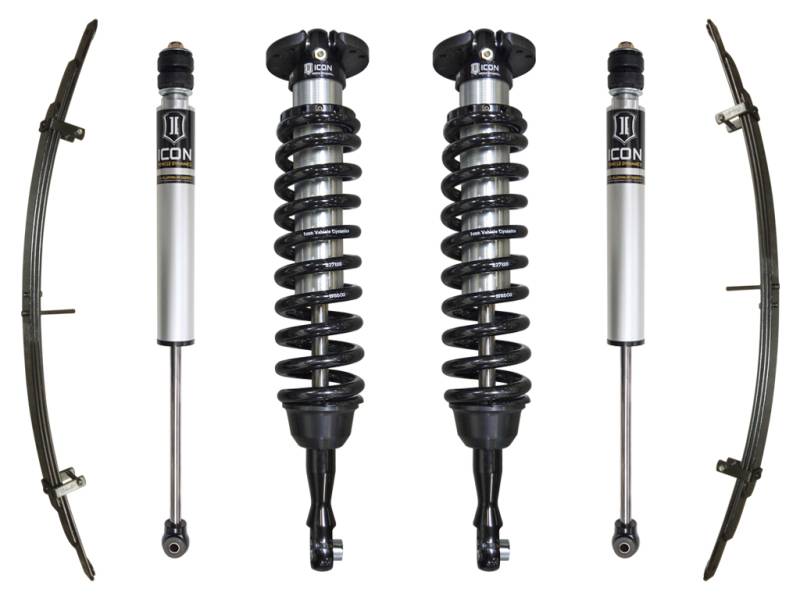

ICON 2007+ Toyota Tundra 1-3in Stage 2 Suspension System SUSPENSION SYSTEM

• 6061 Aircraft grade aluminum CNC machined components
• 1.5" lift Rear Exspansion pack for better ride quaility
• 2.0 VS Aluminum Series with 5/8" polished nitro steel shaft
• FK rod end bearings for extended longevity and minimal deflection
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install
• Increased wheel travel and ride quality over stock with no change in towing capacity
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Adjustable coilovers from 1-3" of lift height

ICON Vehicle Dynamics Toyota Tundra Stage 2 suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 2 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties. These coilovers are also height adjustable from 1-3” of lift allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 VS Aluminum Series monotube rear shocks utilize a vehicle-specific valving and then when combined with ICON's expansion pack give you the performance of the truck from front to rear. The ICON Vehicle Dynamics 2007-2021 Toyota Tundra Stage 2 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
