ICON 2020+ Jeep Gladiator 2.5in Stage 4 Suspension System | K22104

APPLICATION NOTE #127: WILL NOT FIT GLADIATOR MOJAVE TRIM APPLICATION NOTE #150: SHOCKS ARE FULLY SERVICEABLE OEM Wheels & Tires Fitment: Yes Recommended Aftermarket Tires: 35" x 12.50" (37" x 12.50" with optional bump stop spacer kit PN: 22071) Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.5” Backspace / -6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 4.5” Backspace / -12mm Offset Ships In Multiple Boxes TECH NOTE: Diesel models will net approx. 1.75" of front lift over stock due to their heavier weight. TECH NOTE: ICON’s advertised lift heights are based around a typical Jeep JT build which usually includes added weight of accessories such as heavier front bumper/winch. Lift heights may be higher than advertised if installed on a stock weighted vehicle.

ICON 2020+ Jeep Gladiator 2.5in Stage 4 Suspension System SUSPENSION SYSTEM

• Front and rear track bars ensure proper alignment and improved articulation
• Fits 35" tires (37" with extended bump stop spacer kit)
• Adjustable, billet aluminum front sway bar links
• 100% bolt-on system makes for an easy install
• Improves on and off-road ride quality over stock
• 33% front, 23% rear increase in wheel travel
• 2.5" lift height
• Front lower links included for caster angle correction and improved front end articulation
• Triple rate rear coil springs with ICON-engineered droop, ride, and overload rates
• “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
• Dual rate front coil springs with lifetime guarantee against sagging/breakage
• 2.0 Aluminum Series shocks with vehicle specific valving

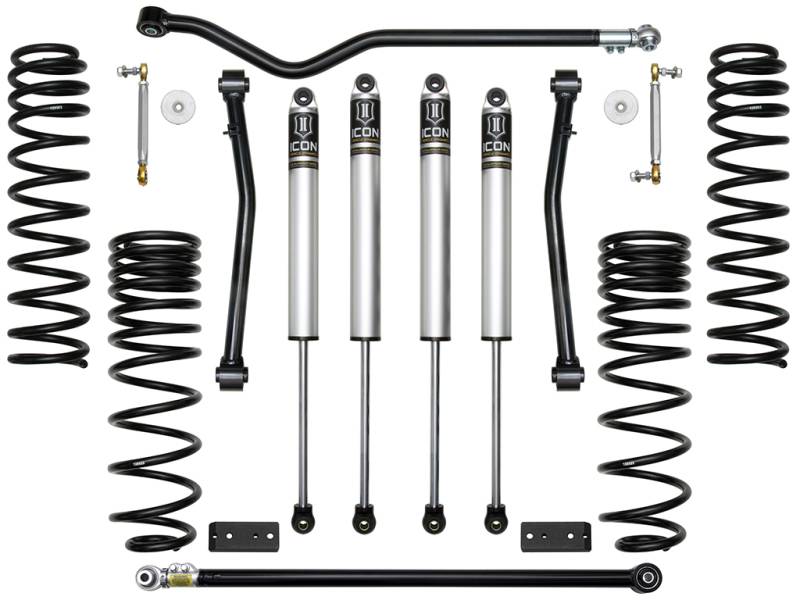

The Stage 4 ICON 2.5” Suspension System for the Jeep Gladiator is the ideal setup for drastically improving on-road ride quality and overall performance for the daily driven application that will see frequent, moderate off-road use. This complete suspension system features 2.0 Aluminum Series shocks, 2.5” lift dual-rate front coil springs, a tubular steel fixed front lower link kit, billet front sway bar links, a triple-rate rear coil spring kit, a rear sway bar relocation kit, front and rear adjustable track bars, and all necessary hardware for install. This system provides an increase of over 30% front and 20% rear wheel travel and was designed around the use of a 35” tire. For those looking to run a 37” tire this can be achieved with the ICON Jeep JT Bump Stop Spacer Kit (Part #22071).
