ICON 2018+ Jeep Wrangler JL 2.5in Stage 7 Suspension System | K22017

APPLICATION NOTE #150: SHOCKS ARE FULLY SERVICEABLE APPLICATION NOTE #66: 2 DOOR MODELS SIT SLIGHTLY HIGHER THAN 4 DOOR MODELS BUT REMAIN LEVEL WHEN INSTALLED OEM Wheels & Tires Fitment: Yes Recommended Aftermarket Tires: 35" x 12.50" (37" x 12.50" with optional bump stop spacer kit PN: 22029) Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.5” Backspace / -6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 4.5” Backspace / -12mm Offset Ships In Multiple Boxes TECH NOTE: ICON’s advertised lift heights are based around a typical Jeep JL build which usually includes added weight of accessories such as heavier front bumper/winch and heavier rear bumper/spare tire. Lift heights may be higher than advertised if installed on a stock weighted vehicle. TECH NOTE: Only compatible with models equipped with 3.6L V6 Pentastar engine. Not compatible with 3.6L V6 eTorque engine.

ICON 2018+ Jeep Wrangler JL 2.5in Stage 7 Suspension System JEEP JL 2.5" STAGE 7

• Improves on and off-road ride quality over stock
• “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
• Tubular steel link arms with dual durometer bushings for noise free performance, maximum articulation, and minimal bind
• 2.5 Aluminum Series shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• Dual rate coil springs with lifetime guarantee against sagging/breakage
• 100% bolt-on system makes for an easy install
• Fits 35" tires (37" with optional bump stop spacer kit PN: 22029)
• 2.5" lift height
• 3" front, 2" rear increase in wheel travel

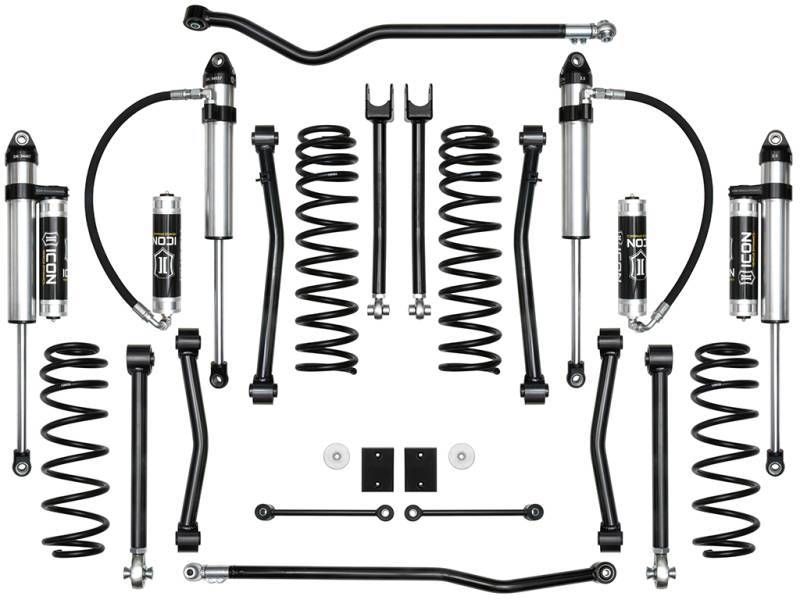

The ICON Vehicle Dynamics Stage 7 2.5" Suspension System for the 2018-UP Jeep Wrangler JL is designed for the driver looking to drastically improve the performance and ride quality of their vehicle. This Stage 7 system includes 2.5" lift dual rate coil springs, upgraded 2.5 Aluminum Series remote reservoir shocks with vehicle specific valving, tubular steel adjustable front upper links, fixed front lower links, fixed rear upper links, adjustable rear lower links, adjustable front and rear track bars, bump stop spacers, sway bar links, and all necessary hardware to complete the installation. With this combination of components, ICON was able to increase wheel travel numbers by over 30% (3" front, 2" rear), redefining the potential of the 2018-UP JL. The Stage 7 system allows for fitment of 35" tires when used with ICON's recommended wheel specifications. For users looking to install 37" tires, an optional bump stop spacer kit (PN: 22029) is available.
