ICON 03-12 Dodge Ram 2500/3500 4WD 2.5in Stage 5 Suspension System | K212505T

APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY OEM Wheels & Tires Fitment: Yes Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required) Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.25” BS / 13mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.50" BS / 12mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.50" BS / 12mm Offset Ships in Multiple Boxes

2.5" SUSP SYS STG 5 ICON 03-12 Dodge Ram 2500/3500 4WD 2.5in Stage 5 Suspension System

• Adjustable track bar with PTFE lined FK bearings
• CDCV (Compression Damping Control Valve) allows external adjustability of compression valving
• Level stance front to rear
• Increased wheel travel and ride quality over stock with no change in towing capacity
• No drive shaft modifications needed
• ICON engineered dual rate coil springs with match tuned 2.5" V.S. Series shocks with CDCV
• 2.5 Aluminum Series front and rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• Less body roll than stock
• Heavy-duty steel upper and lower link bars

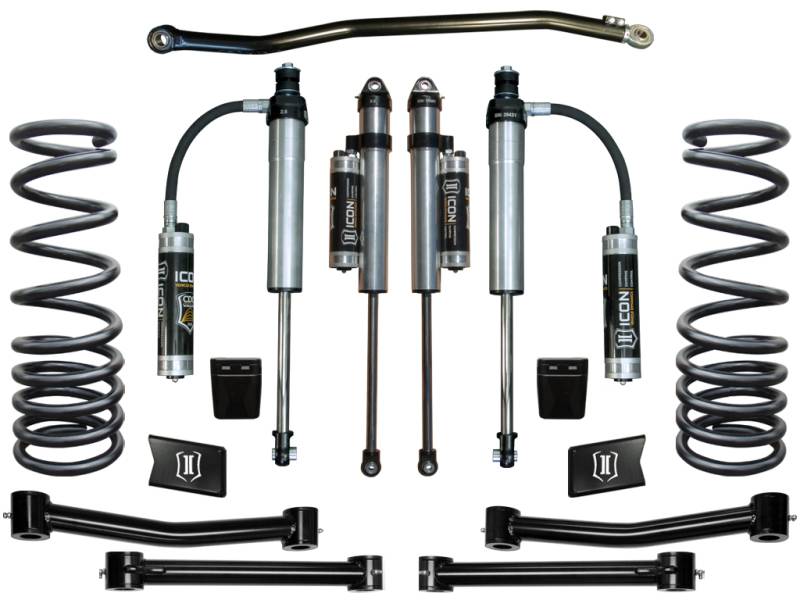

2003-2012 Ram 2500/3500 2.5” Stage 5 is our ultimate performance kit, with user adjustability, that offers extraordinary diversity across any terrain. This system not only levels out the stance, it increases ride quality and performance substantially both on and off-road. The Stage 5 System is comprised of dual rate coil springs, polyurethane bump stops, sway bar drop brackets, 2.5 Aluminum Series shocks w/ CDCV, bearing style adjustable track bar, and front steel upper and lower links. ICON 2.5 Aluminum Series shocks with CDCV extend the performance of the kit by increasing the duration of consistent damping regardless of situation, and give you the ability to tune the compression damping with the turn of an external knob. These shocks include FK bearings, billet top cap and rod ends, 7/8” shafts for strength. The adjustable track bar with bearings not only improves rigidity over flexible factory joints, but offers adjustability to center the front axle under the truck. ICON tubular upper and lower links offer eye catching style, polyurethane bushings to decrease the bind found in the factory link bushings, and improved alignment range. ICON has spent endless hours testing and tuning our suspension components and shocks together, so you can rest assured you have the best suspension solution on the market.
