ICON 2019+ Ford Ranger Ext Travel 2.5 Series VS RR CDCV Coilover Kit | 91355C

APPLICATION NOTE #110: MINOR TRIMMING REQUIRED FOR RECOMMENDED TIRE SIZE APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE OEM Wheels & Tires Fitment: Yes Recommended Aftermarket Tires : 285/70R17 (Larger tires may fit but fender trimming and modifications will be required) Recommended Aftermarket Tires: 33"x11.25" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6.00” Backspace / 25mm Offset TECH NOTE: Extended travel coilovers also require aftermarket front upper control arms. DO NOT install in conjunction with OE front upper control arms. TECH NOTE: Not compatible with Ranger Raptor. TECH NOTE: Ranger XLT or Lariat models equipped with Tremor package have front lift height range of 0-2.5" over stock.

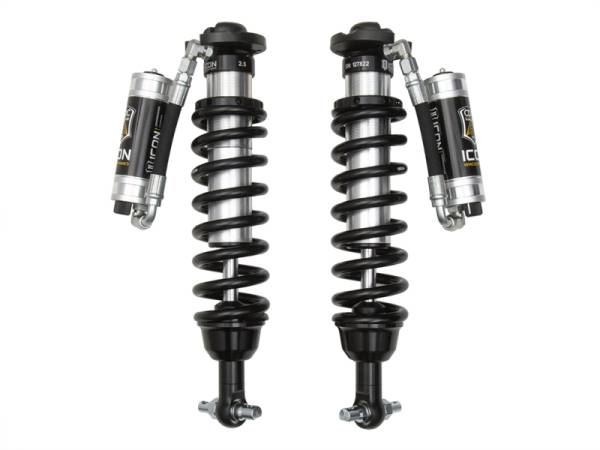

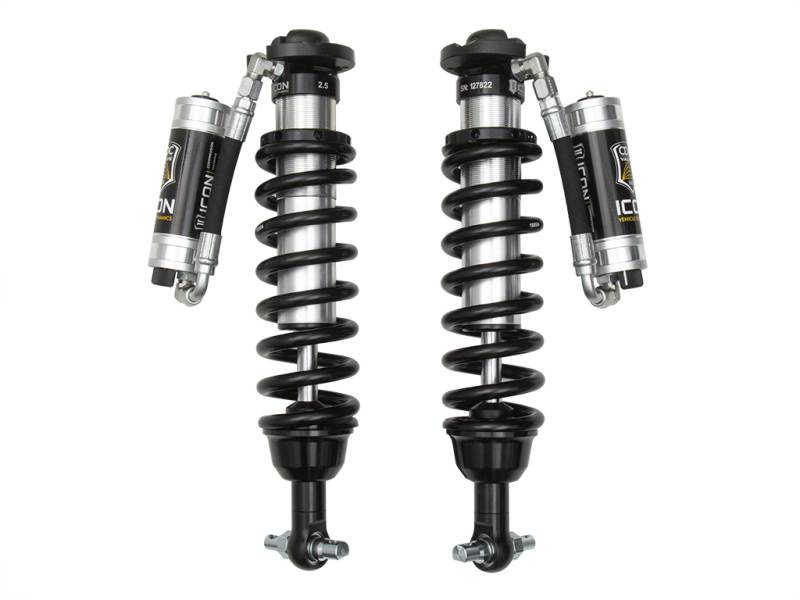

COILOVER KIT ICON 2019+ Ford Ranger Ext Travel 2.5 Series VS RR CDCV Coilover Kit

• High strength alloy CNC machined lower bar pin
• ICON engineered coil springs
• Corrosion resistant CAD plated shock body with 7/8" shaft
• ICON CDCV equipped for external tuneability of your shocks
• Vehicle specific tuned for superior shock damping and control
• 100% Bolt-on - no cutting or welding necessary for installation
• External reservoirs to attain cooler operating temperatures during extended off-road use
• FK rod end bearings for extended longevity and minimal deflection
• 6061 Aircraft grade aluminum CNC machined components
• Increased wheel travel and ride quality over stock
• Adjustable 0-3.5" lift height

The ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks w/ CDCV are an incredible upgrade for the front end of the 2019-2023 Ford Ranger truck. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3.5” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDC Valve upgrade is included for those desiring an easy way to tune the ride externally with 10 settings from soft to hard. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your 2019-2023 Ranger. The ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks w/ CDCV are an incredible upgrade for the front end of the 2019-UP Ford Ranger truck. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3.5” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDC Valve upgrade is included for those desiring an easy way to tune the ride externally with 10 settings from soft to hard. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your 2019-UP Ranger.
