ICON 2005+ Ford Super Duty Radius Arm System | 64041

OEM Wheels & Tires Fitment: Yes Recommended Aftermarket Tires: Up to a 37" x 12.50" Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset TECH NOTE: Compatible with 0-3" front lift height without need for caster bushings TECH NOTE: Radius arm drop brackets required for use with 4-7” lift heights. (ICON part # 64040, 64045, or, 64055)

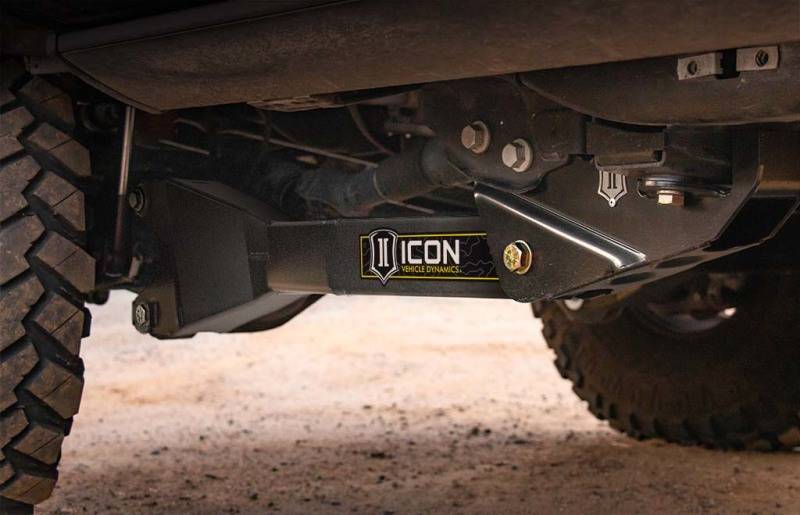

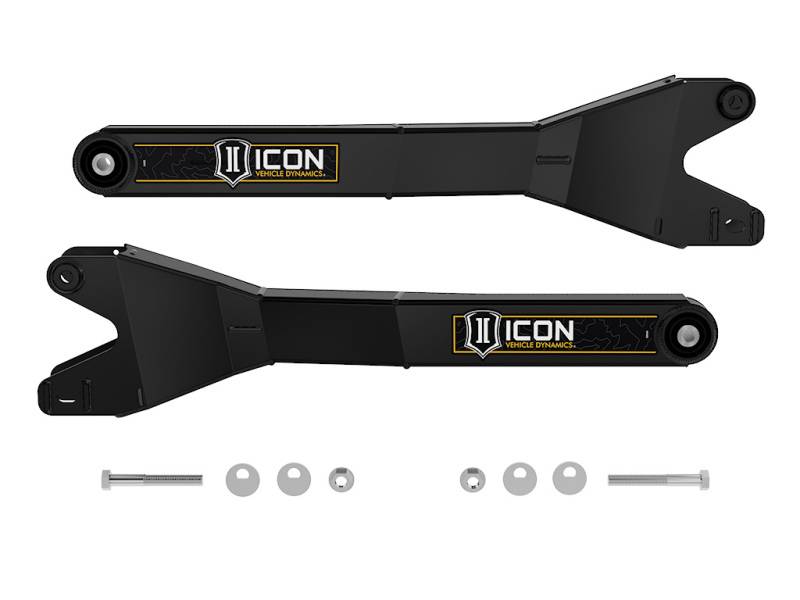

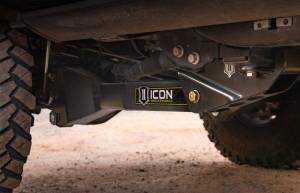

ICON 2005+ Ford Super Duty Radius Arm System RADIUS ARM KIT

• Built in caster adjustment for optimized return to center
• Fully boxed design
• Semi-gloss black powder coat finish
• CNC machined and laser cut steel components
• Replaceable sealed pivot bushing provides maintenance free operation
• Ability to have a 5.5” backspace wheel with 37” tires without contact with the arm at steering lock

The ICON Vehicle Dynamics Ford 2005-2022 F-250, F-350, and F-450 Super Duty Radius Arm System is designed with adjustable caster cams for use with stock height trucks up to 3” of front lift with the radius arm installed in the factory pivot. When used in conjunction with an ICON radius arm drop bracket system, proper caster can also be maintained for 4” to 7" lifts, including coilover conversion systems. They feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37” tall tire clear without coming in contact with the radius arm. The ICON Vehicle Dynamics Ford F-250 & F-350 Super Duty Radius Arm System is designed with adjustable caster cams for use with 2.5-3” lifts with the radius arm installed in the factory pivot, eliminating the need for caster bushings. When used in conjunction with an ICON radius arm drop bracket system, proper caster can also be maintained for 4.5” and 7" lifts, including coilover conversion systems. They feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37” tall tire clear without coming in contact with the radius arm.
