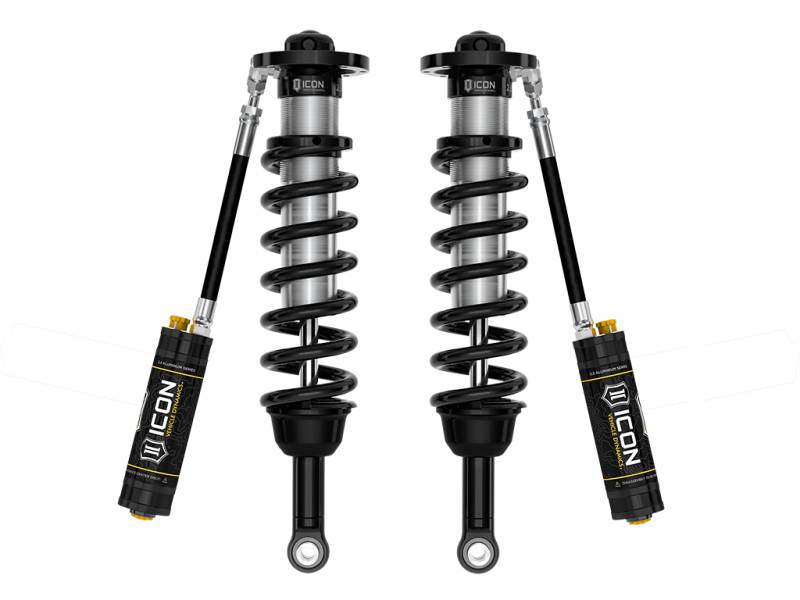

ICON 23-24 Toyota Sequoia TRD Pro 2.5 VS RR CDCV Coilover Kit | 58772C

APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install APPLICATION NOTE #189: For Sequoia TRD Pro ICON Diff Drop (part# 55156) is recommended but not required. If installing ICON Diff Drop, ICON Skid Plate Spacer Kit (part# 55164) is also required. APPLICATION NOTE #190: Designed for use with stock billet TRD front upper control arms APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle. APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range. OEM Wheels & Tires Fitment: Yes Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required) Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 5.75” Backspace / 25mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 6.00” Backspace / 25mm Offset

COILOVER KIT ICON 23-24 Toyota Sequoia TRD Pro 2.5 VS RR CDCV Coilover Kit

• ICON engineered coil springs
• Increased wheel travel and improved ride quality over stock
• Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
• 6061 Aircraft grade aluminum CNC machined components
• Fully rebuildable and re-tunable
• Specifically designed shock lengths for compatibility with Sequoia TRD Pro's stock front upper control arms
• Remote reservoirs maintain cooler operating temperatures during extended off-road use
• Adjustable ride height offers 1-2.5" of front lift over stock on Sequoia TRD Pro
• ICON CDCV equipped for 10 settings of external compression damping adjustment
• FK rod end bearings for extended longevity and minimal deflection
• Vehicle specific tuned for superior shock damping and control

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2023-2025 Toyota Sequoia TRD Pro. These adjustable coilovers allow up to 1-2.5” of lift height adjustability on Sequoia TRD Pro, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. Additionally, their vehicle specific shock length allows the stock, billet TRD front upper control arms to be utilized with the new suspension system, eliminating the requirement for ICON front UCAs. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Sequoia TRD Pro.
