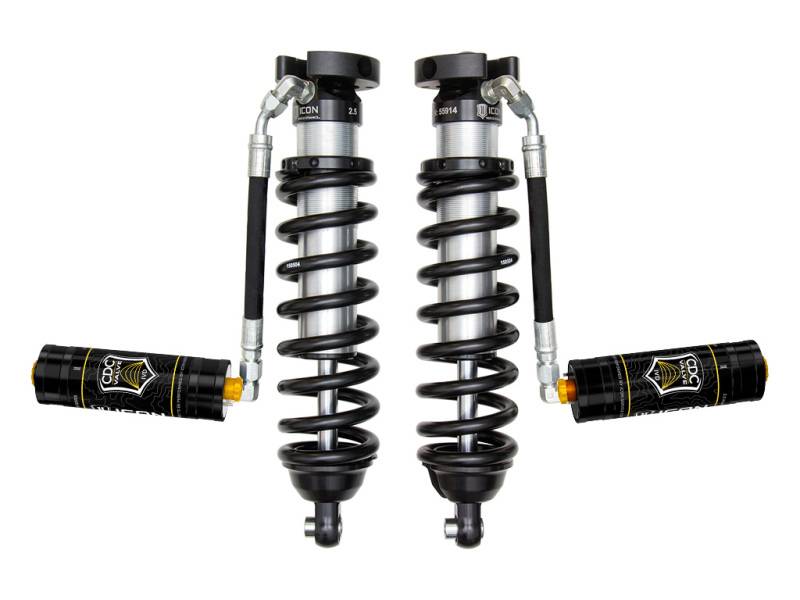

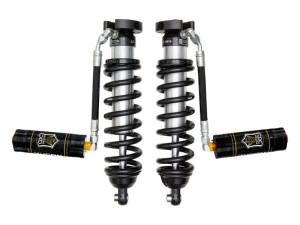

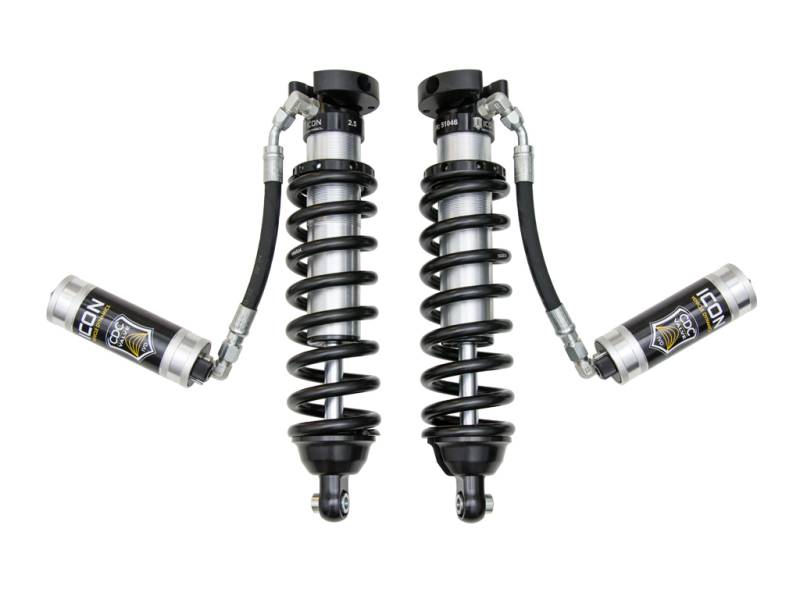

ICON 96-04 Toyota Tacoma Ext Travel 2.5 Series Shocks VS RR CDCV Coilover Kit | 58715C

APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms only APPLICATION NOTE #185: Will not fit 2WD Tacoma with 5 wheel lug studs APPLICATION NOTE #47: 700Lb/In Expedition Coil available for heavier equipped vehicles APPLICATION NOTE #55: Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle OEM Wheels & Tires Fitment: Yes Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.) Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00” Backspace / 0mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00” Backspace / 0mm Offset TECH NOTE: Aftermarket front upper control arms required for installation

COILOVER KIT ICON 96-04 Toyota Tacoma Ext Travel 2.5 Series Shocks VS RR CDCV Coilover Kit TACOMA COILOVERS

• Vehicle specific tuned front shocks for superior shock damping and control
• External reservoir to attain cooler operating temperatures during extended off-road use
• ICON CDCV equipped for 10 settings of external compression damping adjustment
• Improved ride quality over stock on and off-road
• 6061 Aircraft grade aluminum CNC machined components
• 100% Bolt-on - no cutting or welding necessary for installation
• Height-adjustable coilovers offer 0-3" of lift height adjustment
• FK Rod End bearings for extended longevity and minimal deflection
• Corrosion resistant CAD plated shock body with 7/8" induction hardened, chrome plated shaft
• Increased wheel travel over stock
• ICON engineered coil springs

ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks are an incredible upgrade for the front end of the 1996-2004 Toyota Tacoma 4WD/Prerunner. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Their extended travel length allows for more wheel travel but also requires the installation of aftermarket front upper control arms. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. When paired with ICON rear 2.0 Aluminum Series rear shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your Tacoma.
