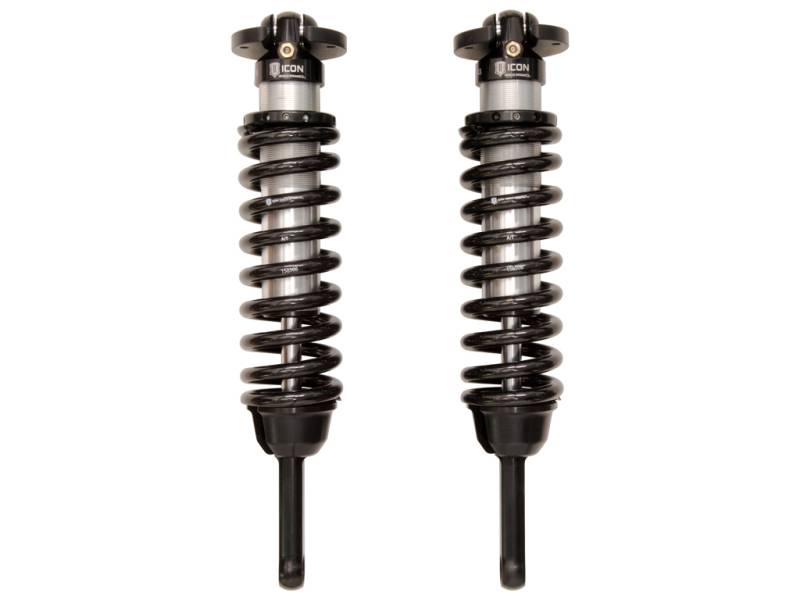

ICON 07-09 Toyota FJ / 03-09 Toyota 4Runner Ext Travel 2.5 Series VS IR Coilover Kit w/700lb SR | 58645-700

Factory Wheels & Tires Fitment: Yes Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 w/ 4.75" Backspace / 0mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9 w/ 5" Backspace / 0mm Offset TECH NOTE: 700lb/in spring rate only recommended for trucks with additional weight added to front end. See ICON Help Center for information. TECH NOTE: Aftermarket front upper control arms required for installation

FJ/T4R/GX COILOVERS ICON 07-09 Toyota FJ / 03-09 Toyota 4Runner Ext Travel 2.5 Series VS IR Coilover Kit w/700lb SR

• Extended Travel length requires installation of aftermarket front upper control arms
• High quality ICON-engineered coil springs with higher spring rate included to better support added weight to front end
• Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
• Adjustable coilovers yield 0-3.5" of front lift height
• Corrosion resistant CAD plated shock body with 7/8" shaft
• Bolt-in design makes for an easy install into OEM shock location
• FK Rod End bearings provide extended longevity and minimal deflection
• Superior low speed control reduces body roll and increases on-road stability
• Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life

ICON's Vehicle Specific (V.S.) 2.5 Series coilover shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Upgraded coil springs are included to better support added weight from accessories such as front bumpers and winches. These extended length versions offer increased wheel travel but also require the installation of aftermarket upper control arms in conjunction with the coilovers. Like all ICON shock absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable.
