ICON 00-06 Toyota Tundra Ext Travel 2.5 Series Shocks VS IR Coilover Kit | 58625

APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation. APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms ONLY APPLICATION NOTE #47: 700Lb/In Expedition Coil available for heavier equipped vehicles APPLICATION NOTE #55: Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle OEM Wheels & Tires Fitment: Yes Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.) Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00” Backspace / 0mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00” Backspace / 0mm Offset TECH NOTE: Aftermarket front upper control arms required for installation TECH NOTE: These "Extended Travel" length coilovers require installation of aftermarket front upper control arms. If using stock front upper control arms, consider "Standard Travel" versions, ICON part number 58620.

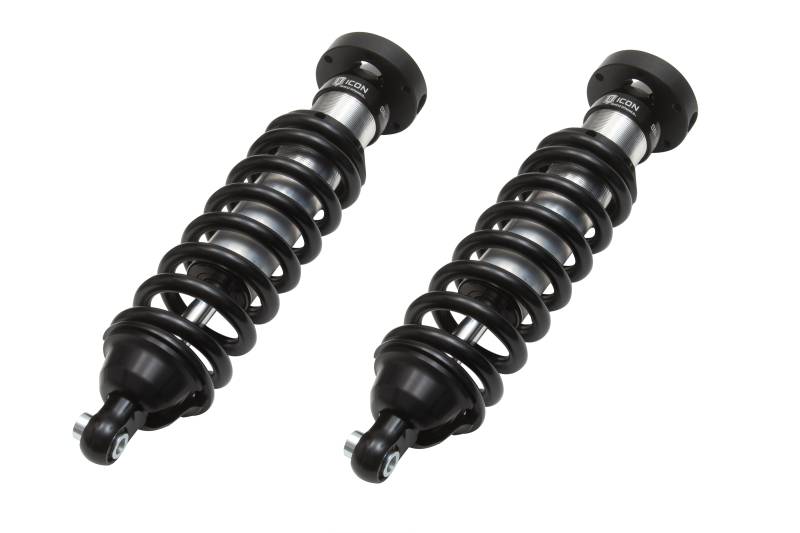

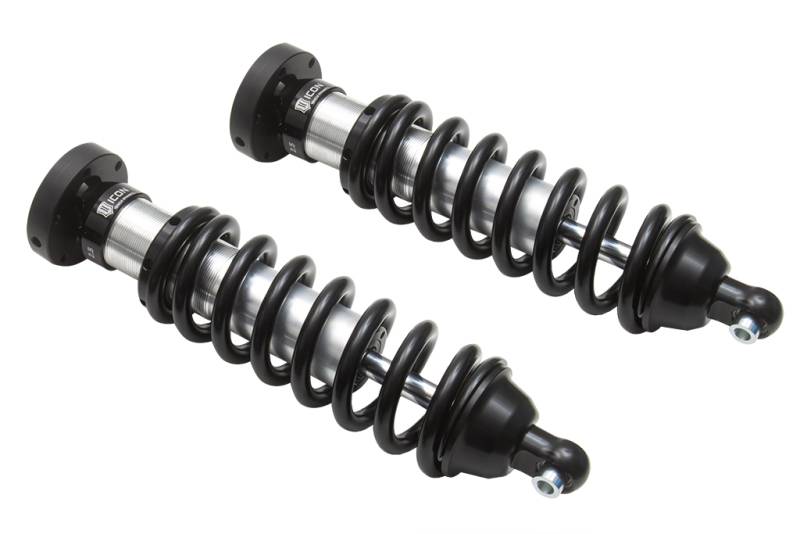

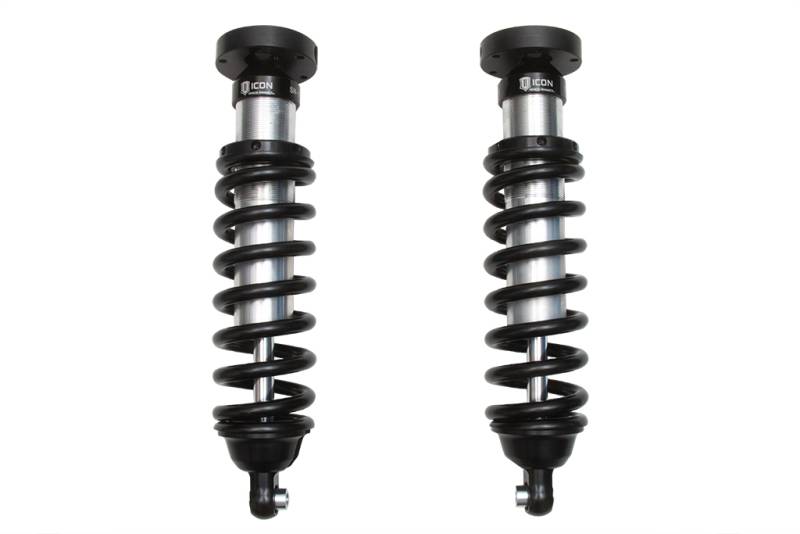

COILOVER KIT ICON 00-06 Toyota Tundra Ext Travel 2.5 Series Shocks VS IR Coilover Kit TUNDRA COILOVERS

• 6061 Aircraft grade aluminum CNC machined components
• Vehicle specific shock length and pairing with aftermarket front upper control arms yields maximum wheel travel
• FK rod end bearings for extended longevity and minimal deflection
• Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stock
• 2.5" diameter shock bodies with internal reservoirs for consistent performance
• ICON engineered coil springs
• Height-adjustable coilovers offer 0-2.5" of lift height adjustment over stock
• Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
• Fully rebuildable and re-tunable

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2000-2006 Toyota Tundra and 2001-2007 Toyota Sequoia. These adjustable coilovers allow up 0-2.5” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving, their large 2.5” shock body with increased piston surface area over stock components, yield increased front wheel travel along with superior ride quality and suspension performance both on- and off-road. Their extended travel length allows for more wheel travel but also requires the installation of aftermarket front upper control arms. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your vehicle.
