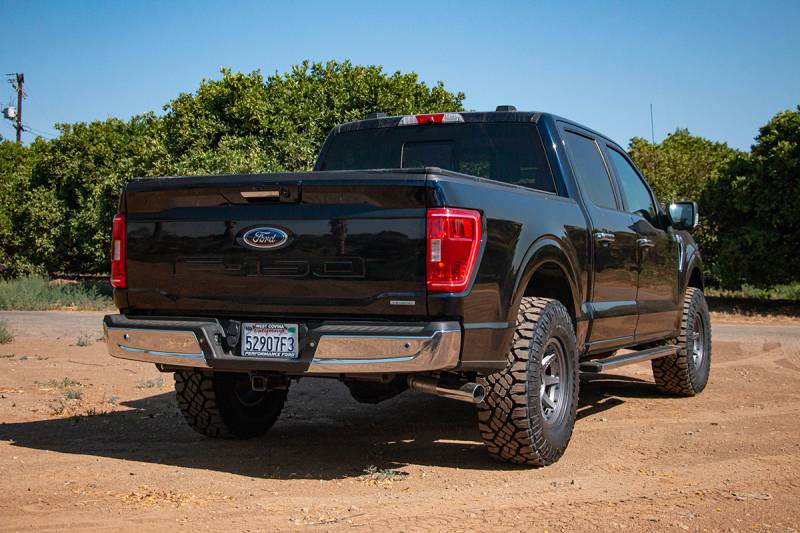

ICON 21-24 Ford F-150 4WD VS RR CDXS Coilover Kit | 91823X

APPLICATION NOTE #129: Will not work with factory installed electronically controlled suspension. APPLICATION NOTE #179: Only compatible with stock or original ICON Delta Joint UCAs. Not compatible with ICON Delta Joint Pro UCAs. APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle. OEM Wheels & Tires Fitment: Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended. Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset TECH NOTE: Models equipped with Power-Stroke diesel engines will have lift height range of 0-2.25" over stock TECH NOTE: Models equipped with PowerBoost hybrid engines will have lift height range of 0-2.5" over stock TECH NOTE: Not compatible with F-150 Tremor or F-150 Raptor TECH NOTE: Not compatible with models equipped with BlueCruise TECH NOTE: Only compatible with 4-wheel drive (4WD) models

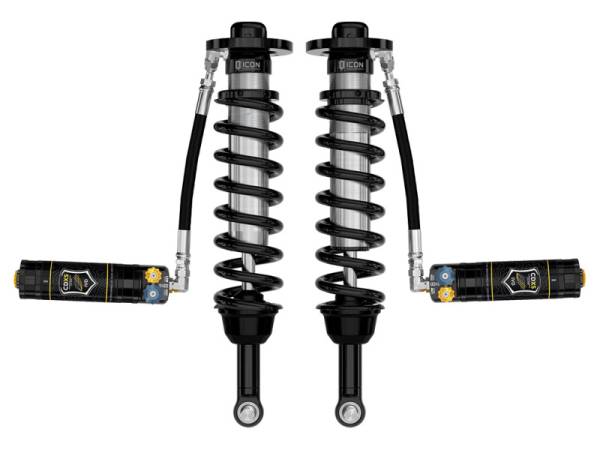

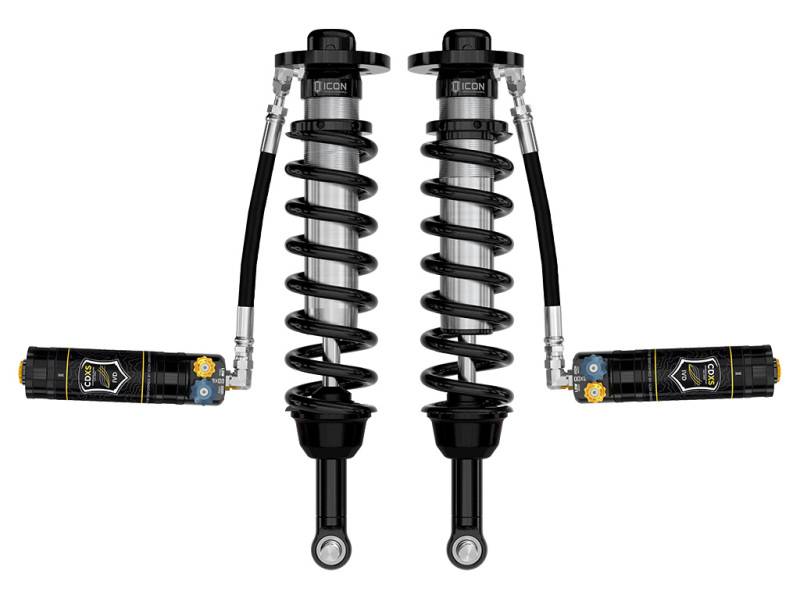

COILOVER KIT ICON 21-24 Ford F-150 4WD VS RR CDXS Coilover Kit

• Adjustable for 0-2.75" of front lift over stock
• Increased wheel travel and ride quality over stock
• 100% Bolt-on - no cutting or welding necessary for installation

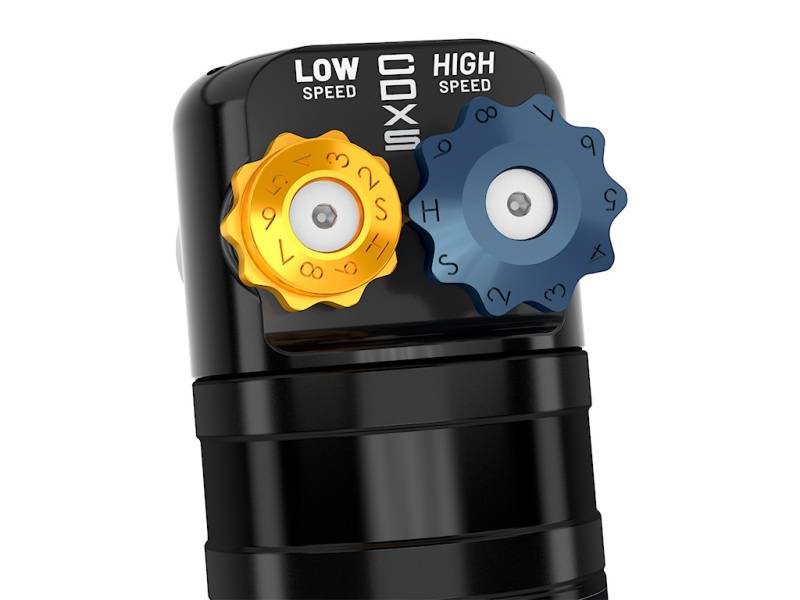

• ICON CDXS equipped for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
• Corrosion resistant CAD plated shock bodies with 7/8" induction hardened, chrome plated shafts

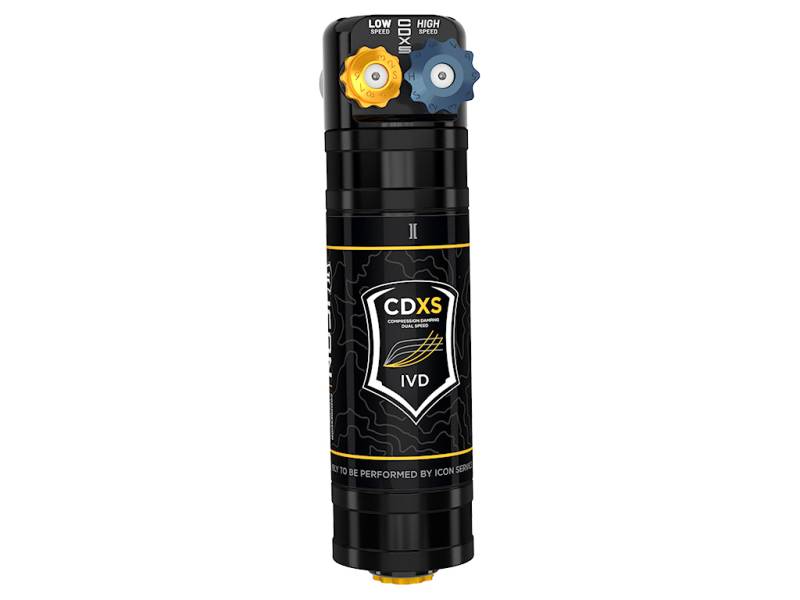

• External reservoirs to attain cooler operating temperatures during extended off-road use
• 6061 Aircraft grade aluminum CNC machined components
• FK rod end bearings for extended longevity and minimal deflection
• ICON engineered coil springs
• Vehicle specific tuned for superior shock damping and control
• High strength alloy CNC machined lower bar pins

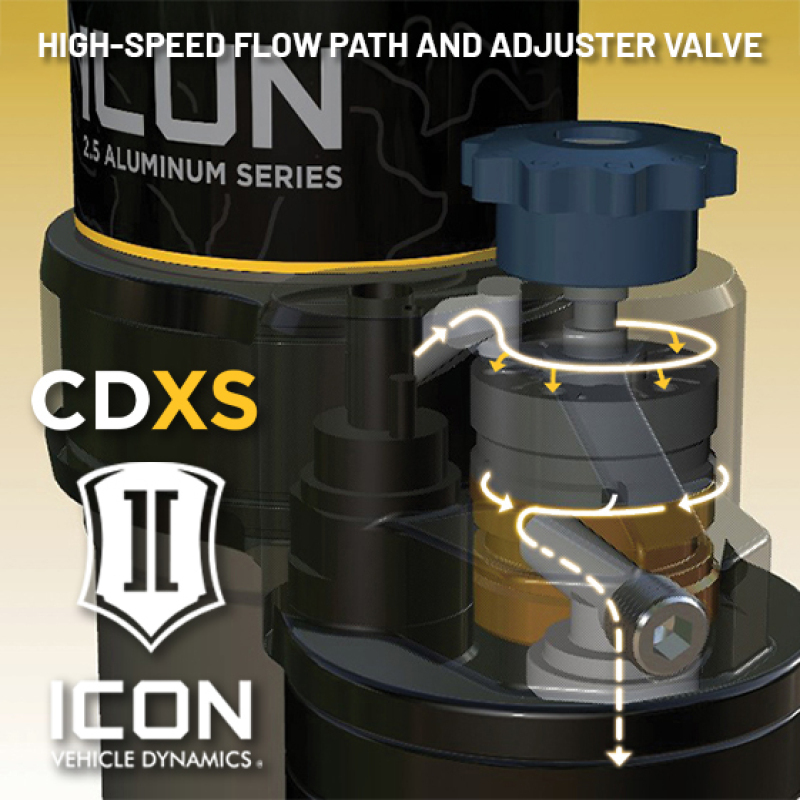

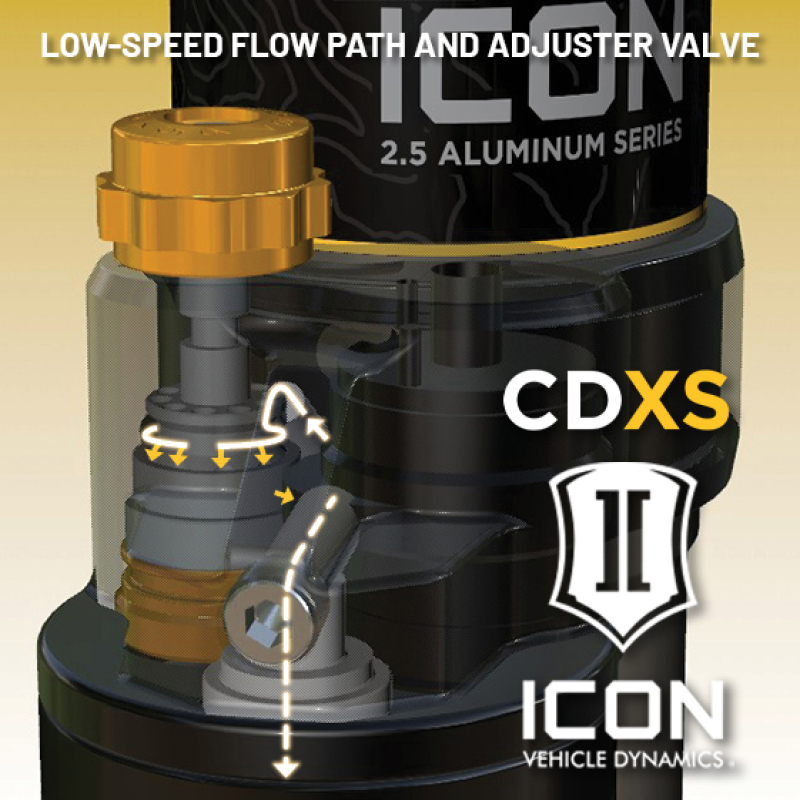

The ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks w/ CDXS are an incredible upgrade for the front end of the 2021-2024 Ford F-150 4WD truck. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-2.75” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. ICON's exclusive Compression Damping Dual Speed (CDXS) valves are included for precisely dialing in your suspension performance. CDXS controls fluid flow under compression, with independent adjustability of high speed and low speed compression force. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness. When paired with ICON rear 2.0 Aluminum Series or 2.5 Aluminum Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your 2021-2024 F-150 4WD.
