ICON 21-23 Ford F150 4WD 3in Lift 2.5 VS IR Coilover Kit | 91724

APPLICATION NOTE #129: Will Not Work With Factory Installed Electronically Controlled Suspension APPLICATION NOTE #152: ICON Delta Joint Pro Upper Control Arms Required APPLICATION NOTE #55: Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle. Factory Wheels & Tires Fitment: Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended. Recommended Aftermarket Tires: 34" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset TECH NOTE: Models equipped with Power-Stroke diesel engines will have lift height range of 2.25-3" over stock TECH NOTE: Models equipped with PowerBoost hybrid engines will have lift height range of 2.5-3.25" over stock TECH NOTE: Not compatible with F-150 Tremor or F-150 Raptor TECH NOTE: Not compatible with models equipped with BlueCruise TECH NOTE: Only compatible with 4-wheel drive (4WD) models

COILOVER KIT ICON 21-23 Ford F150 4WD 3in Lift 2.5 VS IR Coilover Kit

• Corrosion resistant CAD plated shock body with 7/8" shaft
• Increased wheel travel and ride quality over stock
• ICON engineered coil Springs
• High strength alloy CNC machined lower bar pin
• Adjustable for 2.75-3.5" of lift height over stock
• 100% Bolt-on - no drilling, cutting, or welding necessary for installation
• Internal nitrogen reservoir ensures consistent performance under hard use
• 6061 Aircraft grade aluminum CNC machined components
• FK rod end bearings for extended longevity and minimal deflection
• Vehicle specific tuned for superior shock damping and control

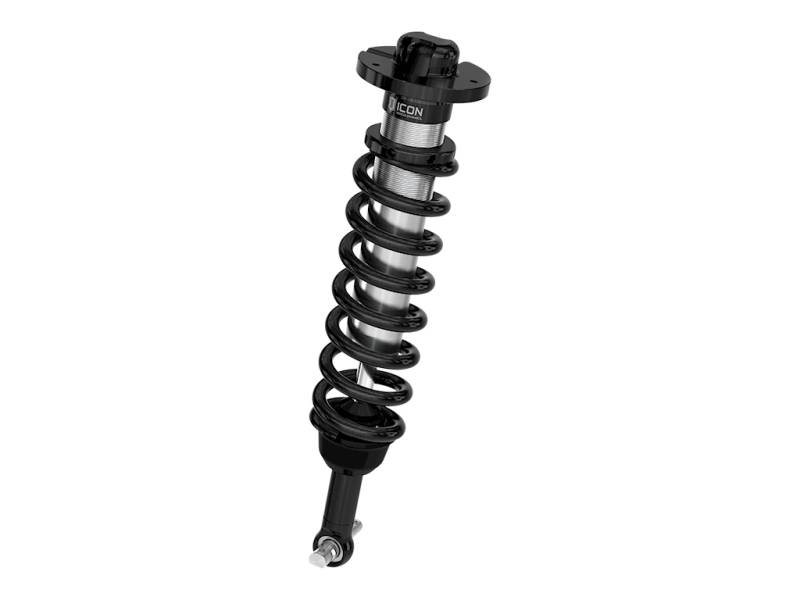

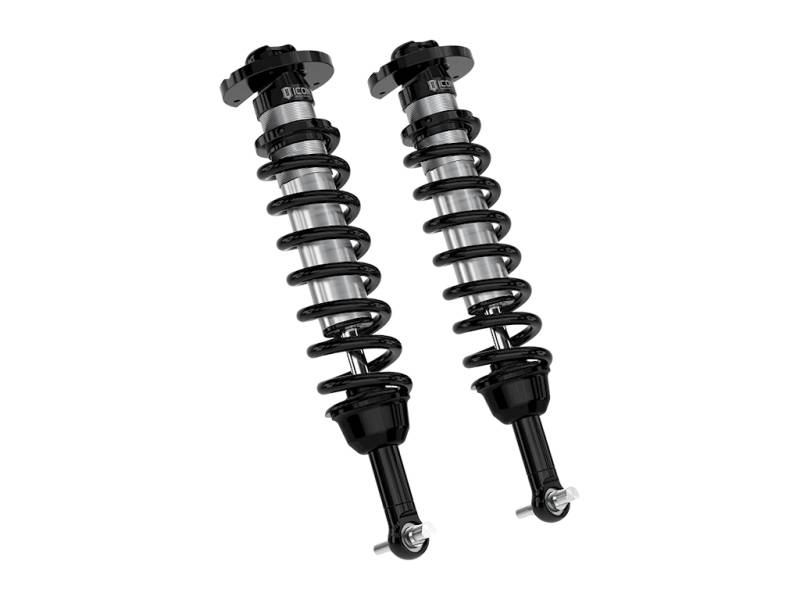

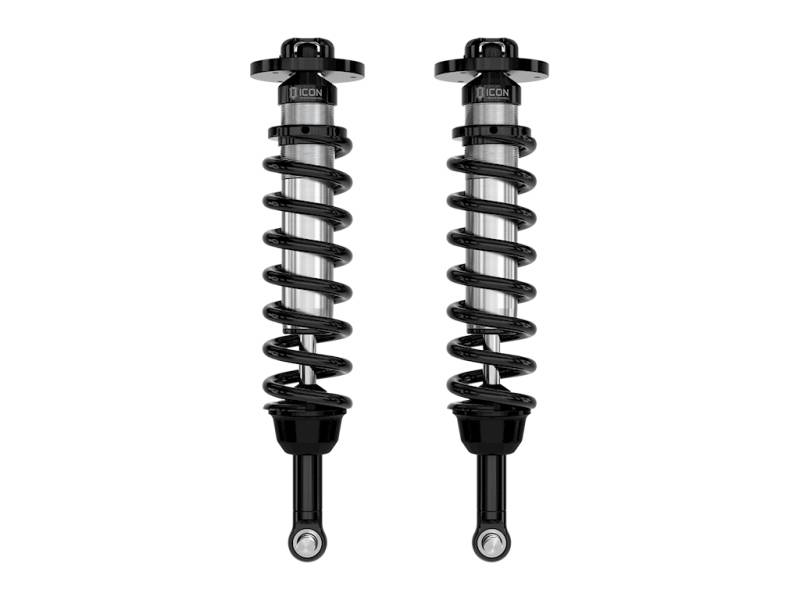

ICON Vehicle Dynamics V.S. Series 2.5” coilover shocks are an incredible upgrade for the front end of 2021-2024 Ford F-150 4WD trucks. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 2.75-3.5” of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your F-150 truck.
