ICON 21-23 Ford F150 Tremor 2.5-3in 2.5 Series VS IR Coilover Kit | 91723

APPLICATION NOTE #129: Will Not Work With Factory Installed Electronically Controlled Suspension APPLICATION NOTE #152: ICON Delta Joint Pro Upper Control Arms Required APPLICATION NOTE #55: Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle. Factory Wheels & Tires Fitment: Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended. Recommended Aftermarket Tires: 34" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset TECH NOTE: All F-150 submodels except Tremor also require ICON Front Knuckle Kit part number 94000. TECH NOTE: F-150 Tremor will have have lift height range of 2.5-3" over stock TECH NOTE: Models equipped with gasoline/flex fuel engines will have lift height range of 3.5-4.5" over stock TECH NOTE: Models equipped with Power-Stroke diesel engines will have lift height range of 3-4" over stock TECH NOTE: Models equipped with PowerBoost hybrid engines will have lift height range of 3.25-4.25" over stock TECH NOTE: Not compatible with F-150 Raptor TECH NOTE: Not compatible with models equipped with BlueCruise TECH NOTE: Only compatible with F-150 Tremor and 4-wheel drive (4WD) models

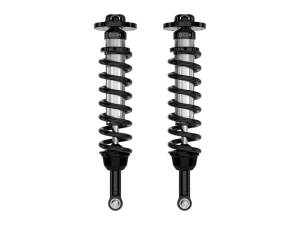

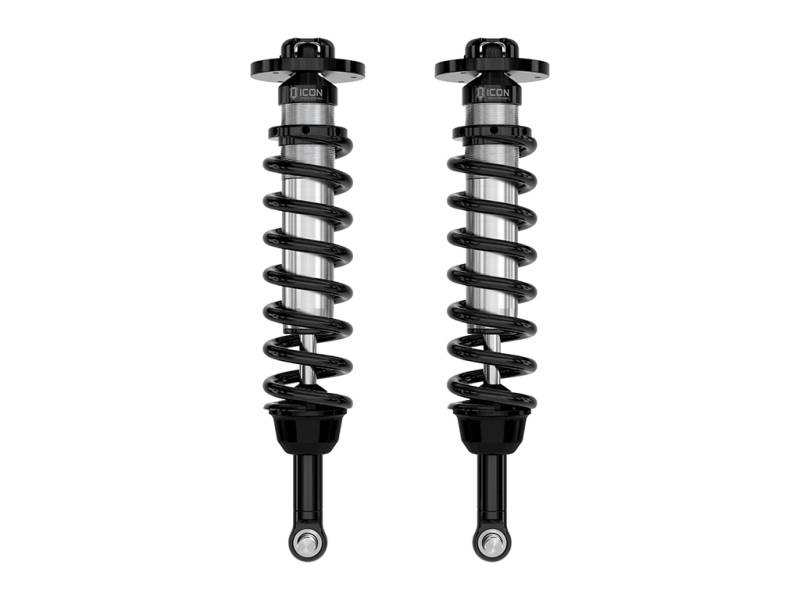

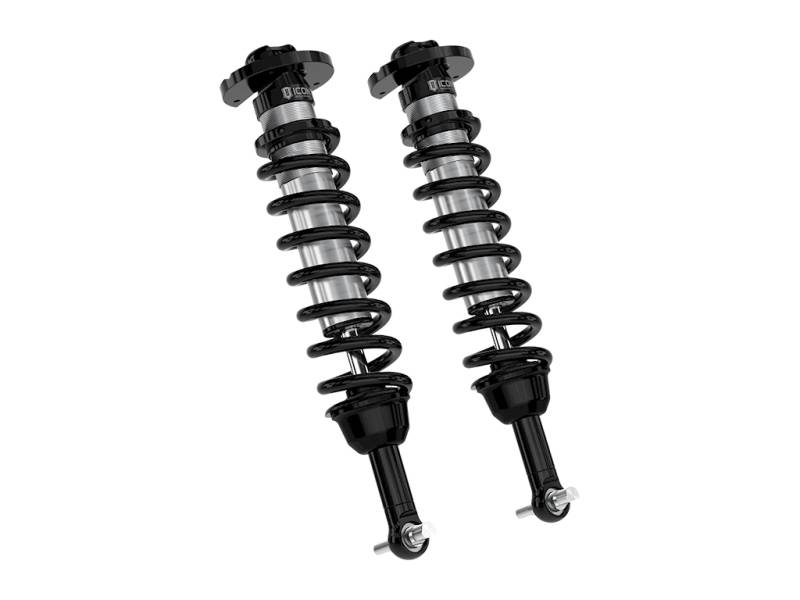

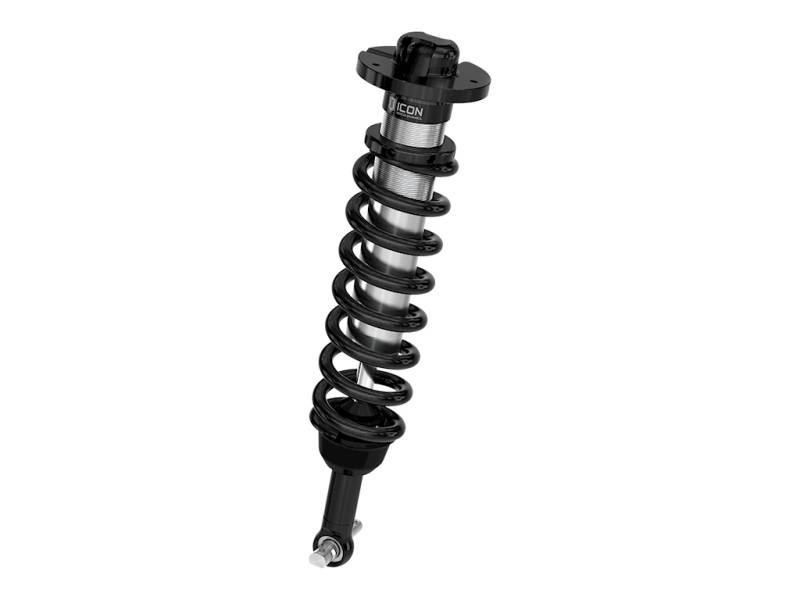

COILOVER KIT ICON 21-23 Ford F150 Tremor 2.5-3in 2.5 Series VS IR Coilover Kit

• Corrosion resistant CAD plated shock body with 7/8" shaft
• Adjustable for 2.5-3" of lift height over stock on F-150 Tremor or 3.5-4.5" over stock on other F-150 sub-models with ICON Front Knuckle Kit
• Application specific length for F-150 Tremor or other F-150 sub-models with ICON Front Knuckle Kit
• 100% Bolt-on - no drilling, cutting, or welding necessary for installation
• Internal nitrogen reservoir ensures consistent performance under hard use
• FK rod end bearings for extended longevity and minimal deflection
• ICON engineered coil Springs
• High strength alloy CNC machined lower bar pin
• Increased wheel travel and ride quality over stock
• 6061 Aircraft grade aluminum CNC machined components
• Vehicle specific tuned for superior shock damping and control

ICON Vehicle Dynamics V.S. Series 2.5” coilover shocks are an incredible upgrade for the front end of 2021-2024 Ford F-150 Tremor and F-150 4WD trucks equipped with ICON's Front Knuckle Kit. These coilovers feature an application specific length for F-150 Tremor or other F-150 sub-models equipped with ICON’s Front Knuckle Kit, allowing the most wheel travel possible as well as a taller lift height range than other ICON coilover options. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 2.5-3” of lift height adjustability on F-150 Tremor or 3.5-4.5” of lift height adjustability on other F-150 sub-models allow the use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. When paired with ICON rear 2.0 Aluminum Series or 2.5 Aluminum Series shocks, vehicle control will be balanced front to rear, resulting in the best overall driving experience for your F-150.
