ICON 2023+ GMC Canyon / 2023+ Chevrolet Colorado 2.5 Series Ext Travel VS RR CDEV Coilover Kit | 71671E

APPLICATION NOTE #152: ICON Delta Joint Pro upper control arms required APPLICATION NOTE #160: Will not fit GMC Canyon. Will not fit Chevrolet Colorado Trail Boss or ZR2. APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle. Factory Wheels & Tires Fitment: Yes Recommended Aftermarket Tires: 33" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) Recommended Aftermarket Wheels: 17x8.5" w/ 5.46” Backspace / 18mm Offset TECH NOTE: Also requires installation of IIC kit (Part # 73000) and CDEV rear shocks (Part # 77751EP) TECH NOTE: An iOS operated device is required to run ICON Intelligent Control App

COILOVER KIT ICON 2023+ GMC Canyon / 2023+ Chevrolet Colorado 2.5 Series Ext Travel VS RR CDEV Coilover Kit

• ICON engineered coil springs
• 100% Bolt-on - no drilling, cutting, or welding necessary for installation
• 20% increase in front wheel travel and improved ride quality over stock
• Vehicle specific tuned for superior shock damping and control
• Corrosion resistant CAD plated 2.5” diameter shock bodies
• Adjustable for 1.75-2.5" of front lift height over stock
• 6061 Aircraft grade aluminum CNC machined components
• 7/8" diameter hardened chrome plated shafts
• Fully rebuildable and re-tunable

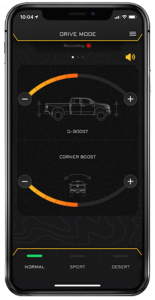

• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• High strength alloy CNC machined lower bar pin and application specific mounting hardware
• Remote reservoirs maintain cooler operating temperatures during extended off-road use
• PTFE lined spherical bearings for extended longevity and minimal deflection

ICON Vehicle Dynamics V.S. Series 2.5” coilover shocks are an incredible upgrade for the front-end of 2023-2024 Chevrolet Colorado WT, LT, and Z71 trucks. Specifically designed for the narrower track width of these Colorado submodels, their longer length offers a 20% increase in total front wheel travel compared to stock, for a total of 9.5” of front wheel travel. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 1.75-2.5” of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” diameter shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly. When paired with ICON CDEV rear shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your 2023-2024 Chevrolet Colorado WT, LT, and Z71.
