ICON 2005+ Ford F-250/F-350 Super Duty 4WD 0-2.5in Front 2.5 Series Shocks VS RR CDCV - Pair | 67800CP

APPLICATION NOTE #1: Only fits 4WD models APPLICATION NOTE #150: Shocks are fully serviceable OEM Wheels & Tires Fitment: Yes Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset TECH NOTE: Also requires Reservoir Doubler Kit part number 611003 if installing as secondary shock along with ICON front coilover conversion TECH NOTE: Can be installed as secondary shocks in OE location with ICON 2.5-3" lift coilover conversions TECH NOTE: Compatible with 0-2.75” of front lift over stock of 2020-2022 F-250/F-350 4WD equipped with Tremor package TECH NOTE: Compatible with 0-2” of front lift over stock of 2023-2025 F-250/F-350 4WD equipped with Tremor package TECH NOTE: Compatible with 0-3" of front lift over stock of 2023-2025 F-250/F-350 4WD without Tremor package TECH NOTE: Compatible with 0-3.75” of front lift over stock of 2020-2022 F-250/F-350 4WD without Tremor package TECH NOTE: Compatible with 0-3.75” of front lift over stock of 2020-2022 F-450 4WD TECH NOTE: Compatible with 0-3” of front lift over stock of 2005-2019 F-250/F-350/F-450 4WD TECH NOTE: Compatible with 0-3” of front lift over stock of 2023-2025 F-450 4WD

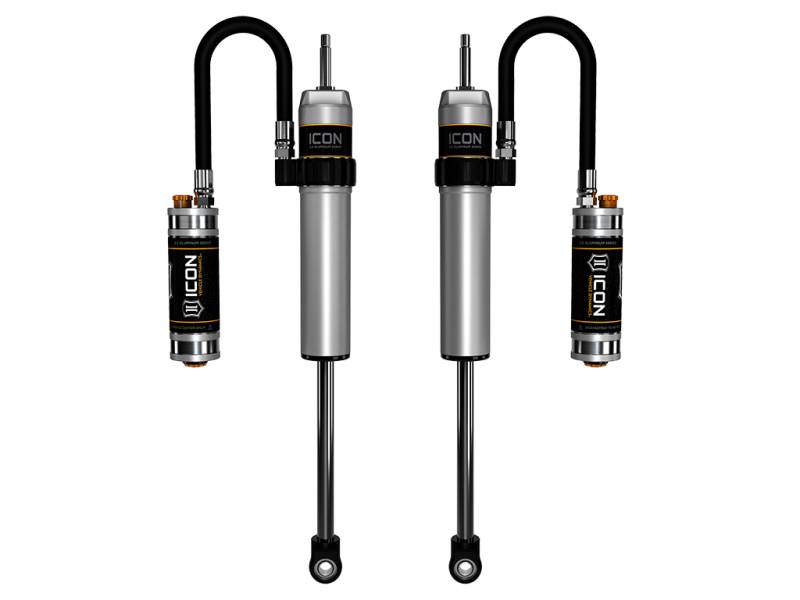

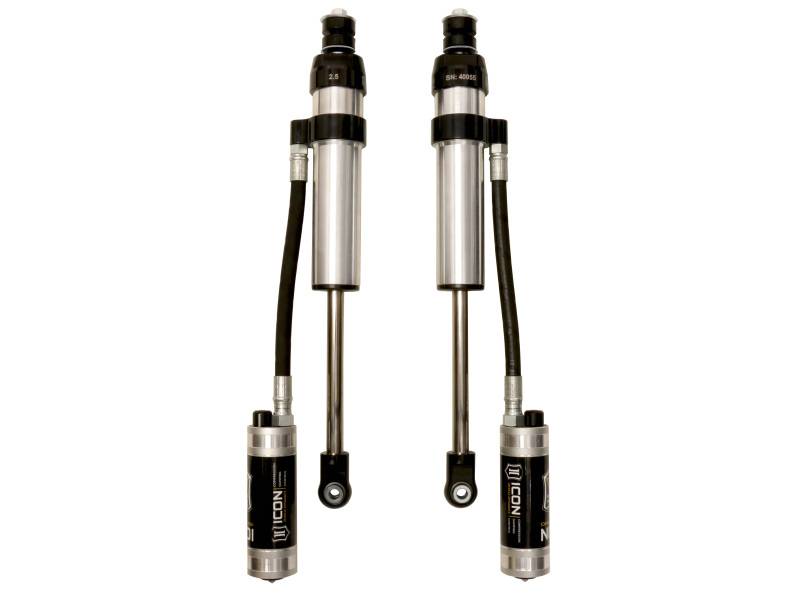

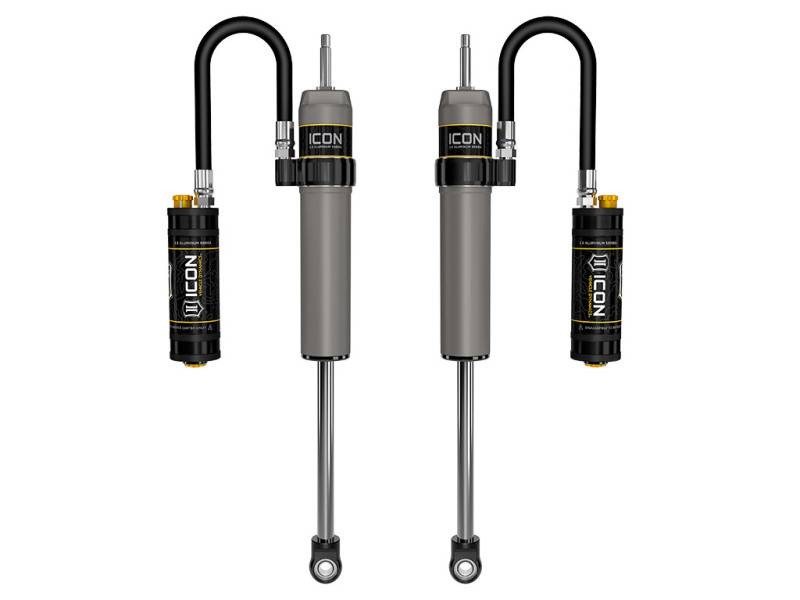

FRNT SHOCK ABSORBERS ICON 2005+ Ford F-250/F-350 Super Duty 4WD 0-2.5in Front 2.5 Series Shocks VS RR CDCV - Pair SHOCK ABSORBER PAIR

• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
• 7/8” diameter induction hardened, chrome plated shock shaft
• Nitrogen charged monotube design with remote reservoir
• 6061 aircraft grade aluminum CNC machined components
• 100% Rebuildable
• 100% Revalveable
• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• PTFE lined spherical bearings and application specific mounting hardware
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.
