ICON 2023 Ford F-250/F-350 Super Duty Radius Arm System | 64042

OEM Wheels & Tires Fitment: Yes Recommended Aftermarket Tires: Up to a 37" x 12.50" Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset TECH NOTE: Compatible 4-5.5" of front lift when paired with caster bushings, part number 62530, or ICON Radius Arm Drop Brackets, part number 64046 TECH NOTE: Compatible with 0-3" front lift height without need for caster bushings. TECH NOTE: Models equipped with OnBoard Scales and 1.5-3.5" of front lift also require sensor bracket part number 66203 TECH NOTE: Models equipped with OnBoard Scales and 4-6" of front lift also require sensor bracket part number 66204

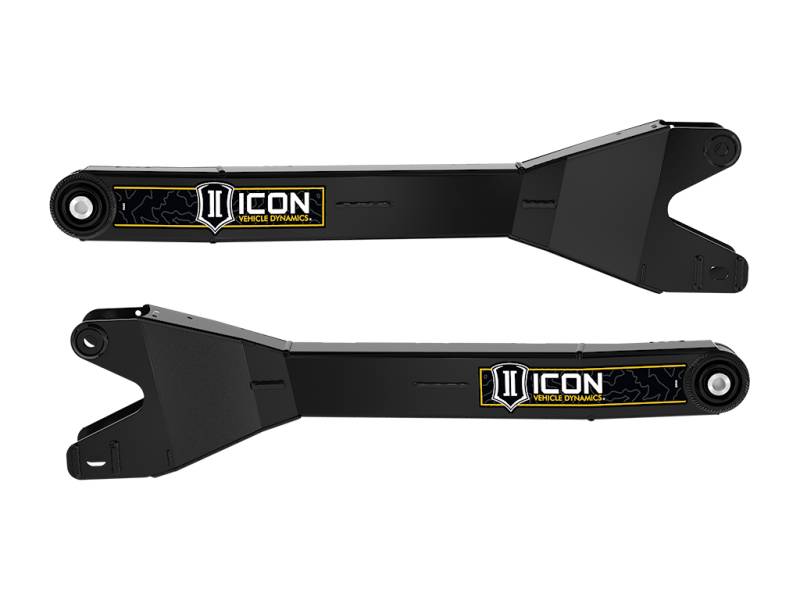

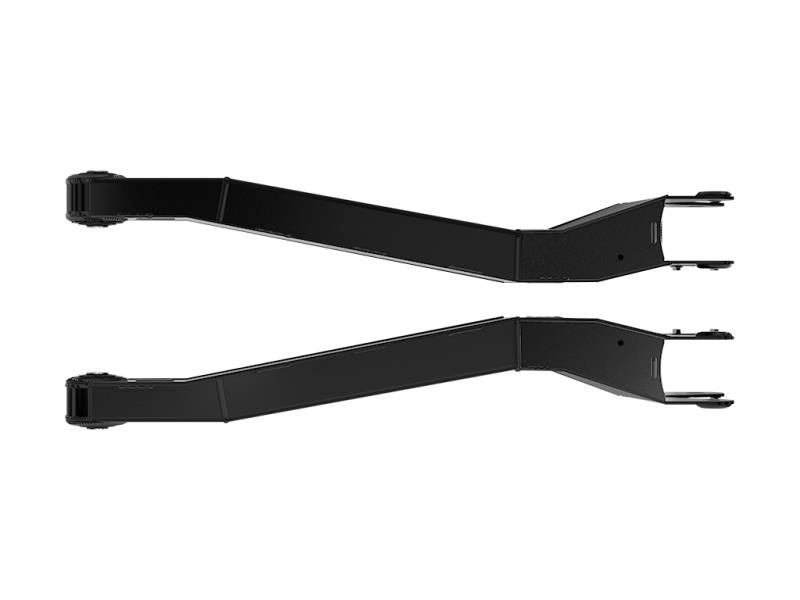

ICON 2023 Ford F-250/F-350 Super Duty Radius Arm System RADIUS ARM KIT

• Ability to have a 5.5” backspace wheel with 37” tires without contact with the arm at steering lock
• Fully boxed design
• Semi-gloss black powder coat finish
• CNC machined and laser cut steel components
• Built in caster adjustment for optimized return to center
• Replaceable sealed pivot bushing provides maintenance free operation

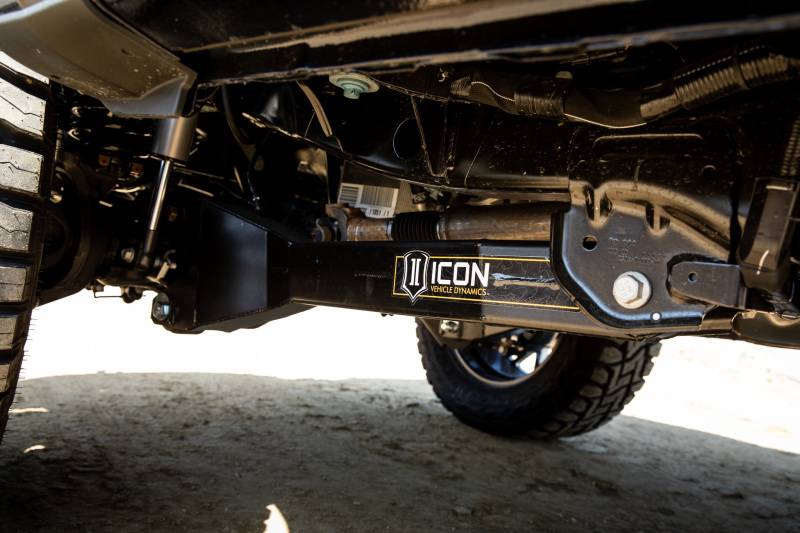

The ICON Vehicle Dynamics Ford 2023-2024 F-250 and F-350 Super Duty 4WD Radius Arm System is designed with adjustable caster cams for use with stock height trucks up to 3” of front lift with the radius arm installed in the factory pivot, eliminating the need for caster bushings. For taller lift heights from 4-5.5" of front lift, these radius arms can be installed in the factory pivots along with caster bushings to elimiate the need for radius arm drop brackets and improve ground clearance.They feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37” tall tire clear without coming in contact with the radius arm.
