ICON 2007+ Toyota Tundra 2.5 Series Shocks VS RR Coilover Kit | 58750

APPLICATION NOTE #110: Trimming required for recommended tire size APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation. APPLICATION NOTE #24: Factory UCA's will not align properly past 2.5” of lift. Above 2.5” of lift an aftermarket UCA is recommended. APPLICATION NOTE #55: Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle OEM Wheels & Tires Fitment: Yes Recommended Aftermarket Tires: 35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.) Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6.00” Backspace / 25mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset

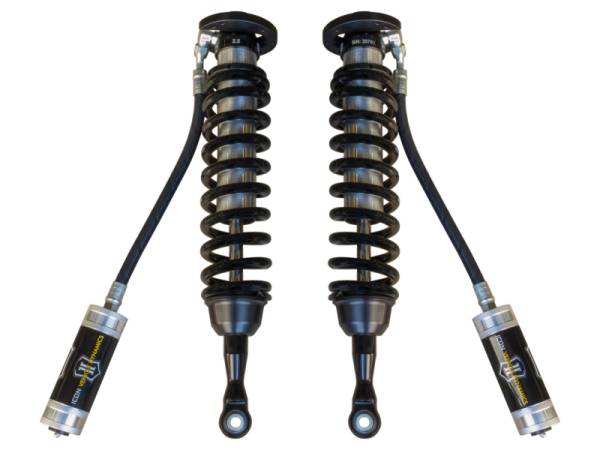

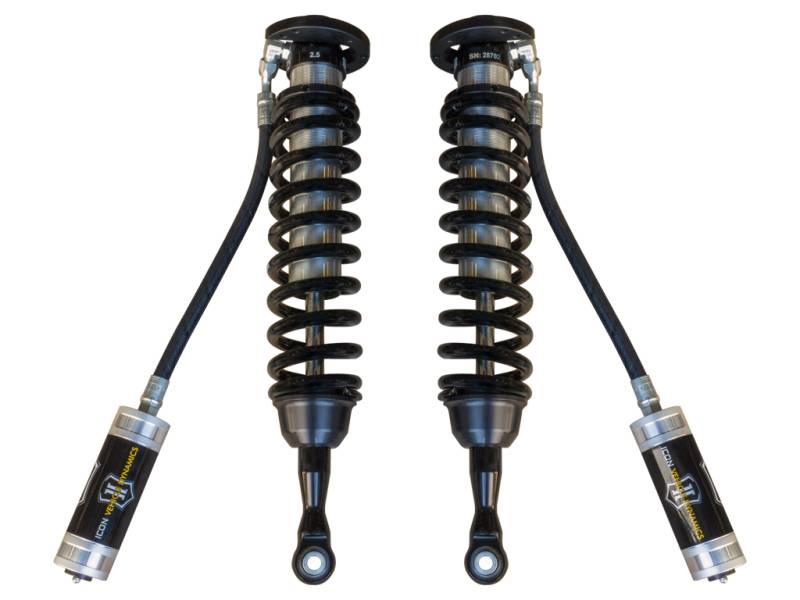

COILOVER KIT ICON 2007+ Toyota Tundra 2.5 Series Shocks VS RR Coilover Kit

• 6061 Aircraft grade aluminum CNC machined components
• Height-adjustable coilovers offer 1.-3" of lift height adjustment over stock
• Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
• Hose Length Optimized for Increased Fluid Transfer
• 2.5" diameter shock bodies with remote reservoirs
• Vehicle specific shock length yields maximum wheel travel
• Fully rebuildable and re-tunable
• ICON engineered coil springs
• FK rod end bearings for extended longevity and minimal deflection
• Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stock
• Remote reservoirs maintain cooler operating temperatures during extended off-road use

ICON Vehicle Dynamics has taken their already perfect performing coil-over shocks and given it the heat dissipation and long lasting performance of a full blown race shock. All of this has been developed to bolt on and install with ease. They increase suspension travel and dramatically increase the capabilities of your Tundra's front suspension. These coil-over’s come complete with all the hardware necessary to complete the installation. ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2007-2021 Toyota Tundra and 2008-2022 Toyota Sequoia. These adjustable coilovers allow up 1-3” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving, their large 2.5” shock body with increased piston surface area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tundra or Sequoia.
