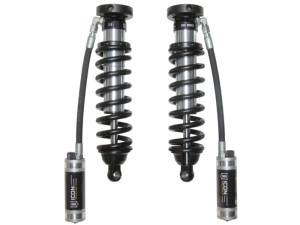

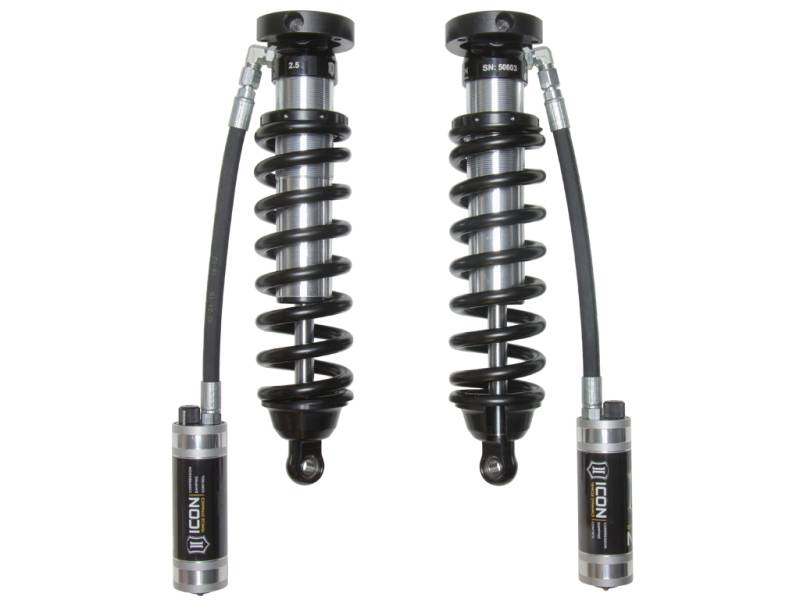

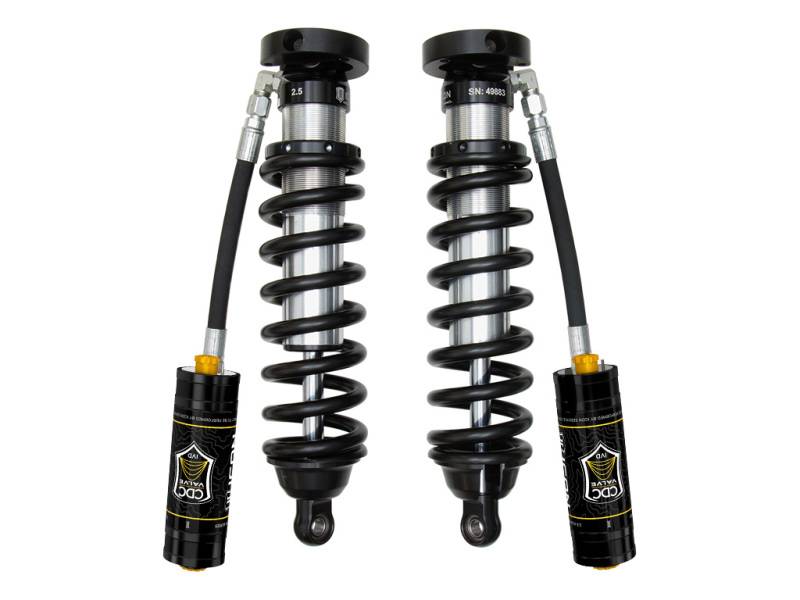

ICON 96-02 Toyota 4Runner Ext Travel 2.5 Series Shocks VS RR CDCV Coilover Kit | 58716C

Aftermarket front upper control arms required for installation APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms only APPLICATION NOTE #35: Remote reservoir mounting brackets may interfere with aftermarket bumper mounts/windshield washer bottles APPLICATION NOTE #47: 700Lb/In Expedition Coil available for heavier equipped vehicles APPLICATION NOTE #55: Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle OEM Wheels & Tires Fitment: Yes Recommended Aftermarket Tires: 33" x 11.25" (Larger tires may fit but fender trimming and modifications will be required.) Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00” Backspace / 0mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00” Backspace / 0mm Offset

COILOVER KIT FRONT COILOVERS ICON 96-02 Toyota 4Runner Ext Travel 2.5 Series Shocks VS RR CDCV Coilover Kit

• Increased wheel travel and ride quality over stock
• External reservoir to attain cooler operating temperatures during extended offroad use
• FK Rod End bearings for extended longevity and minimal deflection
• Corrosion resistant CAD plated shock body with 7/8" induction hardened, chrome plated shaft
• 6061 Aircraft grade aluminum CNC machined components
• Height-adjustable coilovers offer 0-3" of lift height
• ICON CDCV equipped for external tunability of your shocks
• Vehicle specific tuned for superior shock damping and control
• ICON engineered coil springs
• 100% Bolt-on - no drilling or welding necessary for installation

The ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks w/ CDCV are an incredible upgrade for the front end of the 1996-2002 4Runner. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDC Valve upgrade is included for those desiring an easy way to tune the ride externally with 10 adjustment settings from soft to hard. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your 4Runner.
