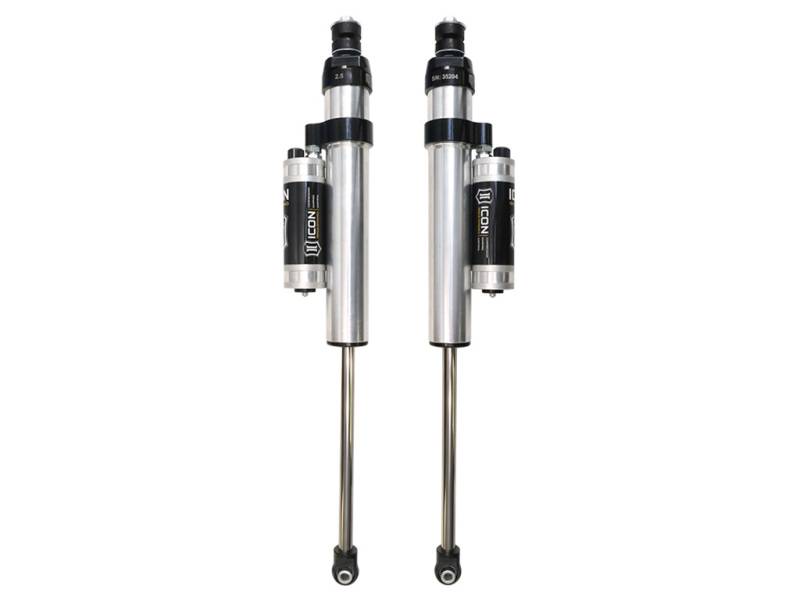

ICON 2019+ Ram 1500 0-3in Rear 2.5 Series Shocks VS PB CDCV - Pair | 217716CP

APPLICATION NOTE #105: Not for vehicles with rear factory air ride TECH NOTE: Compatible with 0-2.5" of rear lift on 2019-2023 Ram 1500 Rebel TECH NOTE: Compatible with 0-3" of rear lift on most Ram 1500 submodels TECH NOTE: Not compatible with 2021-Up Ram 1500 TRX trims. TECH NOTE: Will not fit 2019-2023 Ram 1500 Classic models TECH NOTE: Will not fit 2021-2023 Ram 1500 TRX

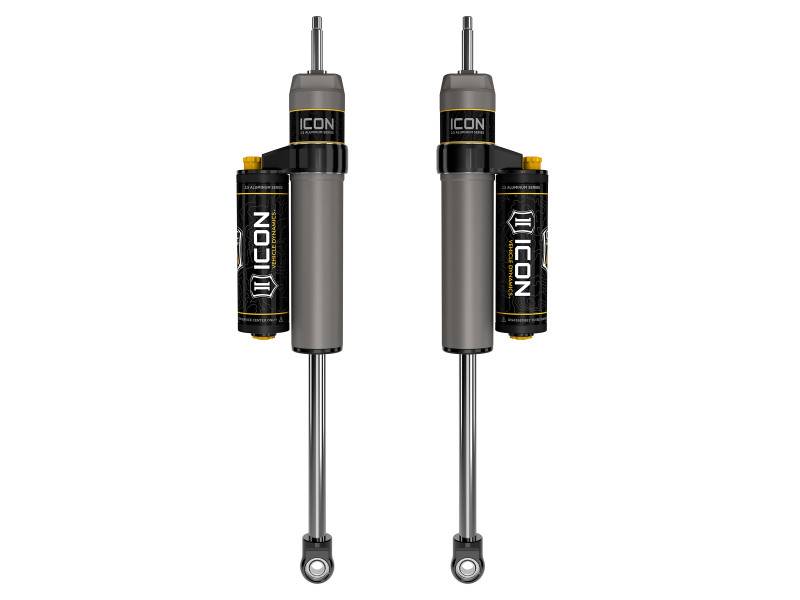

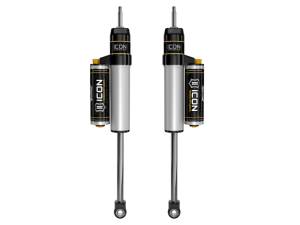

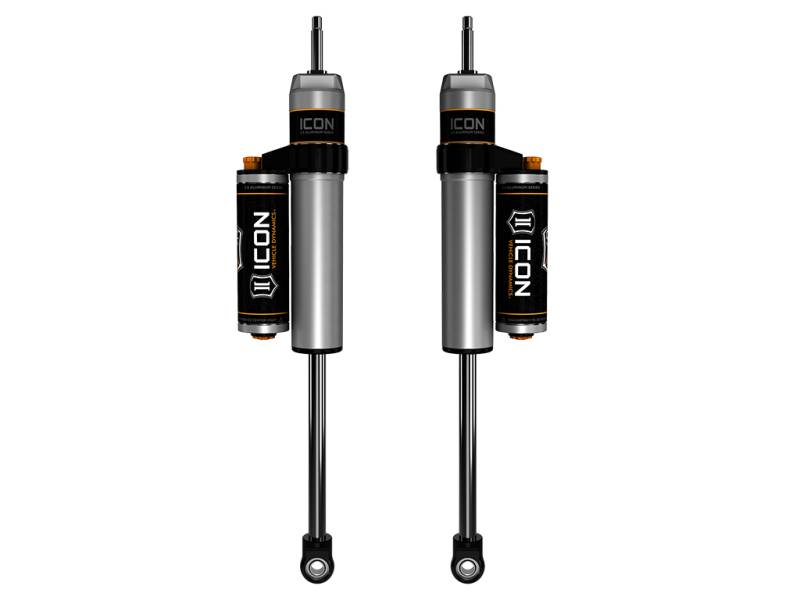

ICON 2019+ Ram 1500 0-3in Rear 2.5 Series Shocks VS PB CDCV - Pair REAR SHOCK ABSORBERS SHOCK ABSORBER PAIR

• 6061 aircraft grade aluminum CNC machined components

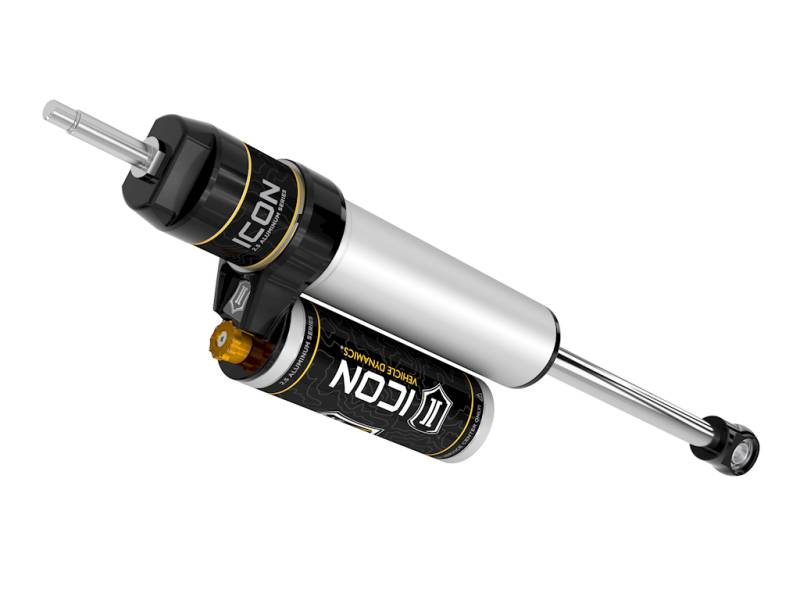

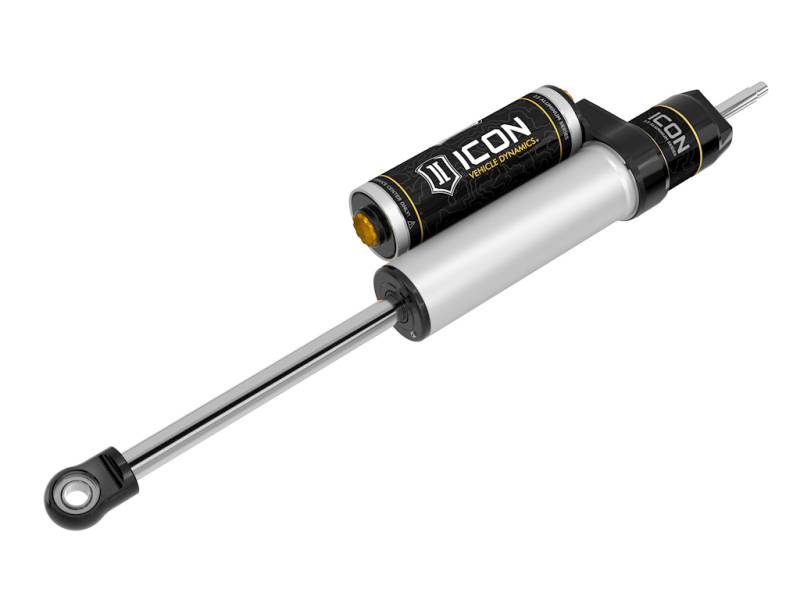

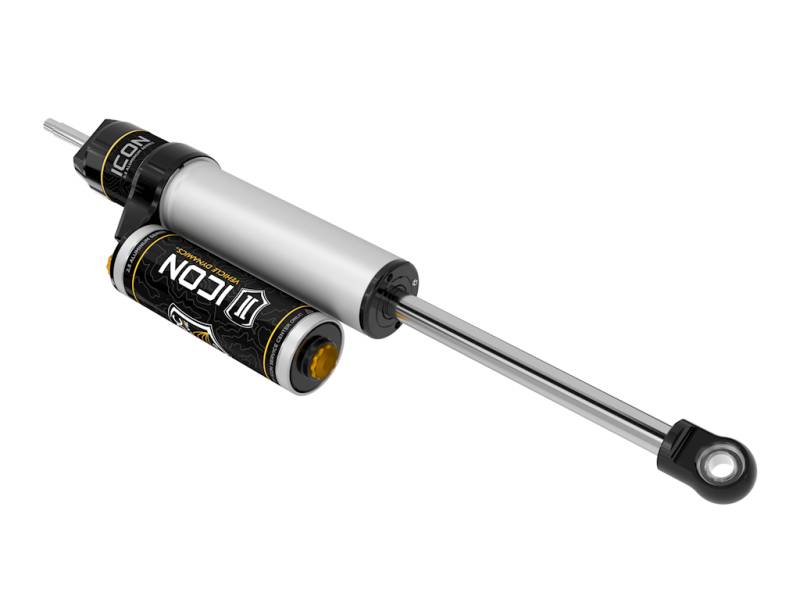

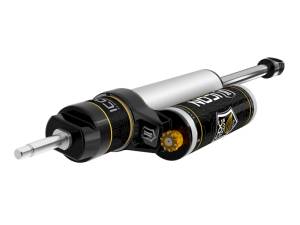

• Nitrogen charged monotube design with piggyback reservoir
• 7/8” diameter induction hardened, chrome plated shock shaft
• PTFE lined spherical bearings and application specific mounting hardware
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Piggyback reservoir design improves heat dissipation to reduce shock fade during prolonged use
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish

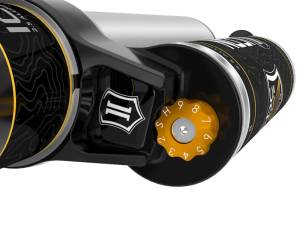

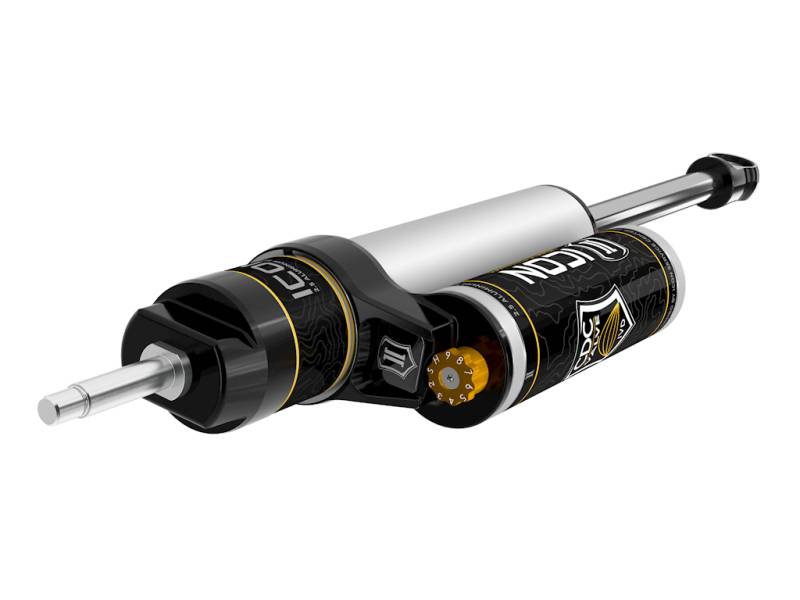

• ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• Double-sealed Schrader caps reduce risk of damage
• 100% Rebuildable
• 100% Revalveable

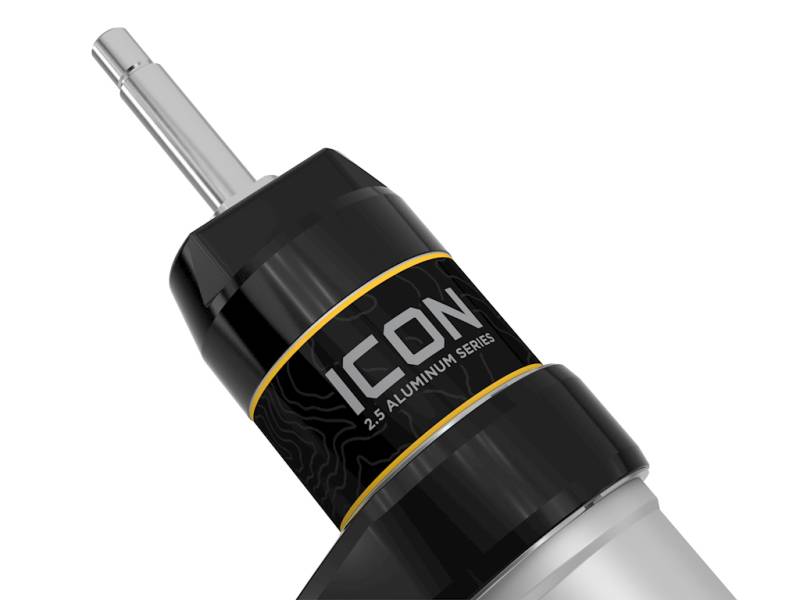

ICON’s 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Featuring one-piece impact extruded aluminum cylinders, these 2.5 Aluminum Series shocks offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Like all ICON'S Shock Absorbers, 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below thetop cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.
