ICON 2019+ Ram 1500 2-3in. 2.5 VS CDCV Coilover Kit | 211015C

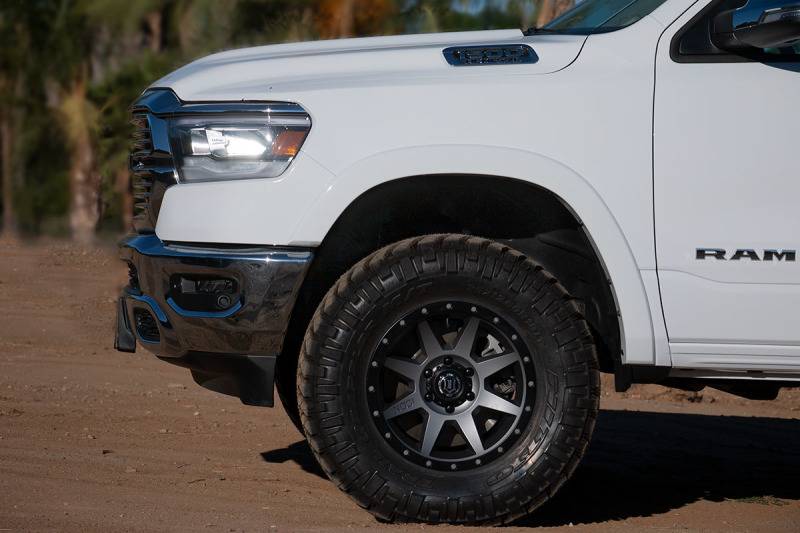

APPLICATION NOTE #100: Spring not rated for EcoDiesel equipped trucks APPLICATION NOTE #105: Not for vehicles with rear factory air ride APPLICATION NOTE #131: Will not fit 2019-UP Ram 1500 Classic models APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms only APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle. OEM Wheels & Tires Fitment: Yes Recommended Aftermarket Tires: 35" x 12.50" (fender trimming and modifications will be required.) Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00" Backspace / 0mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00" Backspace / 0mm Offset TECH NOTE: 2019-2023 Ram 1500 Rebel will have lift height range of 1.25-2.25" over stock TECH NOTE: Not compatible with 2020-Up Ram 1500 TRX trims TECH NOTE: Will not fit Ram 1500 TRX

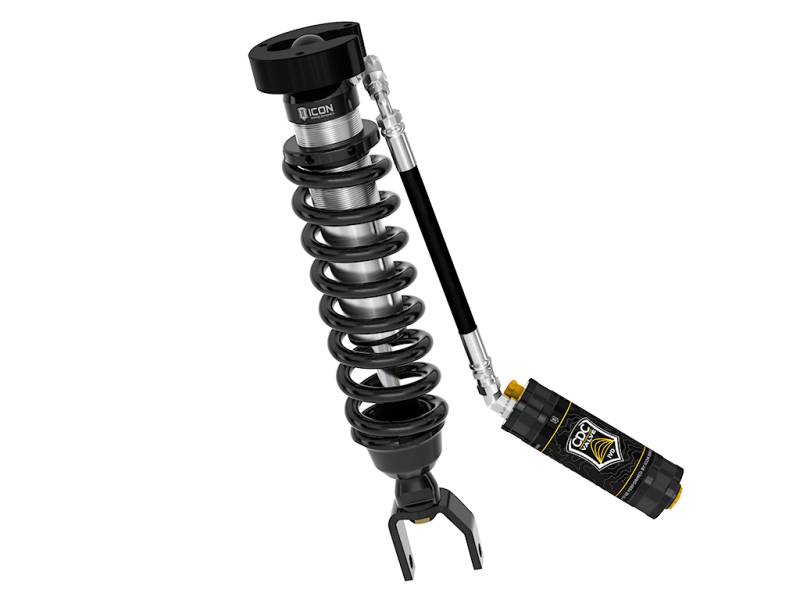

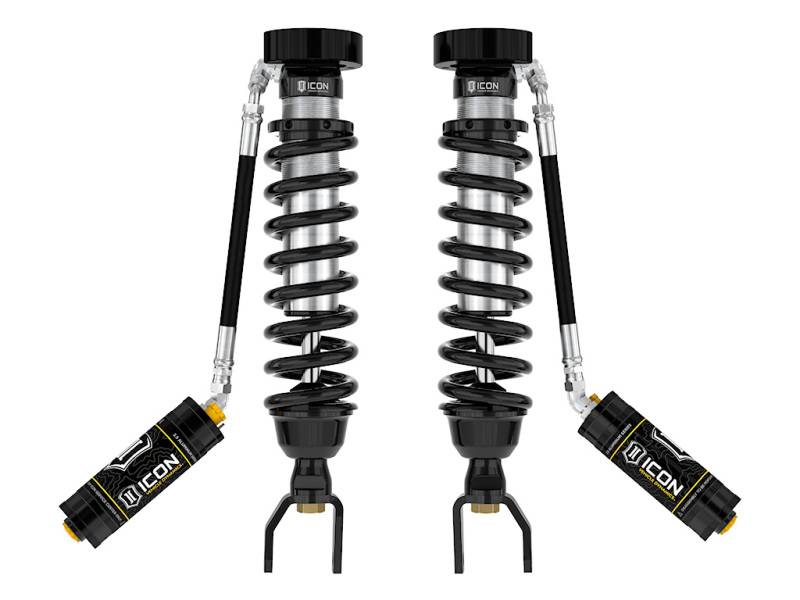

COILOVER KIT ICON 2019+ Ram 1500 2-3in. 2.5 VS CDCV Coilover Kit

• 100% Bolt-on - no drilling, cutting or welding necessary for installation
• ICON engineered coil springs
• Increased wheel travel and ride quality over stock
• 6061 Aircraft grade aluminum CNC machined components

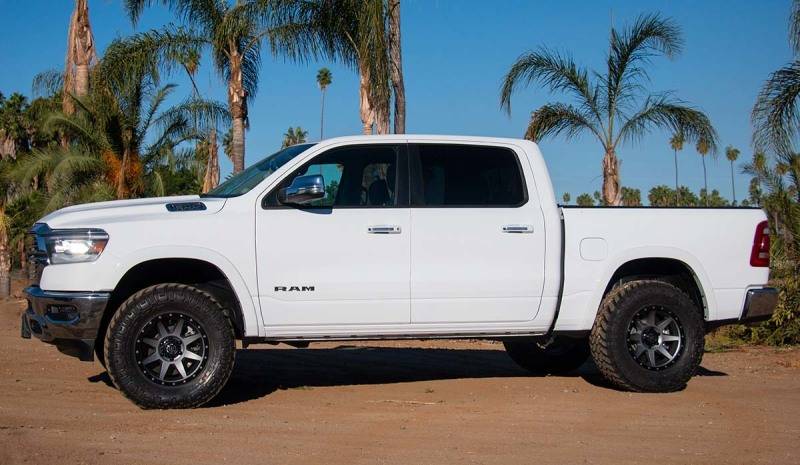

• Adjustable from 2-3" of front lift height over stock
• High strength alloy CNC machined lower mounting clevis
• ICON CDCV equipped for external tuneability of your shocks
• Vehicle specific tuned for superior shock damping and control
• FK rod end bearings for extended longevity and minimal deflection
• Corrosion resistant CAD plated shock body with 7/8" diameter shaft
• Unique valving developed for the lighter weight and chassis dynamics of the 2019-2023 Ram 1500
• Remote reservoirs maintain cooler operating temperatures and consistent operation during extended off-road use

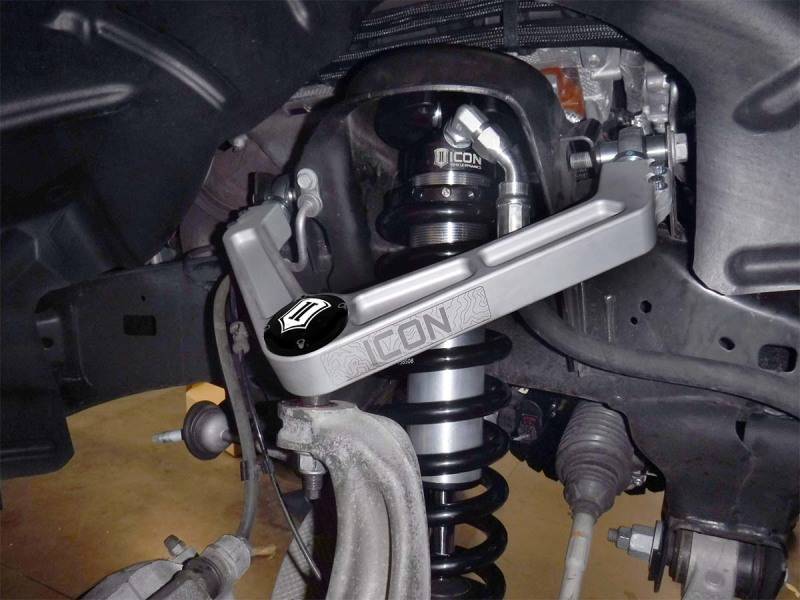

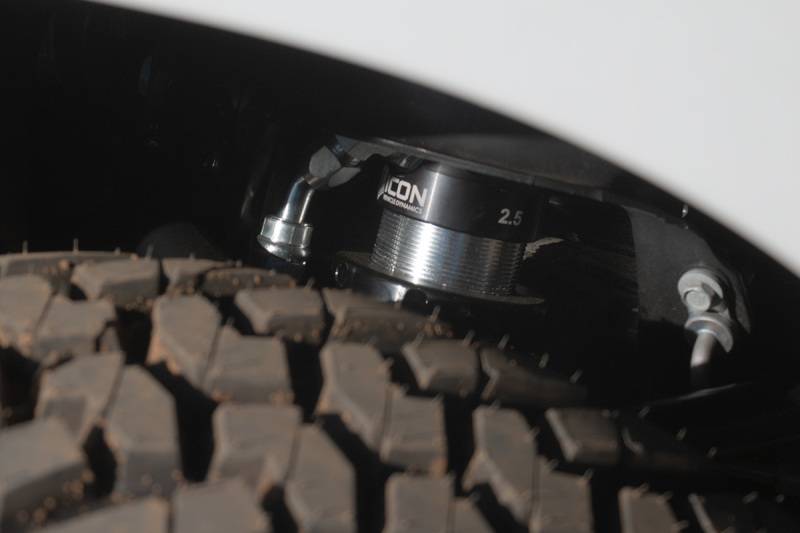

ICON Vehicle Dynamics V.S. 2.5 Series coilover shocks are an incredible upgrade for the front end of 2019-2023 Ram 1500 trucks. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 2-3” of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components and application specific length to maximize wheel travel provide improved damping ability and outstanding ride characteristics across varying types of terrain. These remote reservoir coilovers will maintain lower operating temperatures and offer more consistent operation during extended or aggressive off-road use compared to internal reservoir versions. The ICON CDC Valve upgrade is included for those desiring an easy way to tune the ride externally with 10 settings of compression damping adjustment, from soft to hard. When paired with ICON 2.0 Aluminum Series or 2.5 Aluminum Series rear shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ram 1500 truck. ICON Vehicle Dynamics V.S. 2.5 Series coilover shocks are an incredible upgrade for the front end of 2019-UP Ram 1500 trucks. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 2-3” of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components and application specific length to maximize wheel travel provide improved damping ability and outstanding ride characteristics across varying types of terrain. These remote reservoir coilovers will maintain lower operating temperatures and offer more consistent operation during extended or aggressive off-road use compared to internal reservoir versions. The ICON CDC Valve upgrade is included for those desiring an easy way to tune the ride externally with 10 settings of compression damping adjustment, from soft to hard. When paired with ICON 2.0 Aluminum Series or 2.5 Aluminum Series rear shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ram 1500 truck.
