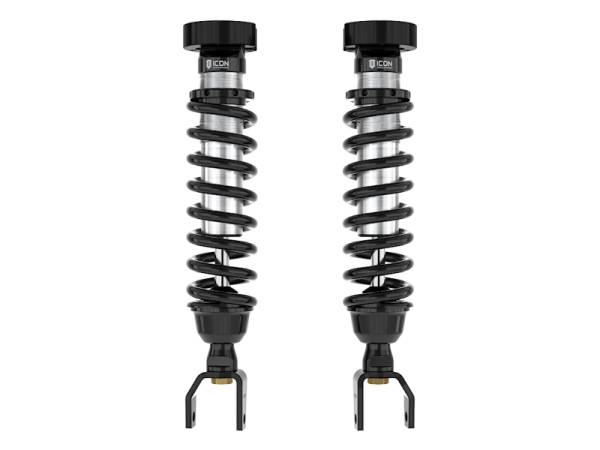

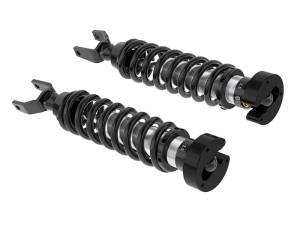

ICON 19-UP Ram 1500 2-3in 2.5 VS IR COILOVER KIT | 211010

APPLICATION NOTE #100: Spring not rated for EcoDiesel equipped trucks APPLICATION NOTE #105: Not for vehicles with rear factory air ride APPLICATION NOTE #131: Will not fit 2019-UP Ram 1500 Classic models APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms only APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle. OEM Wheels & Tires Fitment: Yes Recommended Aftermarket Tires: 35" x 12.50" (fender trimming and modifications will be required.) Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00" Backspace / 0mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00" Backspace / 0mm Offset TECH NOTE: 2019-2023 Ram 1500 Rebel will have lift height range of 1.25-2.25" over stock TECH NOTE: Not compatible with 2020-Up Ram 1500 TRX trims TECH NOTE: Will not fit Ram 1500 TRX

COILOVER KIT ICON 19-UP Ram 1500 2-3in 2.5 VS IR COILOVER KIT

• High strength alloy CNC machined lower mounting clevis
• 6061 Aircraft grade aluminum CNC machined components
• Vehicle specific tuned for superior shock damping and control
• Increased wheel travel and ride quality over stock
• ICON engineered coil springs
• FK rod end bearings for extended longevity and minimal deflection
• Corrosion resistant CAD plated shock body with 7/8" diameter shaft
• 100% Bolt-on - no drilling, cutting or welding necessary for installation
• Unique valving developed for the lighter weight and chassis dynamics of the 2019-2023 Ram 1500
• Adjustable from 2-3" of front lift height over stock

ICON Vehicle Dynamics V.S. 2.5 Series coilover shocks are an incredible upgrade for the front end of 2019-2023 Ram 1500 trucks. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 2-3” of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components and application specific length to maximize wheel travel provide improved damping ability and outstanding ride characteristics across varying types of terrain. When paired with ICON 2.0 Aluminum Series or 2.5 Series rear shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ram 1500 truck. ICON Vehicle Dynamics V.S. 2.5 Series coilover shocks are an incredible upgrade for the front end of 2019-UP Ram 1500 trucks. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 2-3” of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components and application specific length to maximize wheel travel provide improved damping ability and outstanding ride characteristics across varying types of terrain. When paired with ICON 2.0 Aluminum Series or 2.5 Series rear shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ram 1500 truck.
