4 Inch Lift Kit | 2021-2026 Ford F-150 4WD | Strut Spacer w/ FOX Adventure Series Rear Shocks | 3 Inch Rear Block | Zone Offroad

Front: OE strut spacer with crossmember — retains factory front struts while achieving the full 4-inch front lift height. Rear: FOX 2.0 Adventure Series rear shocks featuring an internal floating piston (IFP) monotube design, large 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving, and a long-lasting clear anodized finish. Rear block: 3-inch replacement lift block — levels the truck for a clean, aggressive stance.

Overview

The Zone Offroad 4-inch Lift Kit for the 2021–2026 Ford F-150 4WD delivers added ground clearance while maintaining everyday drivability. The system is built around precision-engineered, USA-made steering knuckles designed specifically for the 2021–2025 F-150 to properly correct suspension geometry at the taller ride height and maintain ESC system compliance. The kit includes heavy-duty crossmembers, a differential drop, sway bar drop brackets, a skid plate, rear lift blocks, and new U-bolts for a complete, properly engineered suspension upgrade. Front shock configurations allow you to retain the factory struts via OE strut spacers or opt for Zone Nitro loaded struts for a fully assembled replacement. Rear shock options include Zone Nitro or FOX 2.0 Adventure Series shocks. A choice of 2-inch or 3-inch rear lift blocks lets you fine-tune the truck's stance. The kit supports up to 35-inch tires and is compatible with Blue Cruise.

Features

• Optimizes ground clearance and improves off-road protection
• Maintains drivability and handling by correcting suspension, steering, and drivetrain geometry
• Redesigned steering knuckles specific to the 2021–2025 F-150 to maintain ESC system compliance
• USA-made precision-engineered steering knuckles
• 2-inch or 3-inch replacement rear lift blocks available to achieve desired stance without stacking blocks
• Includes Factory Protection Plus: ESC system compatibility, limited lifetime warranty, and 5-year/60,000-mile drivetrain warranty
• Allows clearance for 35-inch tires
• Compatible with Blue Cruise

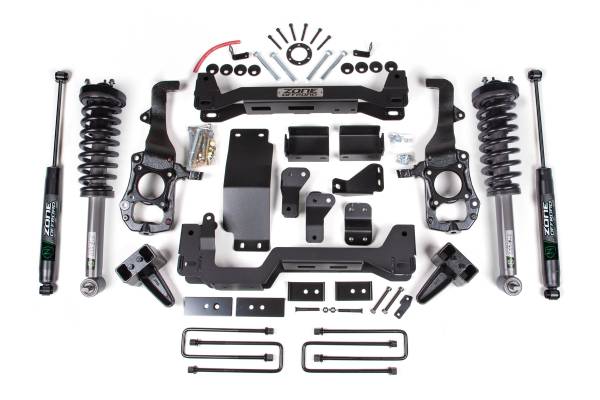

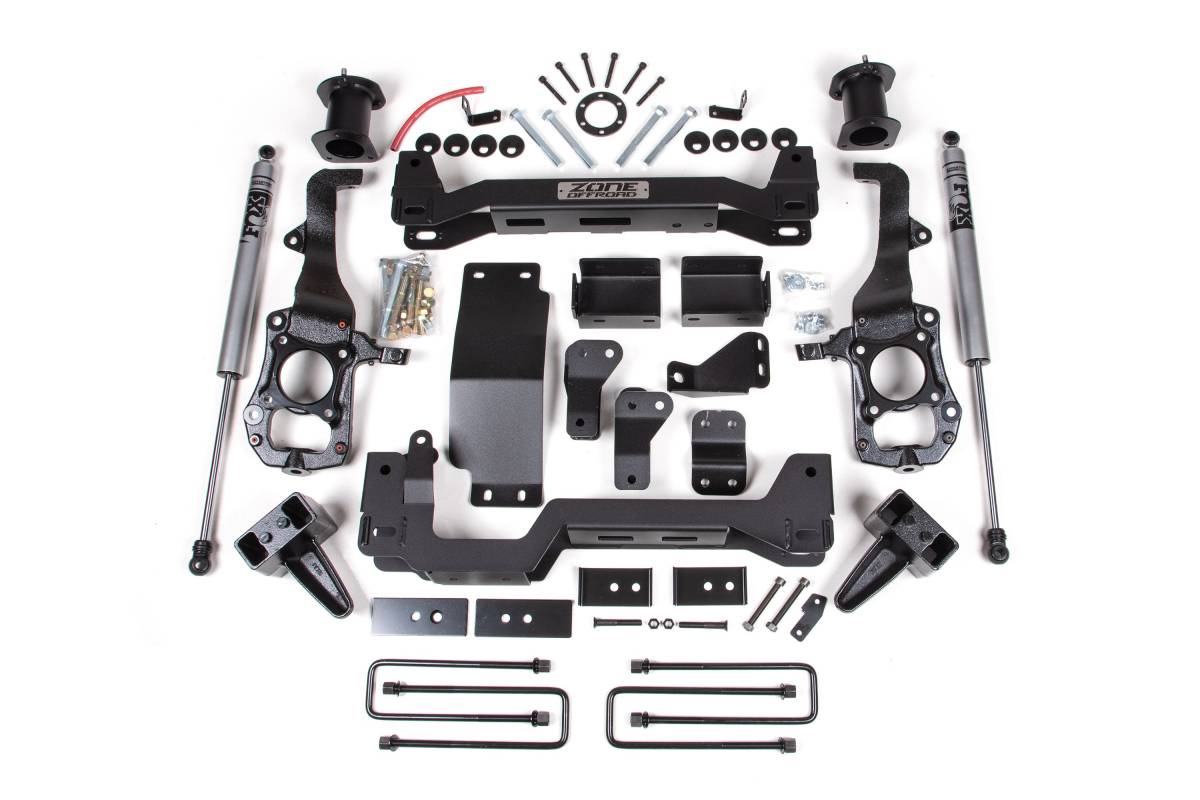

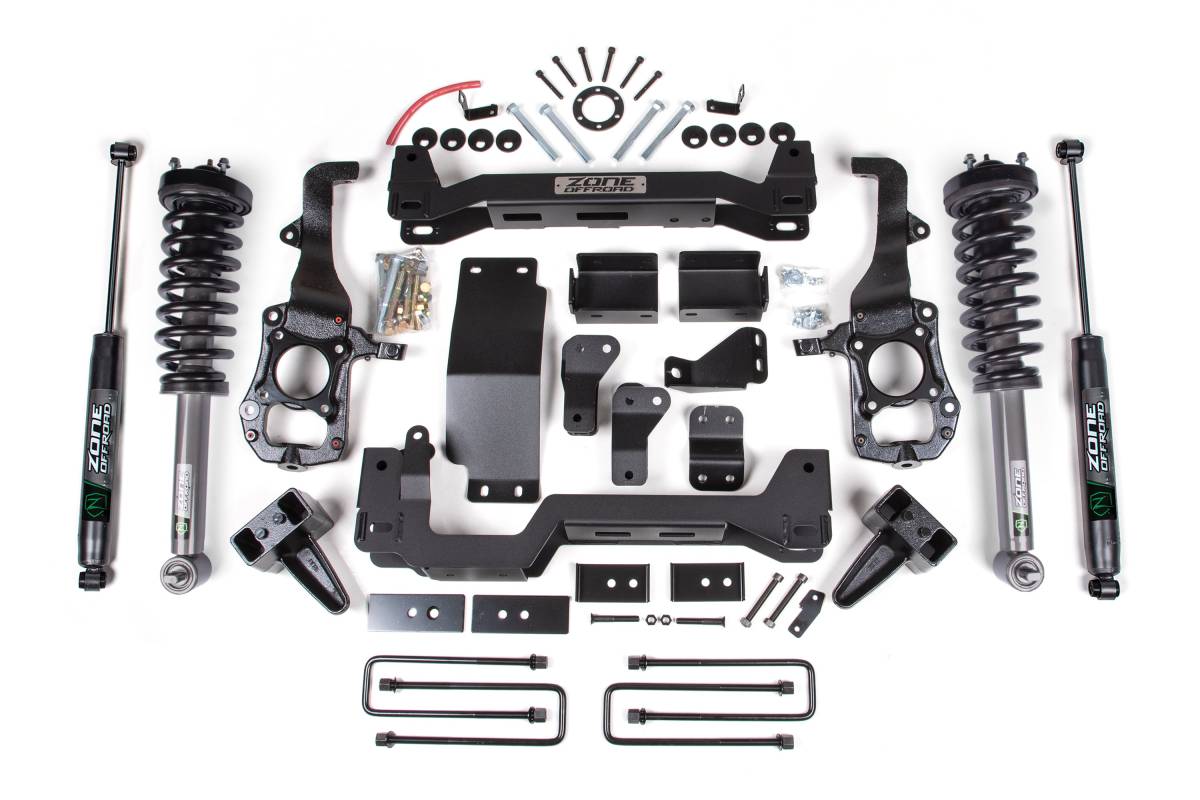

• Includes heavy-duty crossmembers, differential drop, sway bar drop brackets, skid plate, rear lift blocks, and new U-bolts

Specifications

• Front Lift Height: 4 inches
• Rear Lift Height: 2 inches or 3 inches (variant dependent)
• Front Lift Method: Cross Member & Strut Spacer (strut spacer variants) or Strut Replacement (loaded strut variant)
• Rear Lift Method: Block
• Shocks Included: Yes
• Lift Height Range: 4–5.5 inches

Installation

• Estimated Time: 8–10 hours
• Difficulty: Difficult

Important Notes

• Some trucks with a 2-piece drive shaft may have a recall from Ford regarding the rear drive shaft (Safety Recall 21S25). Zone Offroad recommends having this performed prior to installing the lift.
• Models with a 2-piece rear driveshaft WILL require carrier bearing shim kit D5405 (not included with kit).
• Block kits replace the factory 1-1/4-inch block. The stock block will not be reinstalled.
• Crash bars may require modification based on wheel and tire choice. It is the end user's responsibility to ensure modifications are non-detrimental to vehicle safety.
• Will not work with trucks equipped with CCD (Continuous Controlled Damping).
• Does not fit diesel models.
• Will not fit Tremor models.
• Requires frame bracket modification.
• Loaded Struts are recommended to use the 5-inch tall block for a level stance; the 4-inch block will result in a tail-low stance.
• Recalibration of your vehicle's Advanced Driver Assistance System (ADAS) cameras, radars, LiDAR, and other sensors may be necessary by your local dealership or ADAS service center. This will ensure proper functionality of features such as lane keeping, lane departure, parking assistance, blind-spot detection, adaptive cruise control, and other functions. All charges and expenses that may occur from dealership calibrations and adjustments are the sole responsibility of the vehicle owner.
• 18-inch or larger diameter wheels required. Stock 17-inch and 18-inch wheels cannot be reinstalled.
• Stock 20-inch wheels can be used with up to a 305/60R20 tire.
• 18-inch wheels with 5–5.5-inch backspacing should be test-fit prior to mounting the tire to ensure proper clearance to the steering knuckle/tie rod.
• 18–20-inch wheels with 5.5–5.75 inches of backspacing is highly recommended for tire-to-frame crash bar clearance.
• 37-inch tires will require crash bar modification.
