Configured with an OE-retained front strut setup using precision strut spacers paired with Zone Nitro Series rear shocks. Nitro shocks are nitrogen-charged with a twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends for increased strength, self-lubricating seals, black powder coat finish, and a 2-inch diameter steel body — delivering a comfortable ride with increased control over factory shocks.
- Front Lift Method: Cross Member & Strut Spacer
- Front Lift Height: 5"
- Rear Lift Method: Block
- Rear Lift Height: 3"
- Shocks Included: Yes
Overview

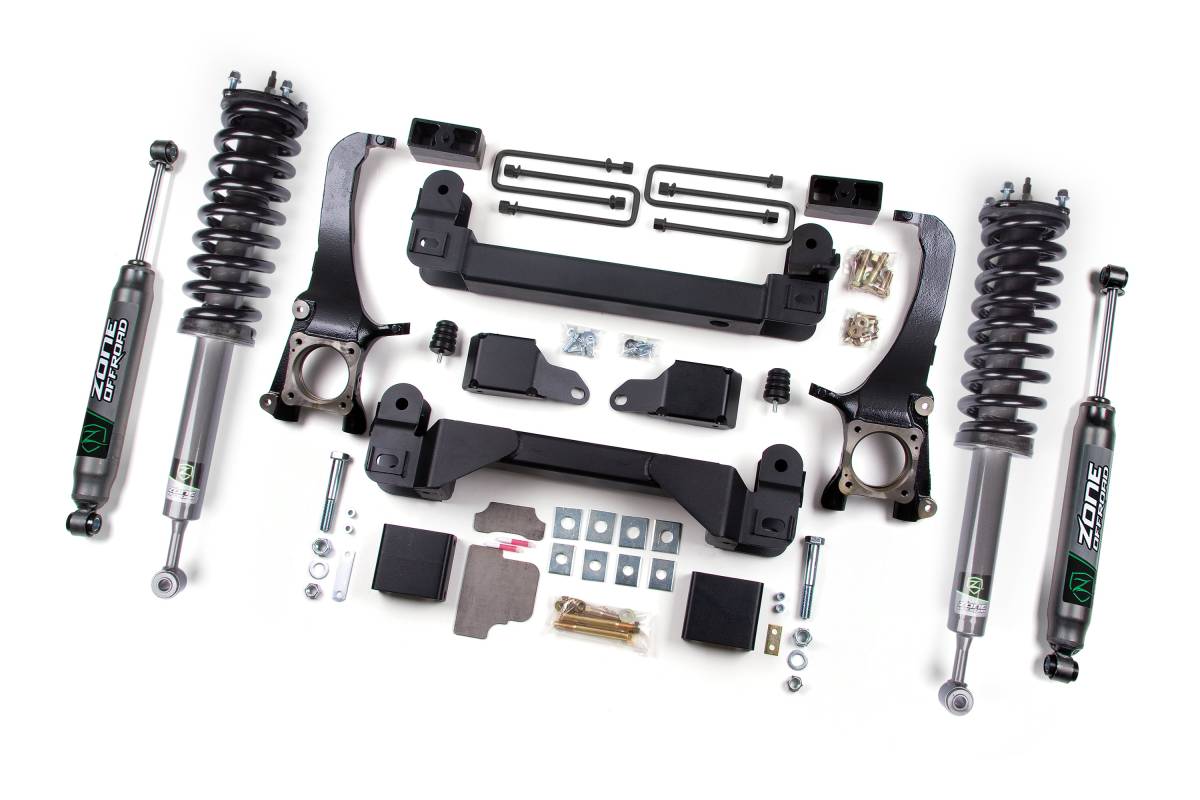

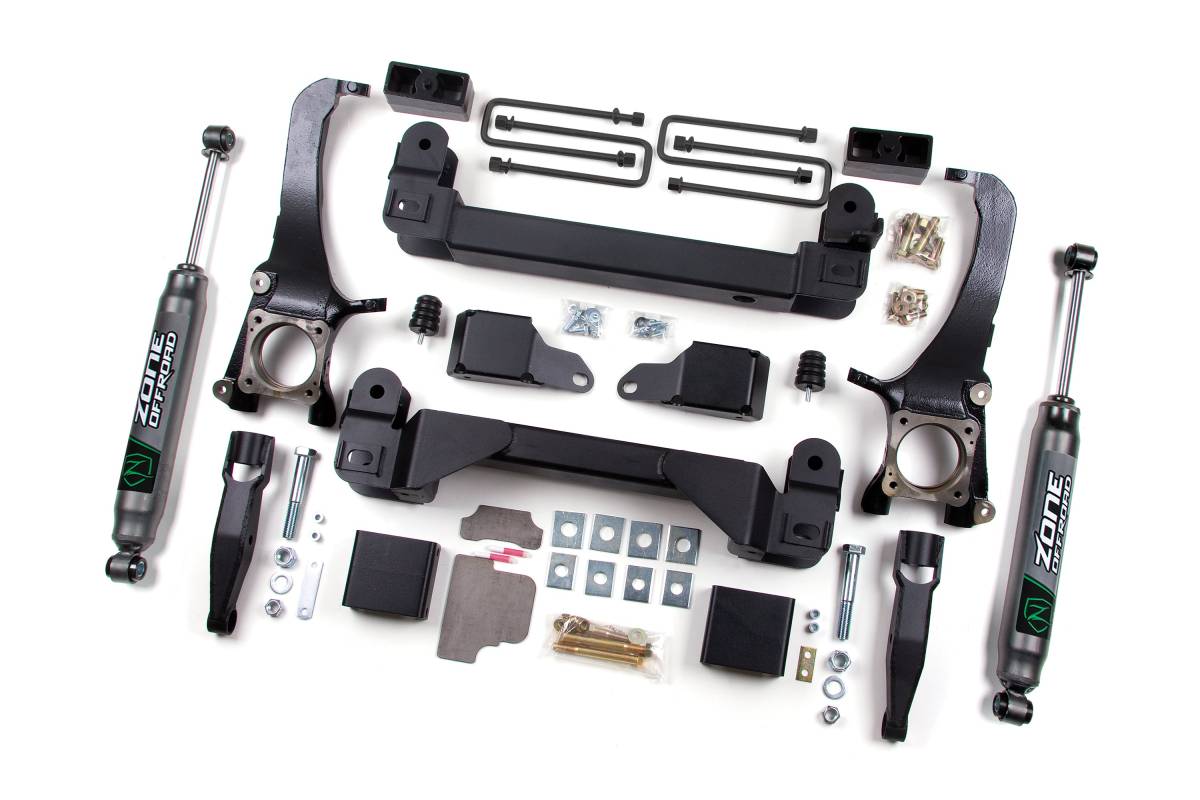

This 5-inch Lift Kit from Zone Offroad is designed specifically for 2007–2015 Toyota Tundra models intended to run 35-inch tires. The system provides the height and clearance many Tundra owners want while maintaining dependable handling and suspension geometry. At the core of the kit are precision cast steering knuckles made in the USA, designed to maintain proper steering angles while delivering the strength needed for both on-road driving and off-road use. High-clearance crossmembers maximize ground clearance while providing a solid mounting structure for the front suspension components. A front differential drop is included to reduce CV axle angles and promote long-term reliability after lifting. Sway bar drop brackets help keep the suspension operating correctly after installation, preserving ride quality and stability. In the rear, heavy-duty cast lift blocks provide the necessary lift height with improved durability compared to traditional fabricated blocks. This kit is available in multiple shock and strut configurations to match different performance needs and budgets.
Features
- High-strength crossmembers to correct lower control arm positioning
- Ductile iron steering knuckles to correct steering geometry and maintain ESC system compatibility
- Lower strut extensions to provide lift with easy installation
- Weld-in chassis plates add strength and rigidity
- Rear lift blocks and U-bolts to lift and level the stance
- Sway bar, brake line, and bump stop relocation brackets to correct operating angles
- Front differential drop included to reduce CV axle angles
- USA-made precision cast steering knuckles
Specifications
- Front Lift Height: 5"
- Rear Lift Height: 3"
- Rear Lift Method: Block
- Fits: 2007–2015 Toyota Tundra
- Designed for use with 35-inch tires
- Shocks Included: Yes (configuration varies by variant)
Installation
- Estimated Installation Time: 8 hours
- Installation Difficulty: Moderate
Important Notes
- Will NOT work on 2015 TRD Pro Models.
- Will work with Bilstein (yellow) factory front struts on 2014–2015 models.
- RWD models may require driveline modification.
- Two-piece rear drive shaft: Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid/eliminate driveshaft vibration.
- Models equipped with 6-piston calipers will require clearance machining on the caliper near the bolt holes on the mounting surface.
- Factory 18" wheels cannot be reinstalled with this kit due to steering interference.
- Factory 20" wheels with a maximum 6.25" backspacing can be used.
- Follow recommended wheel/tire specifications to ensure proper fitment and minimize the need for trimming.
