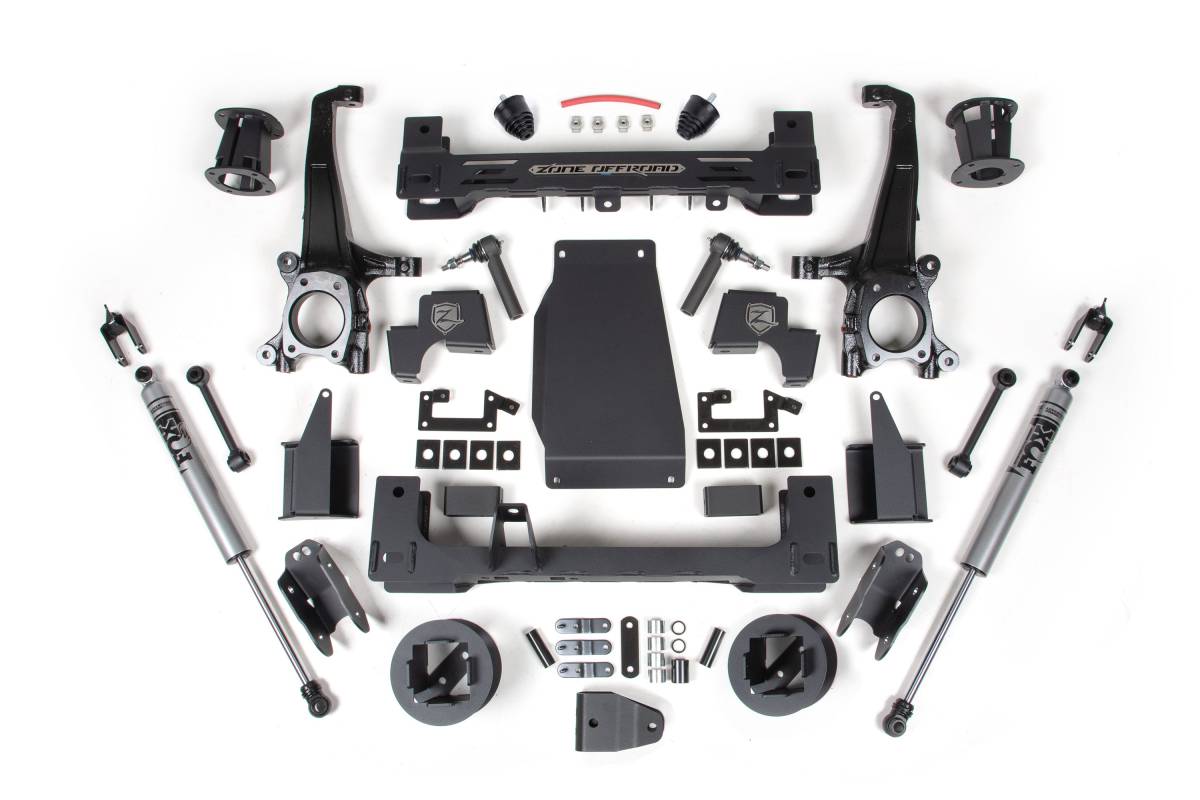

6 Inch Lift Kit | 2022-2026 Toyota Tundra 4WD | w/ FOX Adventure Series 2.0 Shocks | Zone Offroad

Configured with FOX Adventure Series 2.0 rear shocks featuring an internal floating piston (IFP) monotube design, large 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving, and a long-lasting silver coated finish.

Overview

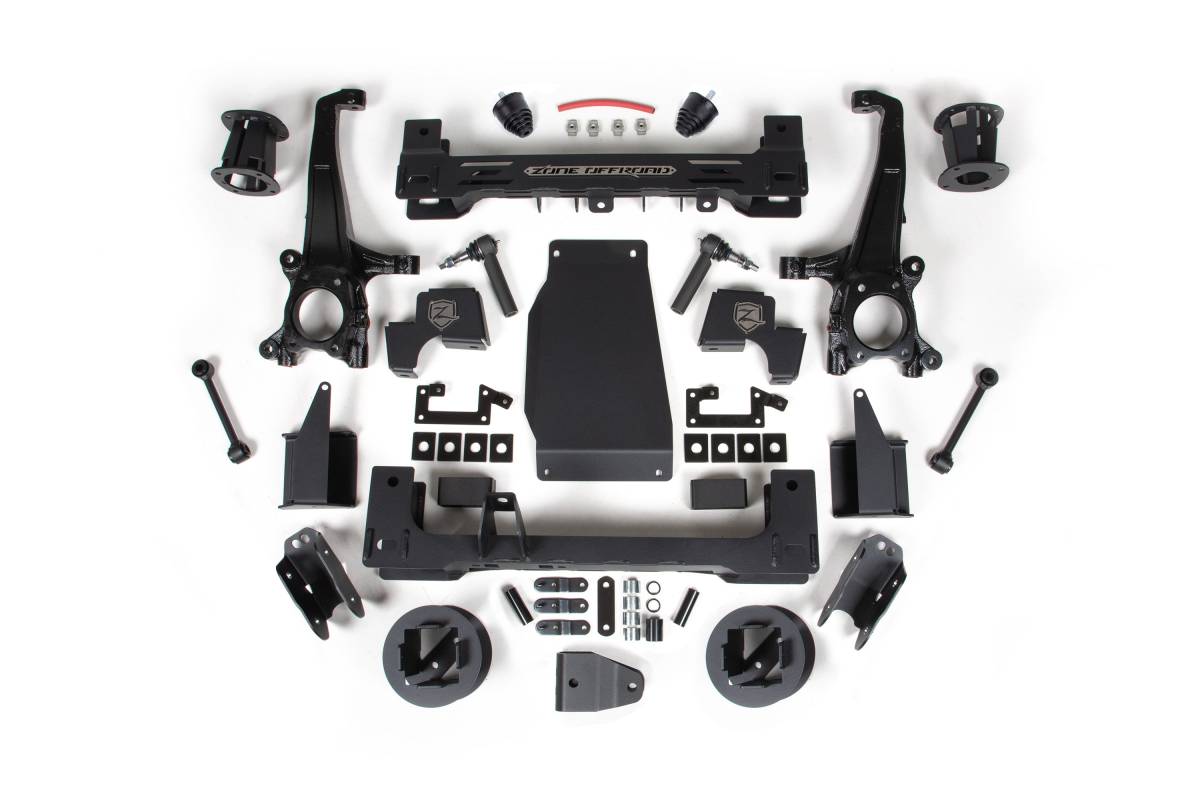

The Zone Offroad 6" Lift Kit is designed specifically for 2022–2026 Toyota Tundra 4WD models and manufactured in the USA. This kit delivers 6 inches of front lift while leveling the front and rear of the truck, providing enhanced ground clearance and fitment for 37-inch tires. Engineered to correct drivetrain geometry and eliminate common lift-related vibrations, the kit uses a bolt-in ready, fully welded strut spacer design to maintain factory ride quality and handling characteristics. Available with either Zone Nitro or FOX Adventure Series 2.0 rear shocks.

Features

• Provides 6 inches of front lift while leveling the front and rear of the truck
• Fits 37-inch tires
• Corrects suspension geometry while offering increased ground clearance
• Available with Zone Nitro or FOX Adventure Series 2.0 rear shocks
• High-strength steel cross members with skid plate — designed and manufactured in the USA
• Bolt-in ready, fully welded strut spacers maintain ride quality and handling characteristics
• Factory Protection Plus included

Specifications

• Front Lift Method: Cross Member & Strut Spacer
• Front Lift Height: 6"
• Rear Lift Method: Coil Spacer
• Rear Lift Height: 4.5"
• Total Lift Height Range: 6–7.5"
• Shocks Included: Yes

Installation

• Estimated Installation Time: 5 hours
• Installation Difficulty: Difficult
• Tools Required: 1-9/16 or 40mm 12-point Socket, 40mm Socket

Important Notes

• TRD Sport models will achieve the same amount of lift but will have a lower stance than other models in the front.
• Will not work with Adaptive Variable Suspension (AVS) System equipped vehicles.
• Will not work with Air Ride models.
• Will not work with TRD Pro models.
• For regular off-road use, it is recommended to upgrade Non TRD Off-Road truck half axles (CVs) to Toyota TRD units (Driver Part# 434200C020, Passenger Part# 434100C020). Does not apply to TRD Pro models.
• The ADAS system in some vehicles needs to be recalibrated by a certified shop. The vehicle may warn the driver of potential collisions from lower bridges, overhead signs/wires, and signs in windy conditions. Most windshield repair shops (Safelite) and dealerships are capable of performing this recalibration.
