Configured for trucks with a factory overload spring (3-leaf main spring pack), paired with Nitro Series shocks featuring an internal floating piston (IFP) monotube design, large 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving, and a clear anodized finish.
- Front Lift Method: Coil Spring & Radius Arm | Front Lift Height: 6"
- Rear Lift Method: Block & Add-A-Leaf | Rear Lift Height: 5"
- Shocks Included: Yes
Overview

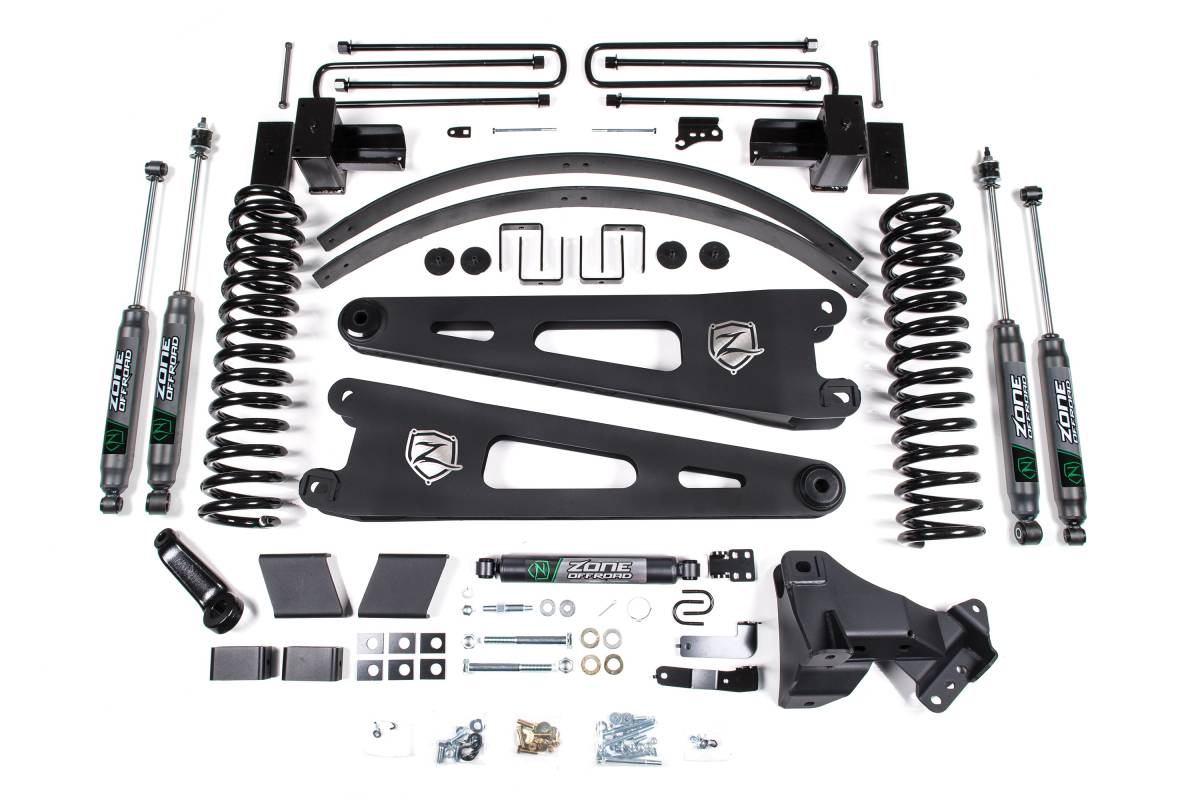

This 6-inch lift kit from Zone Offroad is designed for 2017–2019 Ford F-250/F-350 Super Duty 4WD Diesel (SRW) trucks. The kit includes full-length coil springs, stout radius arms, steering correction components, and rear lift hardware to lift and level the stance. It provides clearance for up to 38-inch tires.
Features
- High-strength front coil springs improve ride quality
- HD radius arm corrects caster while maximizing ground clearance
- Forged pitman arm and track bar relocation bracket correct steering angles and recenter the front axle
- Bump stop relocation, sway bar relocation, and brake line relocation maintain factory-like operating angles
- Replacement rear lift blocks, add-a-leafs, and u-bolts lift and level the stance
Specifications
- Front Lift Method: Coil Spring & Radius Arm
- Front Lift Height: 6"
- Rear Lift Method: Block & Add-A-Leaf
- Rear Lift Height: 5"
- Shocks Included: Yes
Installation
- Estimated Installation Time: 7 hours
- Installation Difficulty: Moderate
Important Notes
- Diesel model only.
- Check your rear springs to determine if your truck is equipped with a standard 2-leaf main spring pack or a heavy payload 3-leaf main spring pack with an overload spring; see the "Learn More" image for help selecting the correct kit variant.
- Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid or eliminate driveshaft vibration.
- Fits SRW (Single Rear Wheel) models only.
- 38x13.50 tires may require minor trimming.
- Factory wheels fit when paired with factory/original equipment tire size.
