6 Inch Lift Kit | Ford F250/F350 Super Duty 4WD Diesel (2017-2019) | Block Kit Without Factory Overload | Nitro Series Shocks | Zone Offroad

Configured for trucks without a factory overload spring (2-leaf main spring pack), paired with Nitro Series shocks featuring an internal floating piston (IFP) monotube design, large 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving, and a clear anodized finish.

• Front Lift Method: Coil Spring & Radius Arm | Front Lift Height: 6"
• Rear Lift Method: Block & Add-A-Leaf | Rear Lift Height: 5"
• Total Lift Height Range: 6"–7.5"
• Shocks Included: Yes

Overview

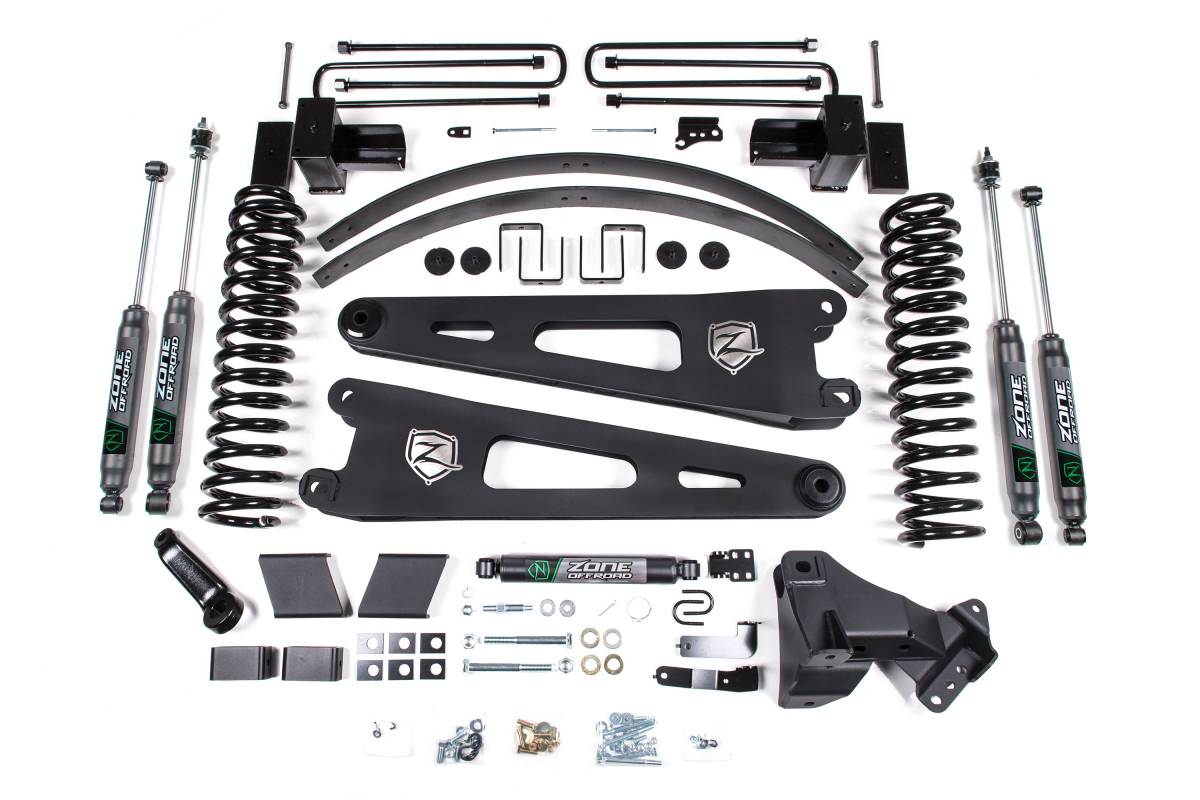

This 6-inch lift kit from Zone Offroad is designed for 2017–2019 Ford F-250/F-350 Super Duty 4WD Diesel (SRW) trucks. The kit includes full-length coil springs, stout radius arms, steering correction components, and rear lift hardware to lift and level the stance. It provides clearance for up to 38-inch tires.

Features

• High-strength front coil springs improve ride quality
• HD radius arm corrects caster while maximizing ground clearance
• Forged pitman arm and track bar relocation bracket correct steering angles and recenter the front axle
• Bump stop relocation, sway bar relocation, and brake line relocation maintain factory-like operating angles
• Replacement rear lift blocks, add-a-leafs, and u-bolts lift and level the stance

Specifications

• Front Lift Method: Coil Spring & Radius Arm
• Front Lift Height: 6"
• Rear Lift Method: Block & Add-A-Leaf
• Rear Lift Height: 5"
• Shocks Included: Yes

Installation

• Estimated Installation Time: 7 hours
• Installation Difficulty: Moderate

Important Notes

• Diesel model only.
• Check your rear springs to determine if your truck is equipped with a standard 2-leaf main spring pack or a heavy payload 3-leaf main spring pack with an overload spring; see the "Learn More" image for help selecting the correct kit variant.
• Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid or eliminate driveshaft vibration.
• Fits SRW (Single Rear Wheel) models only.
• 38x13.50 tires may require minor trimming.
• Factory wheels fit when paired with factory/original equipment tire size.
