This configuration includes no rear shocks. Rear lift is achieved via a block for 1" of rear lift height. Ideal for those retaining or separately sourcing rear shocks.
Overview

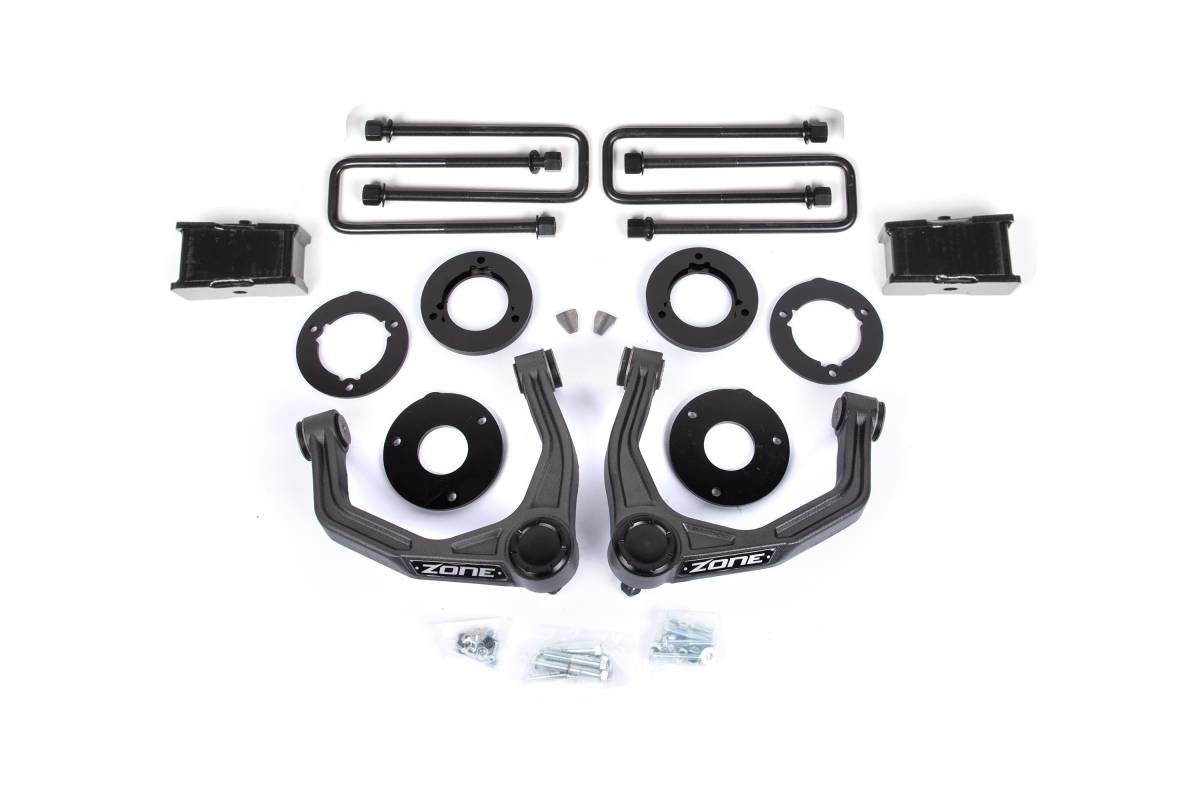

Specially designed for the 2019–2024 Chevy Silverado / GMC Sierra 1500 AT4 and Trail Boss trucks, these lift kits are engineered to work within the parameters of the factory suspension and steering geometry to maximize potential while allowing optimal clearance for larger tires. Kits include strut spacers, Adventure Series upper control arms, hardware packs, and steering stop extensions.
Features
- 3-piece strut spacer design with top mount spacer and 2 preload spacers raises ride height without over-extending suspension during droop travel
- High-strength Adventure Series upper control arms allow more travel, increase strength, and correct geometry issues associated with kits that retain factory UCAs
- Maintains ride quality and handling characteristics
- Allows clearance for 33–34" tires
- Includes Factory Protection Plus
Specifications
- Front Lift Method: Strut Spacer & Upper Control Arm
- Front Lift Height: 1.75"
- Rear Lift Method: Block
- Rear Lift Height: 1"
- Lift Height Range: 0–1.5"
Installation
- Estimated Time: 3–4 hours
- Difficulty: Moderate
- Tools Required: Cut Off Wheel or equivalent, Strut Compressor, Welding Equipment
Important Notes
- Control arms typically add 1–2 degrees caster above stock alignment specifications.
- All aftermarket wheels should be test fit prior to mounting the tire to ensure proper clearance to the brake caliper. Some wheel profiles will not clear the brake caliper. These can be test fitted before the vehicle is lifted.
- For replacement ball joints use service kit ZONF8202. Ball joint is directional and must be installed with the ‘dot’ facing either inward or outward on the vehicle, otherwise damage may occur.
- This kit will NOT fit AT4X or ZR2 models with Multimatic Shocks.
- Stock wheels and tires will require a 1/4" wheel spacer to clear the upper control arm.
- Chevy compatible tire/wheel fitments:
- 295/60 20x9 w/ 6.18–5.5" BS
- 35/12.50 18x9 w/ 20x9; 5.5" BS *
- 285/55 20x9; 285/60 18x9; 285/65 17x9 w/ 6.18–4.5" BS *
- 285/60 20x9; 285/70 18x9; or 285/75 17x9 w/ 6.18" to 5.5" BS
- GMC compatible tire/wheel fitments:
- 295/55 20x9 w/ 6.18–5.5" BS
- 33/12.50 18x9 w/ 20x9; 5.5" BS **
- 295/60 20x9 w/ 6.18–5.5" BS **
- 285/55 20x9; 285/60 18x9; 285/65 17x9 w/ 6.18–4.5" BS *
- 285/60 20x9; 285/70 18x9; or 285/75 17x9 w/ 6.18" to 5.5" BS
