3 Inch Lift Kit | Jeep Cherokee XJ (1984-2001) | Chrysler 8.25 Rear Axle | Nitro Series Shocks | Zone Offroad

Configured for the Chrysler 8.25 rear axle (3-inch I.D. U-bolts included) and paired with Nitro Series shocks featuring an internal floating piston (IFP) monotube design, large 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving, and a long-lasting clear anodized finish.

Overview

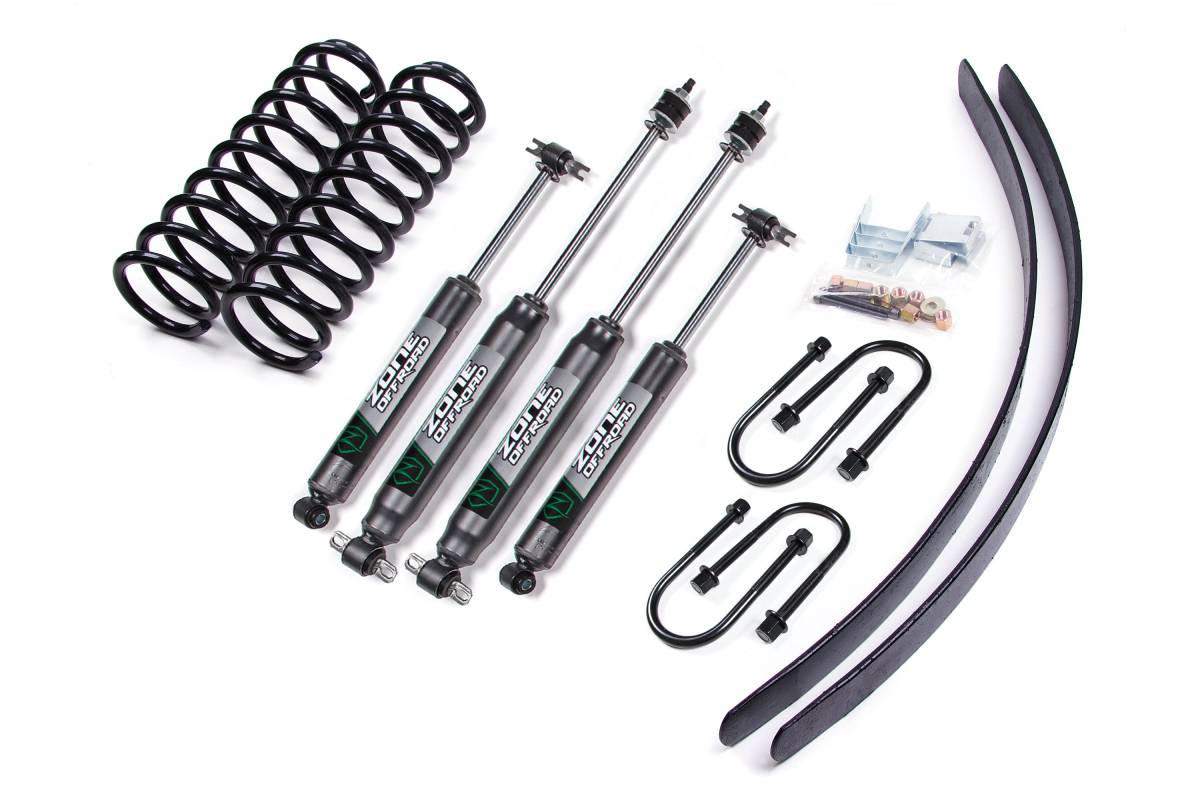

This 3-inch Combo Lift Kit is designed for 4WD 1984–2001 Jeep Cherokee (XJ) models. The kit includes front coil springs, four shocks, and two long Add-A-Leafs to raise ride height and refresh the rear suspension while leveling the stance.

Features

• Front 3-inch coil springs lift ride height, offer improved ride quality, and enhance articulation
• Rear long Add-A-Leafs level the stance and freshen up the rear suspension
• New center pins, clamps, and replacement U-bolts included for the rear
• Four shocks included (shock option selected at purchase)

Specifications

• Front Lift Method: Coil Spring
• Front Lift Height: 3 inches
• Rear Lift Method: Add-A-Leaf
• Rear Lift Height: 2.5 inches
• Shocks Included: Yes

Installation

• Estimated Installation Time: 5 hours
• Installation Difficulty: Moderate

Important Notes

Check Rear Axle Diameter: The XJ was manufactured with different rear axles. You'll need to identify yours to complete an order. To tell the difference, measure the inner diameter (I.D.) of your rear U-bolts. The Chrysler 8.25 rear axle uses a 3" I.D. U-bolt and the Dana 35 rear axle requires a 2-3/4" I.D. U-bolt.

Driveline: 1" transfer case drop kit recommended when using stock driveline to maintain the factory driveline angle.
