Configured for the Dana 35 rear axle (2-3/4-inch I.D. U-bolt) and includes Nitro Series shocks featuring an internal floating piston (IFP) monotube design, a large 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving, and a long-lasting clear anodized finish.
Overview

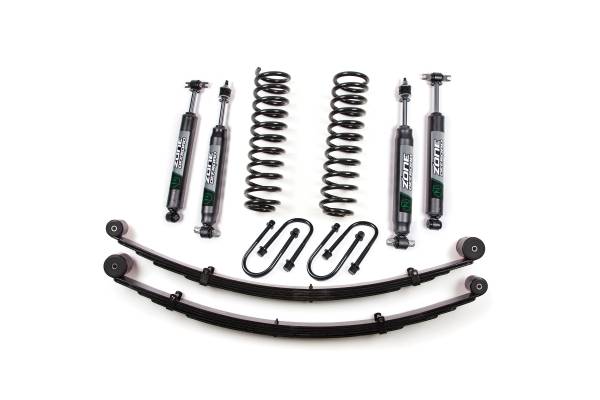

This 3-inch lift kit is designed for 4WD 1984–2001 Jeep Cherokee (XJ) models. The kit includes heavy-duty front coil springs and rear leaf springs engineered to provide optimal wheel travel for off-road use.
Features
- Full-length replacement coil springs add ride height while maintaining ride quality
- Heavy-duty replacement rear leaf springs provide lift and ride quality
- High-strength, black e-coated U-bolts included
- Shocks included with all configurations
Specifications
- Front Lift Method: Coil Spring
- Front Lift Height: 3 inches
- Rear Lift Method: Leaf Spring
- Rear Lift Height: 3 inches
- Shocks Included: Yes
Installation
- Estimated Installation Time: 5 hours
- Installation Difficulty: Moderate
Important Notes
- Leaf springs are not designed for excess additional cargo weight; lower ride height may result.
- Check Rear Axle Diameter: The XJ was manufactured with different rear axles. You'll need to identify yours to complete an order. To tell the difference, measure the inner diameter (I.D.) of your rear U-bolts. The Chrysler 8.25 rear axle uses a 3-inch I.D. U-bolt and the Dana 35 rear axle requires a 2-3/4-inch I.D. U-bolt.
- Driveline: A 1-inch transfer case drop kit is recommended when using the stock driveline to maintain the factory driveline angle.
