Configured with Nitro Series shocks featuring an internal floating piston (IFP) monotube design, a large 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving, and a long-lasting clear anodized finish.
Overview

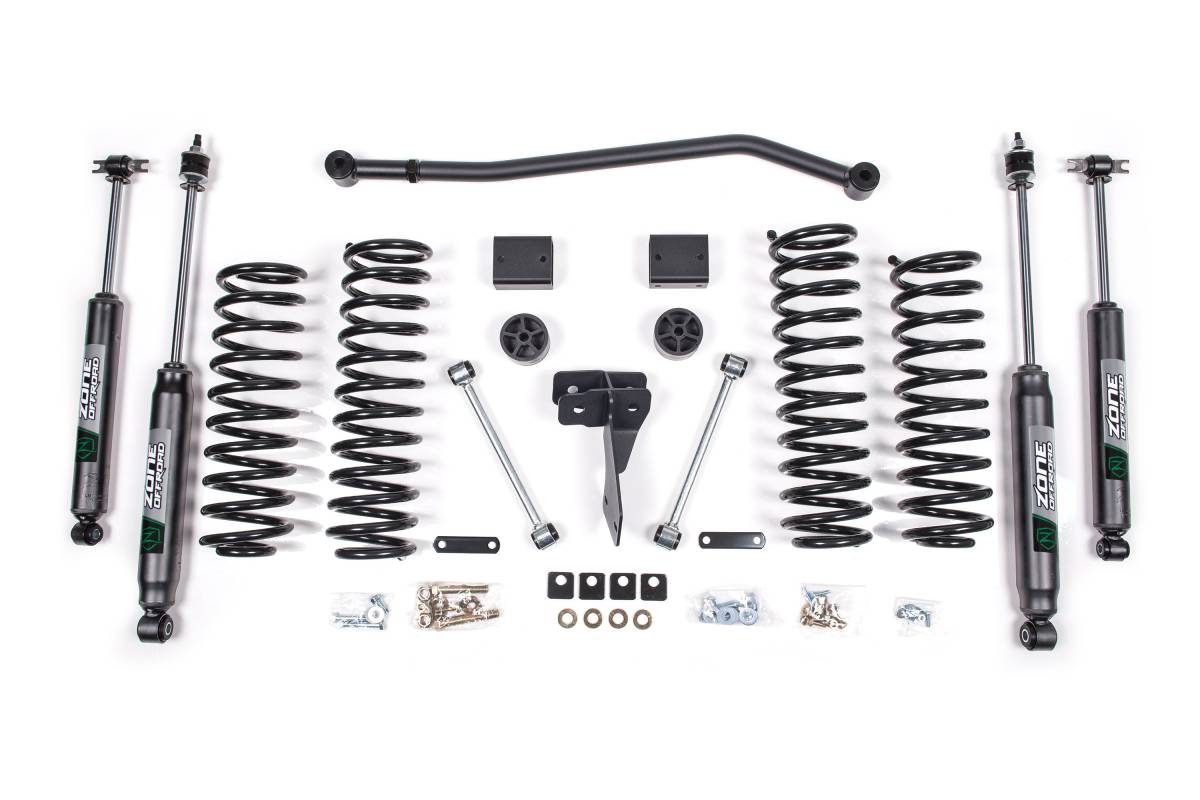

This 4-inch suspension lift kit is designed for 2-door, 4WD 2007–2011 Jeep Wrangler (JK) models. It provides the ground clearance and wheel travel needed for off-road use while maintaining on-road handling. The kit is engineered to accommodate 35-inch tires.
Features
- Brake line relocation brackets increase wheel travel and allow use of factory brake lines
- Bump stop extensions properly limit up-travel, protecting the vehicle
- Full-length replacement coil springs add ride height while maintaining ride quality
- Heavy-duty, adjustable front track bar re-centers the front axle and adds strength
- Heavy-duty, extended-length sway bar links improve operating angle for reduced body roll
- Lower cam washers correct axle caster for front-end alignment
- Rear track bar bracket correctly positions the rear axle under the vehicle
Specifications
- Front Lift Method: Coil Spring
- Front Lift Height: 4 inches
- Rear Lift Method: Coil Spring
- Rear Lift Height: 4 inches
- Shocks Included: Yes
Installation
- Estimated Installation Time: 4.5 hours
- Installation Difficulty: Moderately Easy
Important Notes
- 2012–2018 models using the stock front driveshaft require exhaust extension kit J5305.
- Factory wheels cannot be reinstalled with this lift kit due to rear sway bar interference.
- Follow recommended wheel/tire specifications for proper clearance.
