Includes Nitro Series shocks featuring an internal floating piston (IFP) monotube design, a large 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving, and a long-lasting clear anodized finish.
Overview

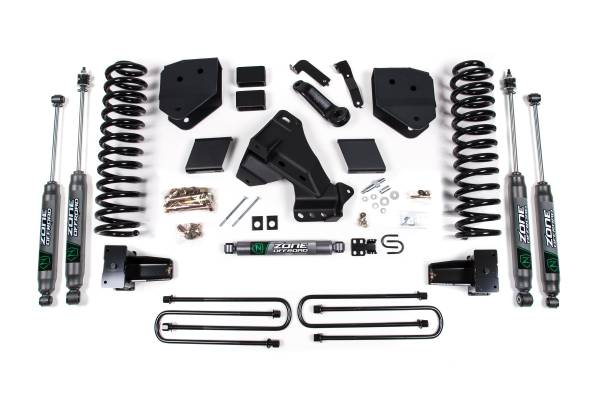

Zone Offroad's 7-inch standard lift kits for the 2020–2022 Ford F250/F350 Super Duty 4WD (Gas) use full-length coil springs, high-strength radius arm relocation brackets, and steering and sway bar correction components to raise ride height and level the vehicle's stance. A 5-year/60,000-mile drivetrain warranty is included.
Features
- High-strength radius arm drop brackets to correct suspension geometry
- Forged pitman arm to correct steering angles
- Heavy-duty fabricated track bar relocation bracket to re-center the front axle
- Full-length gas-specific coil springs for a smooth ride
- Shocks included (choice of shock option at purchase)
Specifications
- Front Lift Method: Coil Spring & Drop Bracket
- Front Lift Height: 7"
- Rear Lift Method: Block
- Rear Lift Height: 5"
- Shocks Included: Yes
- Drivetrain Warranty: 5 years / 60,000 miles
Installation
- Estimated Installation Time: 4–6 hours
- Installation Difficulty: Moderate
- Tools Required: Standard wrenches
Important Notes
- GAS MODELS ONLY.
- Front exhaust modification may be required to clear the front drive shaft.
- Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid/eliminate driveshaft vibration.
- Some trucks with a rear driveline vibration may have a recall from Ford regarding the rear axle (Safety Recall 21S31). Zone recommends having this recall procedure performed prior to installing the lift.
- Fits SRW (Single Rear Wheel) models only.
- 37x12.50 tires may require minor trimming.
- Factory wheels fit when paired with factory/original equipment tire size.
