4 Inch Lift Kit | Ford F250/F350 Super Duty (2017-2019) 4WD Diesel | Block Kit With Factory Overload | Nitro Series Shocks | Zone Offroad

Designed for trucks with a heavy payload 3-leaf main rear spring pack with factory overload. This is kit #F50. Shocks included: Nitro Series — internal floating piston (IFP) monotube design with a large 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving, and a clear anodized finish.

Overview

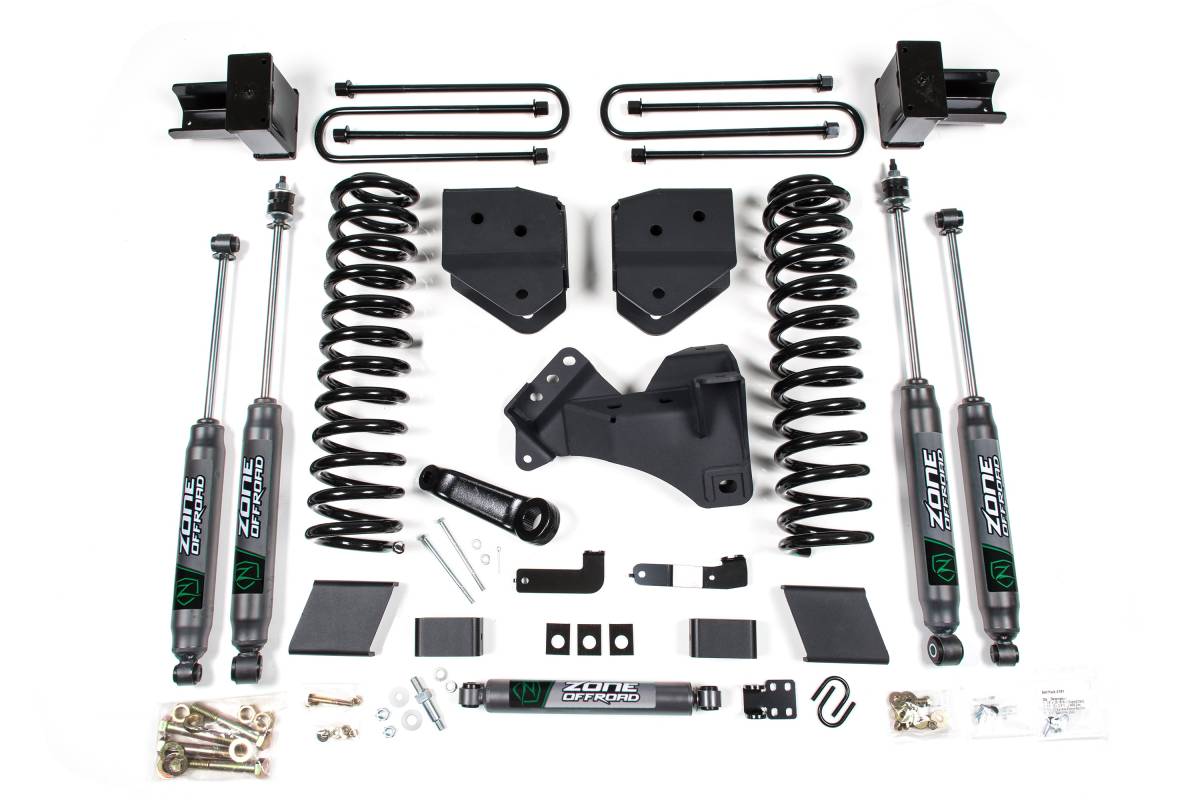

This 4-inch lift kit from Zone Offroad is designed for 2017–2019 Ford F250/F350 Super Duty 4WD Diesel trucks. The kit includes full-length coil springs, radius arm relocation brackets, steering correction components, and rear lift blocks to level the stance. It provides clearance for 37-inch tires while maintaining proper suspension geometry throughout.

Features

• High-strength front coil springs to improve ride quality
• Radius arm drop brackets to correct caster and maintain suspension geometry
• Forged pitman arm and track bar relocation bracket to correct steering angles and recenter the front axle
• Bump stop relocation, sway bar relocation, and brake line relocation to maintain factory-like operating angles
• Replacement 5-inch rear lift blocks and u-bolts to lift and level the stance

Specifications

• Front Lift Method: Coil Spring & Drop Bracket
• Front Lift Height: 4 inches
• Rear Lift Method: Block
• Rear Lift Height: 3 inches
• Shocks Included: Yes

Installation

• Estimated Time: 5 hours
• Difficulty: Moderately Easy

Important Notes

Determine if your truck is equipped with standard (2-leaf main) or heavy payload (3-leaf main w/ overload) factory rear leaf spring packs. Standard 2-leaf main applications will require kit # F48; heavy payload 3-leaf main w/ overload applications will require kit # F50. See the "learn more" example image for reference.

Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid/eliminate driveshaft vibration. Fits SRW models only. 37x12.50 tires may require minor trimming. Factory wheels fit when paired with factory/original equipment tire size.
